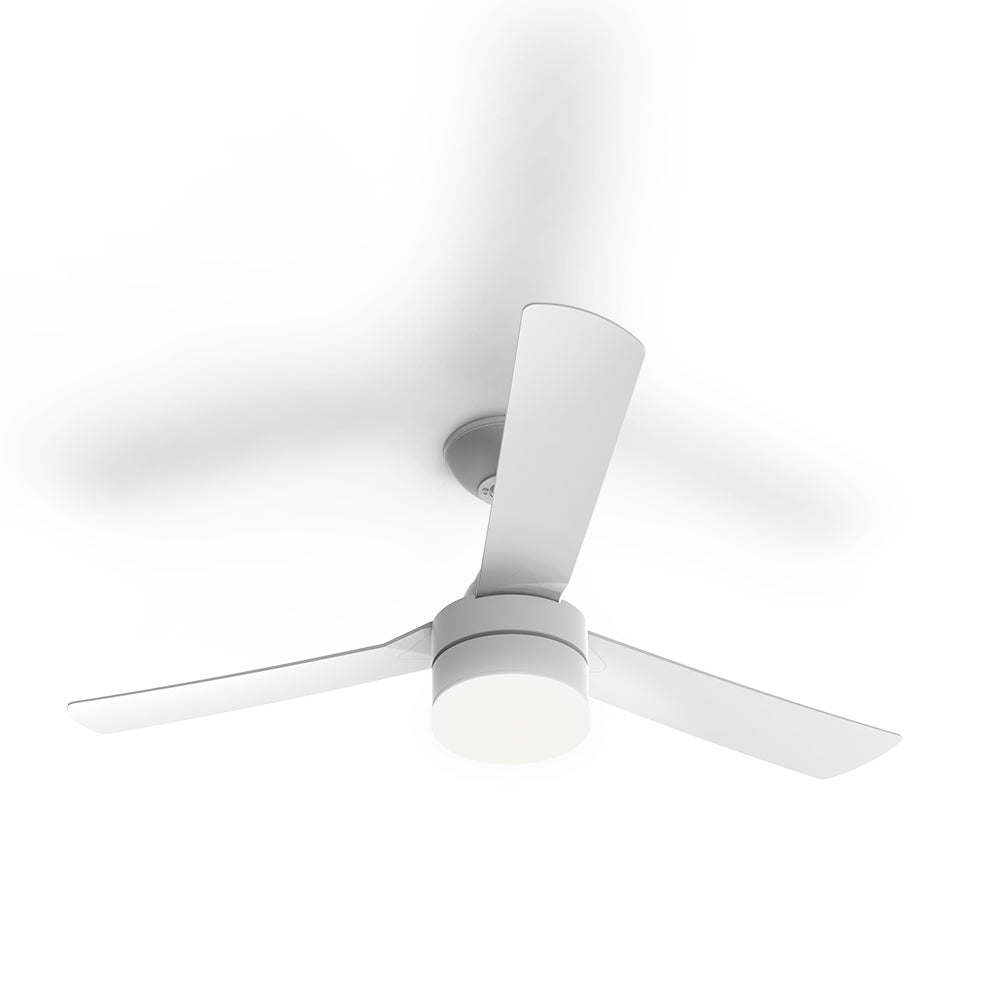

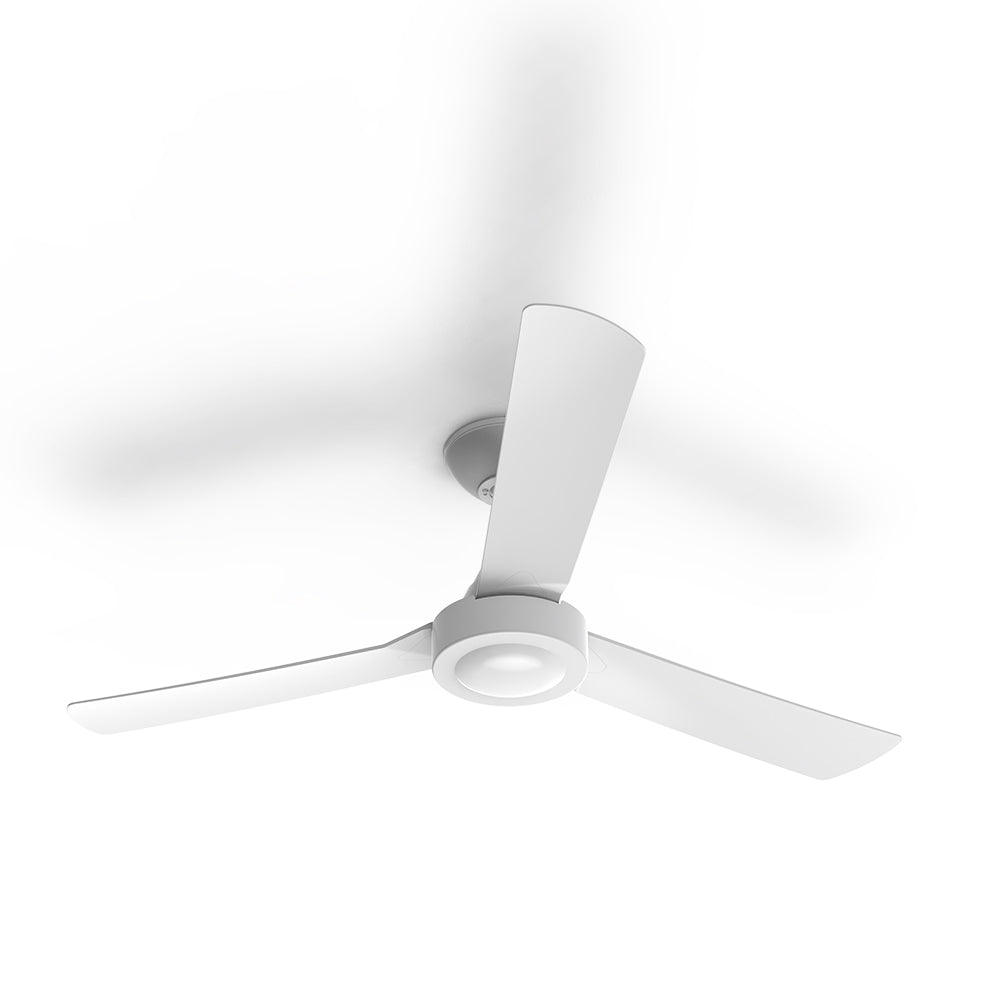

Atom Lighting Ceduna
SKU CEDUNA/48/LT/WH
3 blade 45W AC ceiling fan
- Efficient 45W AC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Suitable for indoor and covered outdoor applications
- Metal body and canopy with 3 reinforced ABS blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use
- Compatible with Atom Air ceiling fan remote control ACREMOTE/KIT (sold separately)
- 3 speed wall controller
Selected Models
- 16W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K
Specification
Mechanical
| Body Material |
Metal |
| Fitting Colour |
Satin White |
| IP Rating |
IP20 |
Electrical
| Electrical Rating |
Class I |
| Input Frequency |
50 Hz |
| Input voltage |
230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% |
| Working Temp Range |
-10 to 40 °C |
Air Movement
| Motor Wattage |
45 W |
| Motor Type |
AC |
| No. Speeds |
3 |
| Control |
Wall control |

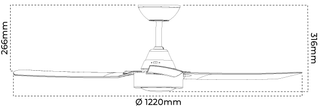

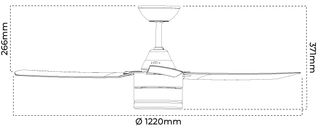

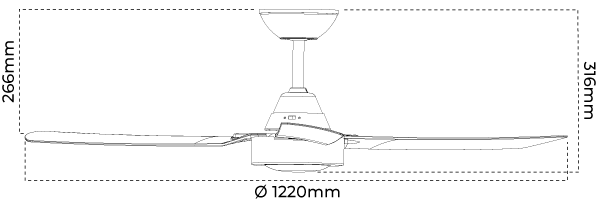

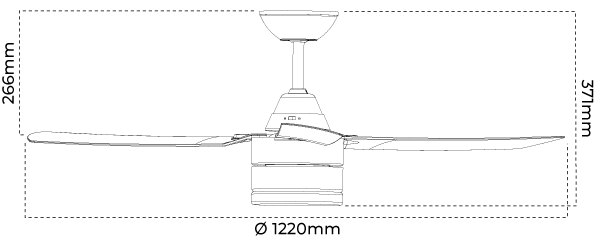

| Ceiling Rake |
15 ° |
| Ceiling Drop |
270 mm |
| Blade Pitch |
9 ° |
| Blade Material |
ABS |
| Fan Size |
1220mm (48inch) |
| Fan Speed 1 |
45 W, 245 rpm, 9300 m³/h |
| Fan Speed 2 |
37 W, 170 rpm, 7800 m³/h |
| Fan Speed 3 |
20 W, 110 rpm, 5700 m³/h |
Compliance
| Standards |
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS CISPR 14
|
Warranty
| Domestic Use Warranty |
4 Onsite, 2 RTB (Total 6 years) |
