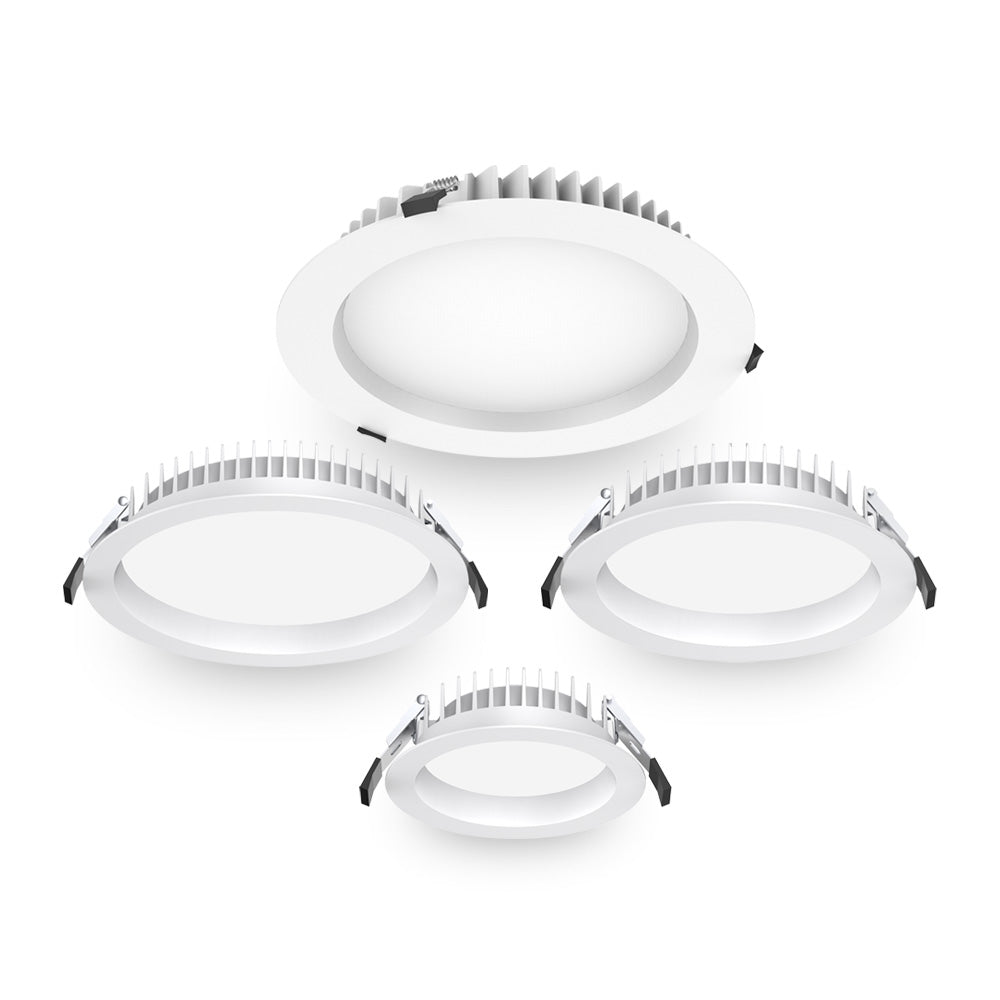

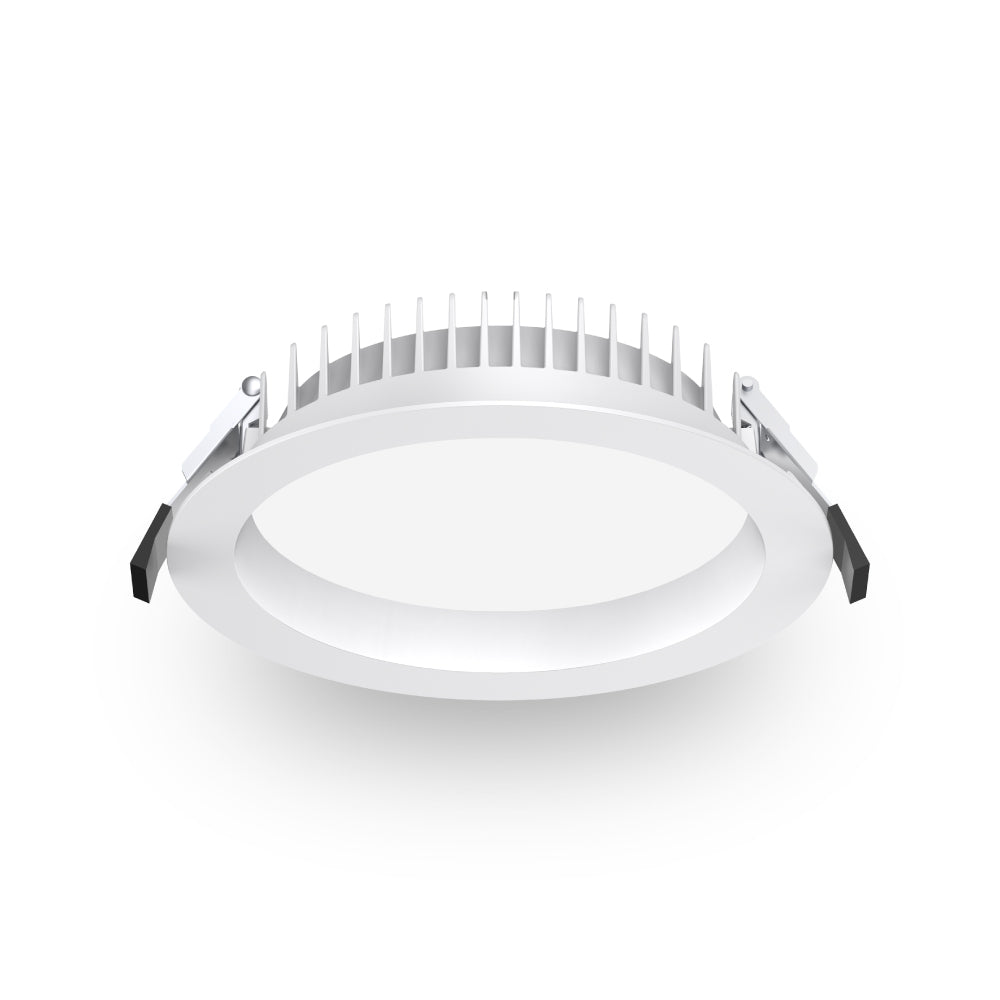

12-35W Commercial LED Downlight Dimmable Tri-colour
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Product Finish | Powdercoated |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP54 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 25 W |
| Switch Type | Inline |
| Working Temp Range | -20 to 40 °C |
Lamp
| Beam Angle | 90 ° |
|---|---|
| CCT Configuration | TRI-CCT |
| CRI | >80 |
| Lamp/LED Current | 580 mA |
| Lamp/LED voltage | 36 V |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 9000 hrs |
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Dimmable ( Phase cut) |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
| VEU Approval | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|

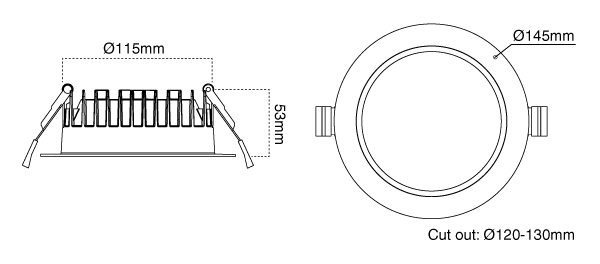

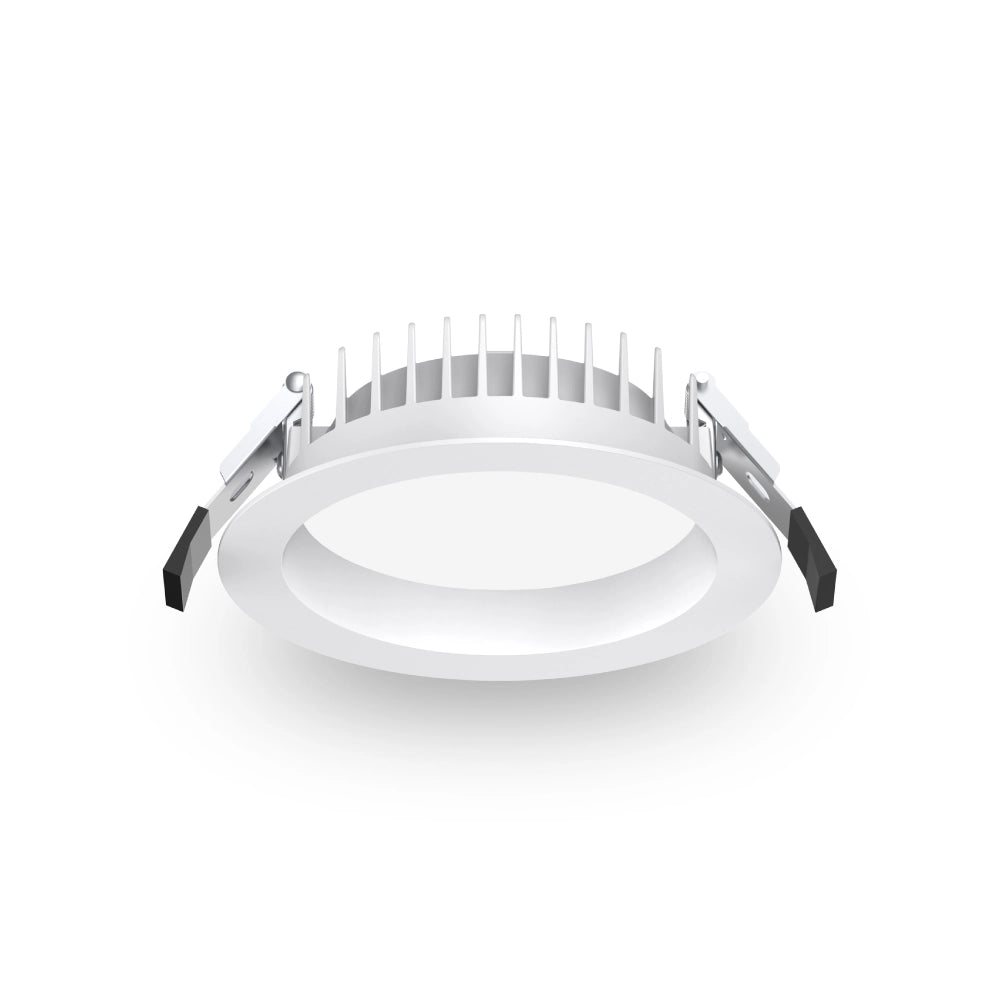

| 12789 | AT9045/WH/TRI | 12W LED downlight with dimmable driver - Tri-CCT - White |
|

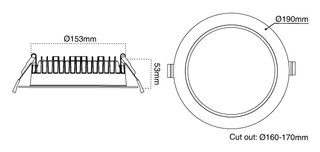

| 12790 | AT9046/WH/TRI | 18W LED downlight with dimmable driver - Tri-CCT - White |
|

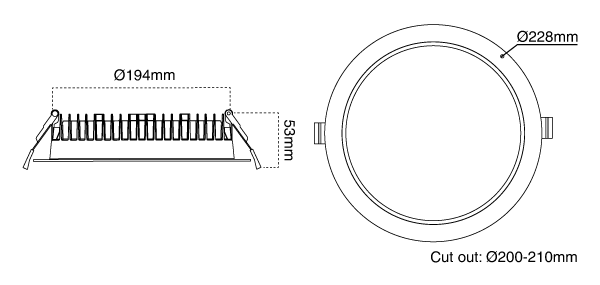

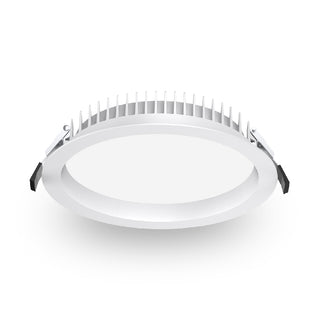

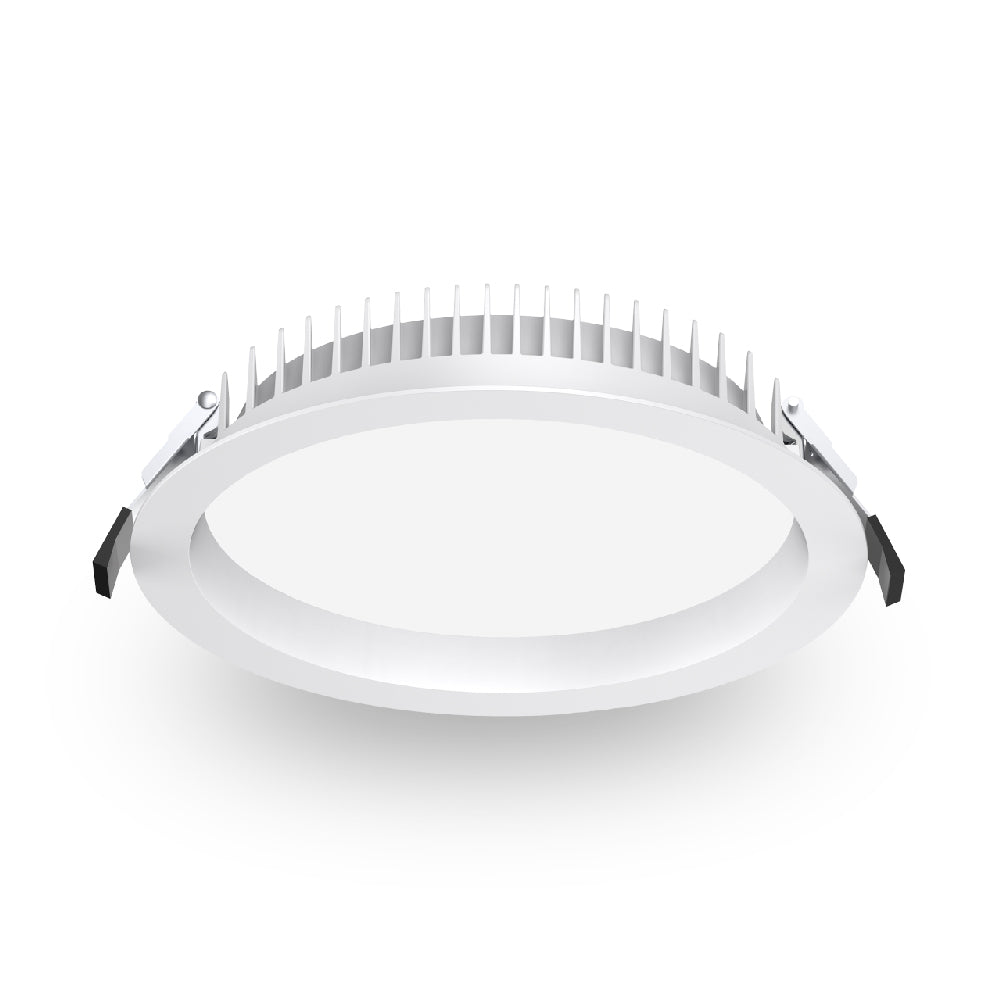

| 12791 | AT9047/WH/TRI | 25W LED downlight with dimmable driver - Tri-CCT - White |
|

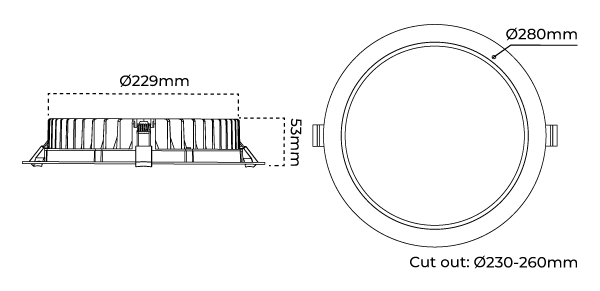

| 12792 | AT9048/WH/TRI | 35W LED downlight with dimmable driver - Tri-CCT - White |
