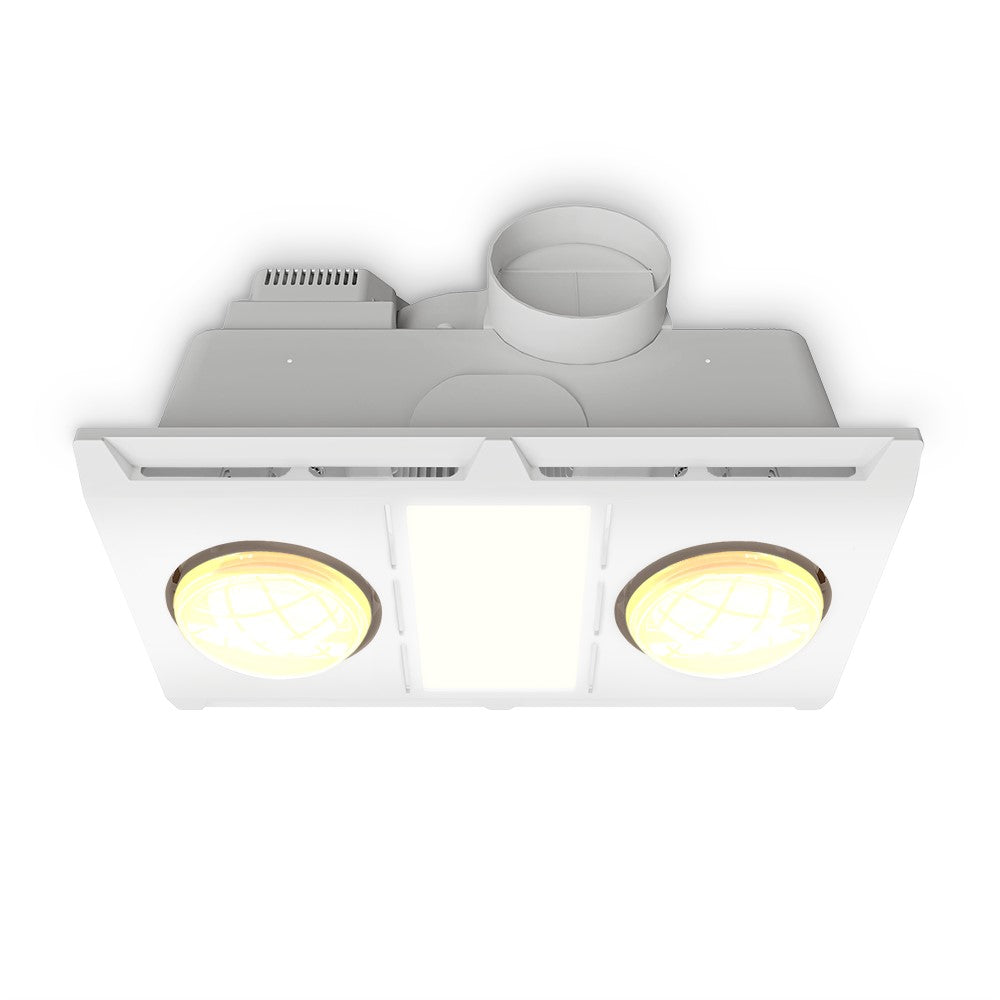

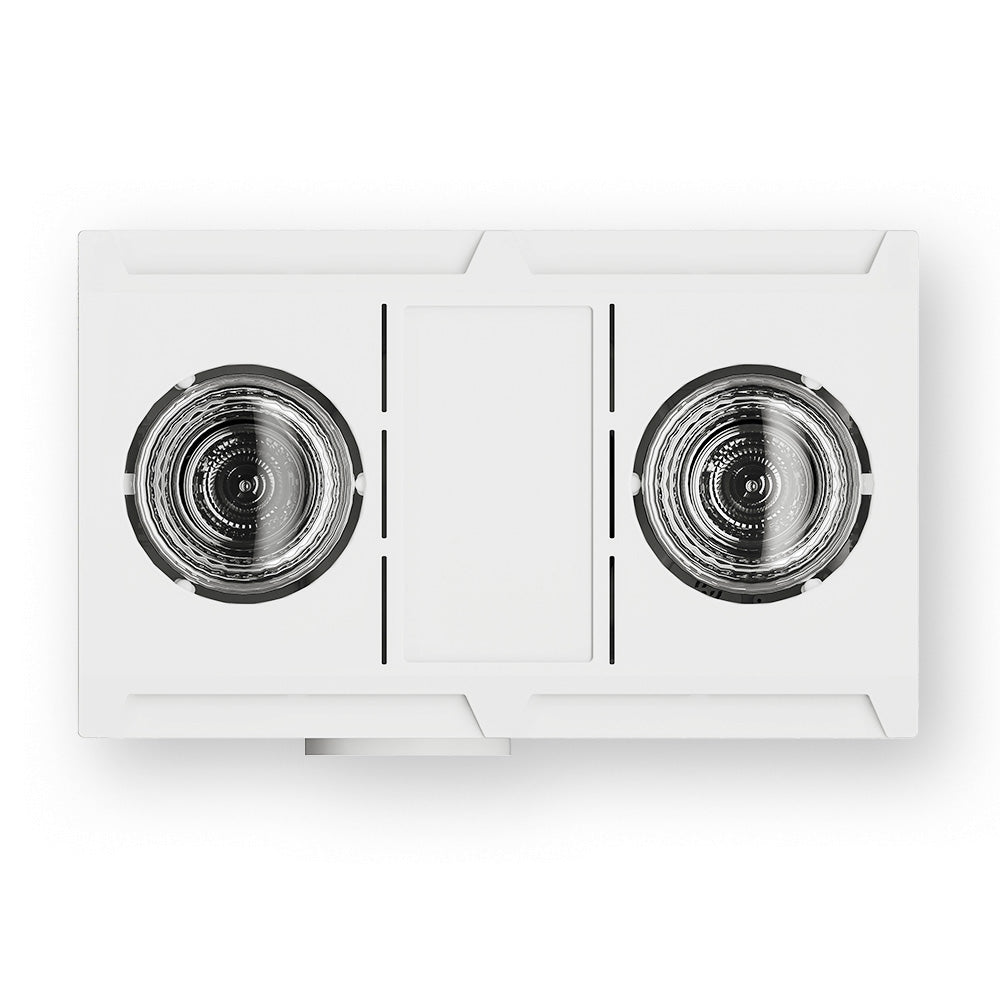

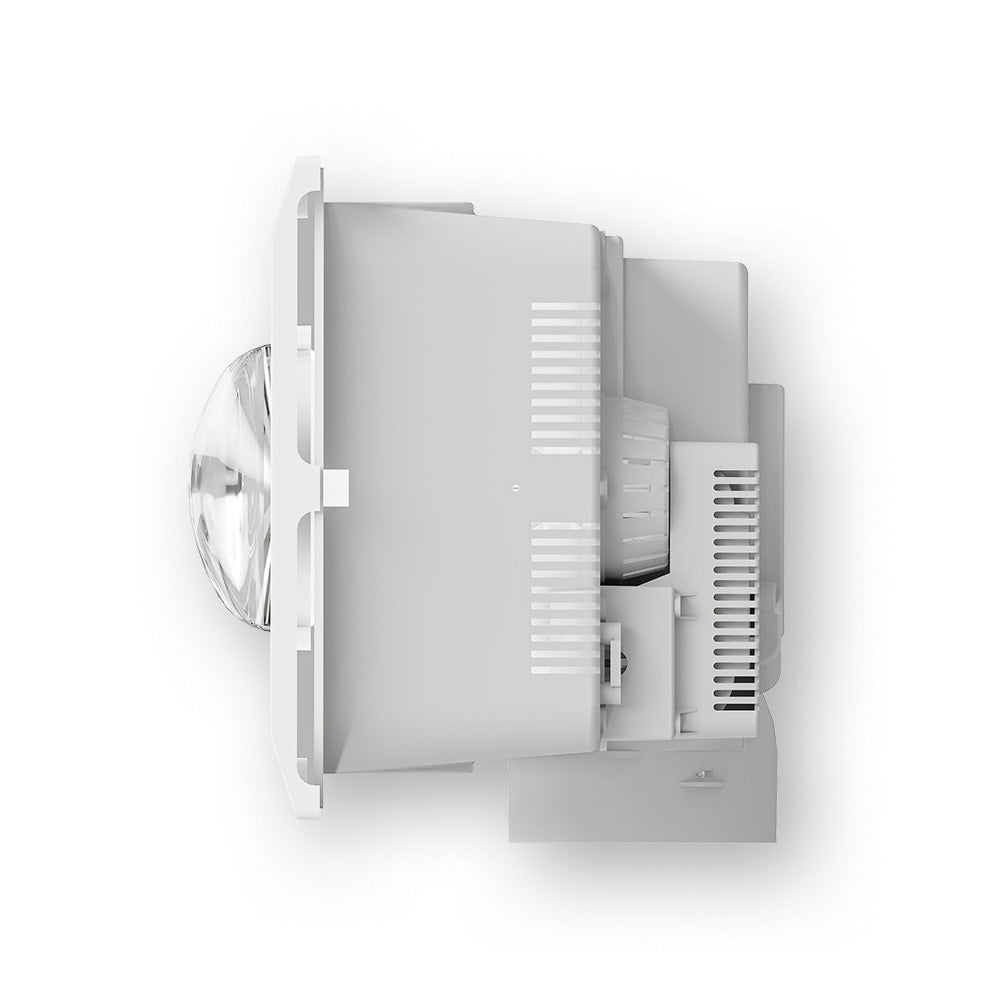

Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel

by Atom Lighting
SKU: ALTA/2LT/WH
$294.00
Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel
Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel
Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel
Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel
Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel

Atom Alta 2 Light Bathroom Heater & Exhaust W/LED panel

by Atom Lighting
SKU: ALTA/2LT/WH
$294.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

High velocity 3-in-1 bathroom heater

  • 40W ball bearing motor for superior reliability
  • Tri-CCT colour selectable LED panel provides efficient illumination
  • Two infrared heat lamps provide instant heat
  • IPX2 rated – safe for use in damp environments
  • 3-year in-home warranty for peace of mind
  • Built in thermostat switch turns fan on automatically if temperature exceeds 80°C

Efficiencies

Total System Efficiency 90 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Fitting Colour White
IC Rating Do not cover
Installation Type Recessed
IP Rating IPx2

Electrical

Electrical Rating Class II
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range 40 °C

Lamp

CCT Configuration TRI-CCT
Colour Rendering Index (CRI) >80

Colour temperature

10 Watts
Warm White (3000 K) 810 lm
Cool White (4000 K) 900 lm
DayLight (5000 K) 880 lm



Air Movement

Outlet 125 mm
Noise level 47 dB
Motor Wattage 40 W
Motor Type Ball bearing
Fan Type Centrifugal
Air extraction 400 m3/hr

Heat

Heater Type 2x 275W IR Heat Lamp (E27)

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use 2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60335.2.30
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS CISPR 15
  • AS/NZS CISPR 14.1

Warranty

Domestic Use Warranty 3 Onsite (Total 3 Years)
Warranty Operating Hours 2500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
