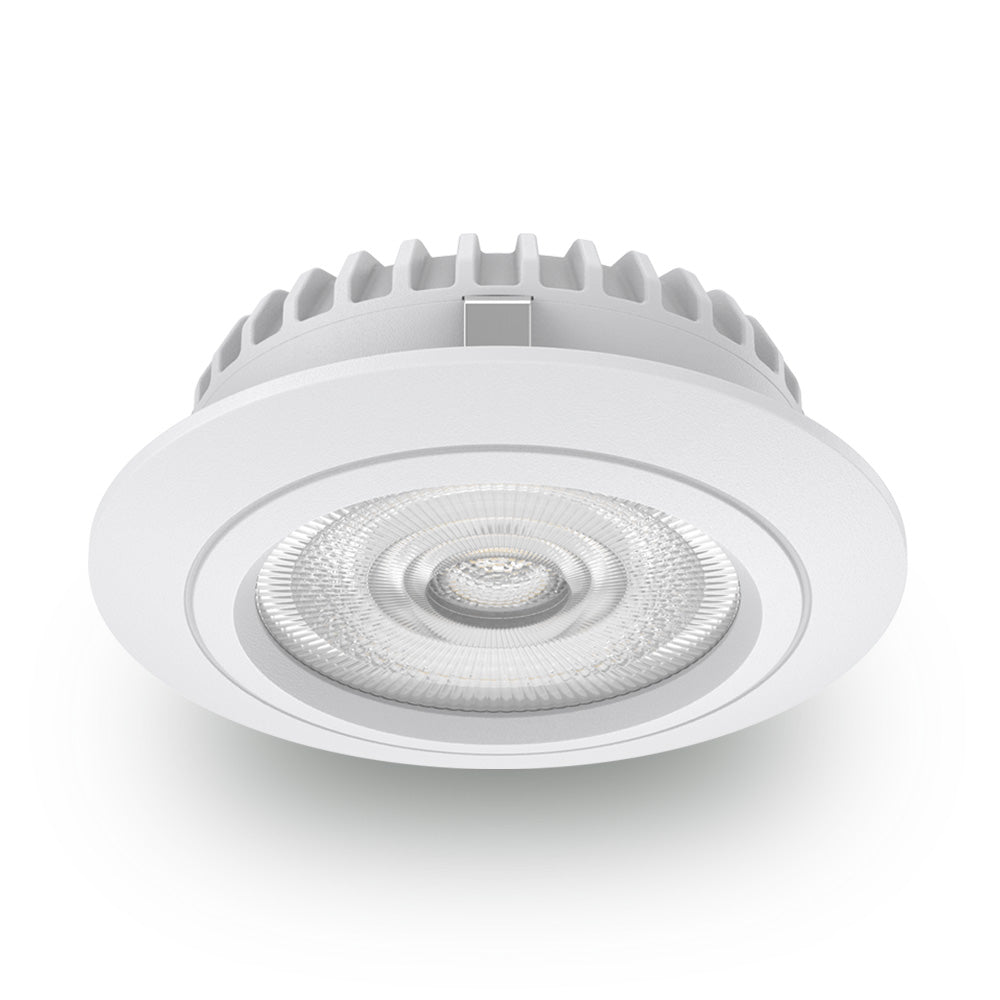

Atom AT9011 24VDC 3W LED Dual CCT Downlight

SKU: AT9011/24DC/DUAL/WH
Regular price $43.00
Unit price
per

Atom AT9011 24VDC 3W LED Dual CCT Downlight

SKU: AT9011/24DC/DUAL/WH
Regular price $43.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

  • Ideal for undershelf and accent lighting
  • 24V Low voltage operation (driver not supplied)
  • 2m Input cable
  • 100 lm/W efficacy
  • 70 degree beam angle coverage
  • LED Lifetime >50,000 hrs
  • IP54 rating resistance against dust and water splashes
  • Dual-Colour: 3000K (Warm White) & 4000K (Cool White)

Mechanical

Adjustability Fixed
Body Material Aluminium
Product Finish Powder coated
Fitting Colour White
Installation Type Recessed
IP Rating IP54 Front Face Only

Electrical

Electrical Rating Class III
Input voltage 24Vdc
Maximum Wattage 3 W
Working Temp Range 0 to 40 °C



Lamp

Macadam Steps (SDCM) 5-step MacAdam Ellipse
Beam Angle 70 °
Colour Rendering Index (CRI) >80

LED Lifetime

LED Lifetime >50000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

Warm White (3000 K) 300 lm
Cool White (4000 K) 300 lm

Driver

Dimmable Yes
Driver Included No
Flex & Plug or Lead Length 2000 mm

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • EN55015
