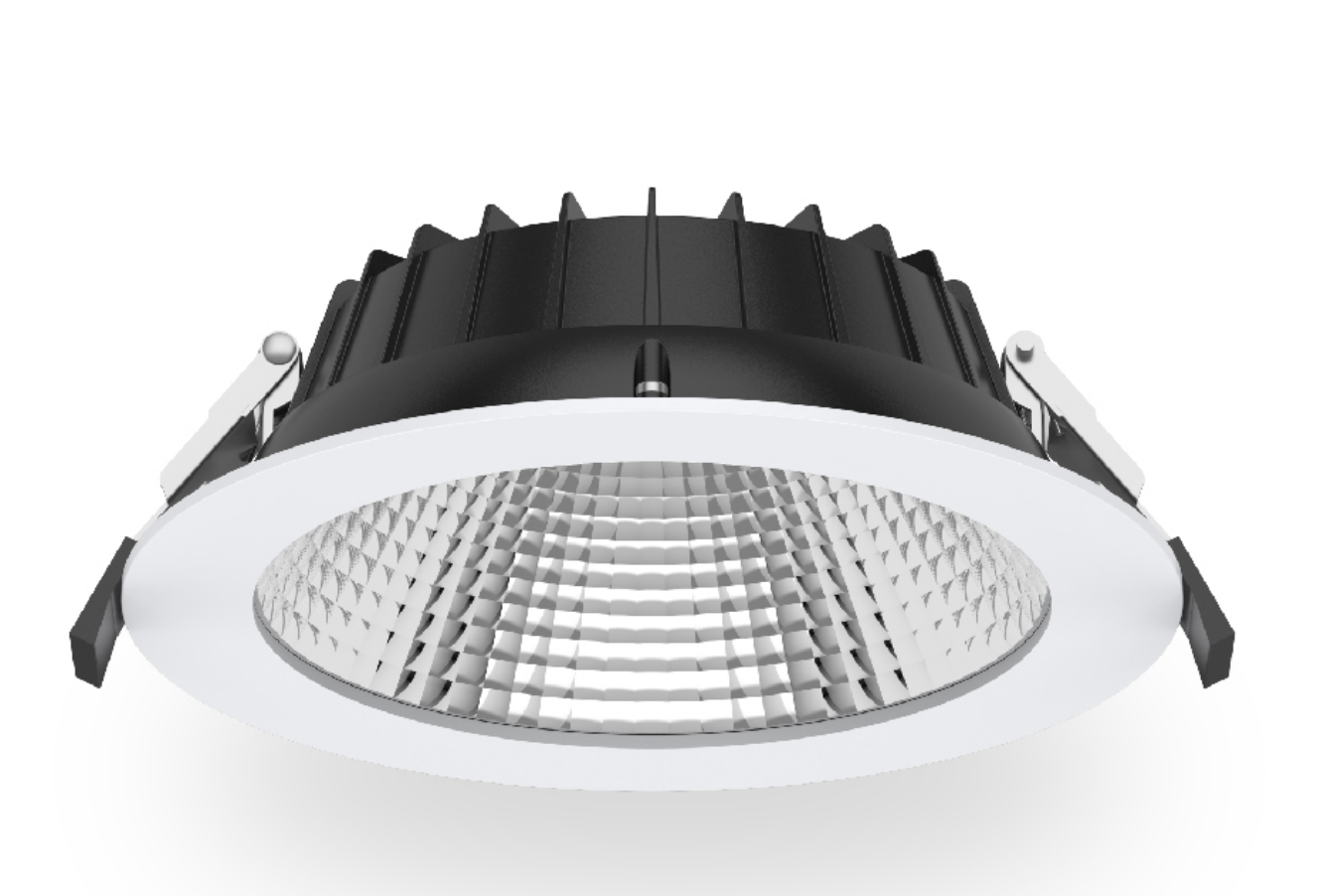

Atom AT9087 SER II 24W Commercial Low Glare LED Downlight Dimmable
SKU: AT9087/24/WH/TRI
Regular price
- Unit price
- / per
Atom AT9087 SER II 24W Commercial Low Glare LED Downlight Dimmable
SKU: AT9087/24/WH/TRI
Regular price
- Unit price
- / per
Fast Shipping from $7.90
Secure payments
Quantity selected exceeds current stock
Tax included.Shipping calculated at checkout.
Description
24W Commercial Low Glare LED downlight with dimmable driver – Tri-colour
- Energy efficient LED
- Sophisticated optics for low glare lighting
- Modern reflector design
- Phase-cut dimmable
- Tri-CCT selectable

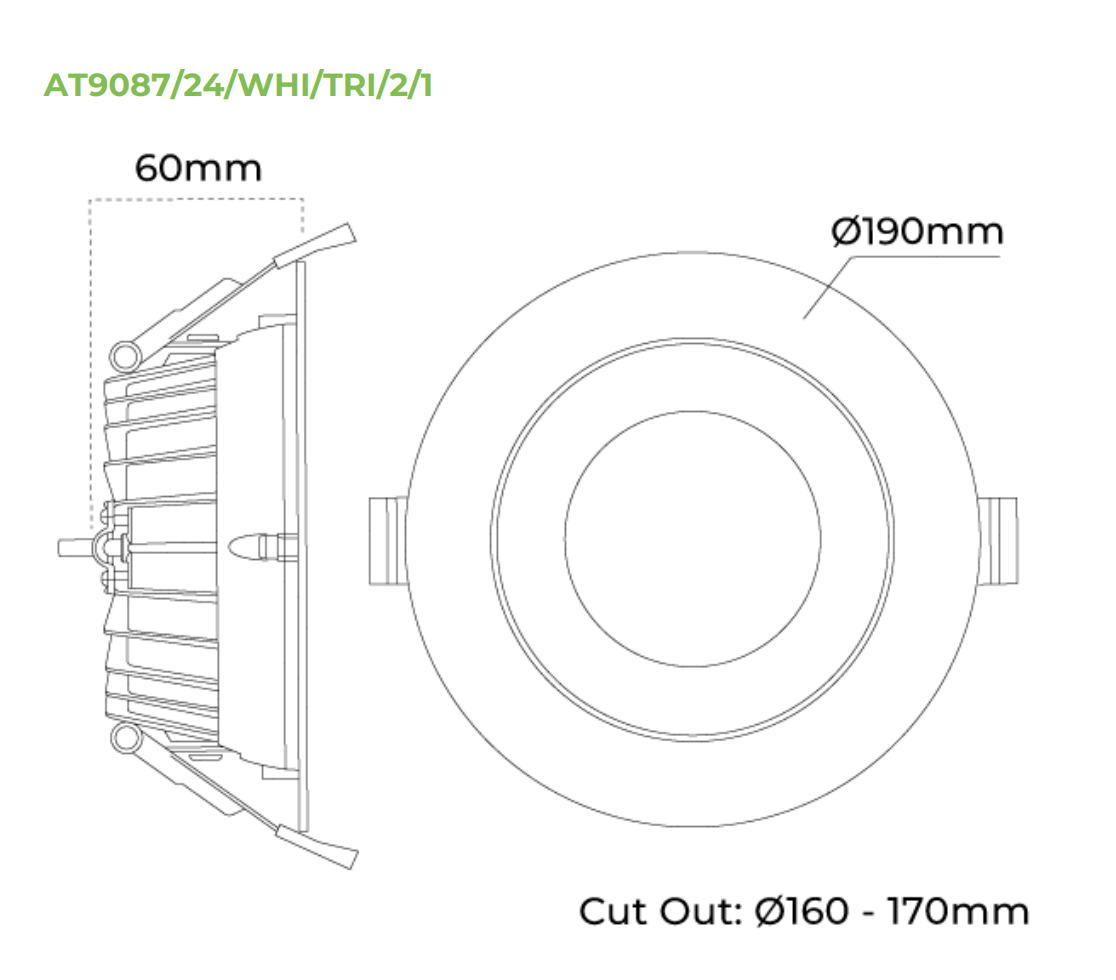

| Item Code | Product Height | Cutout | Product Diameter |
|---|---|---|---|
| AT9087/24/WH/TRI | 61 mm | 160-170 mm | 190 mm |
Efficiencies
| Total System Efficiency | 127 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP44 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | Powdercoated |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 16 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| UGR | <19 |
| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Beam Angle | 60 ° |
| Lamp/LED voltage | 36 V |
| Lamp/LED Current | 400 mA |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 9000 hrs |
Colour temperature
| Warm White (3000 K) | 1840 lm |
| Cool White (4000 K) | 2040 lm |
| DayLight (5700 K) | 2000 lm |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | Yes |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Mode | Constant Current |
| Driver Current | 400 mA |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
| VEU Approval | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|
