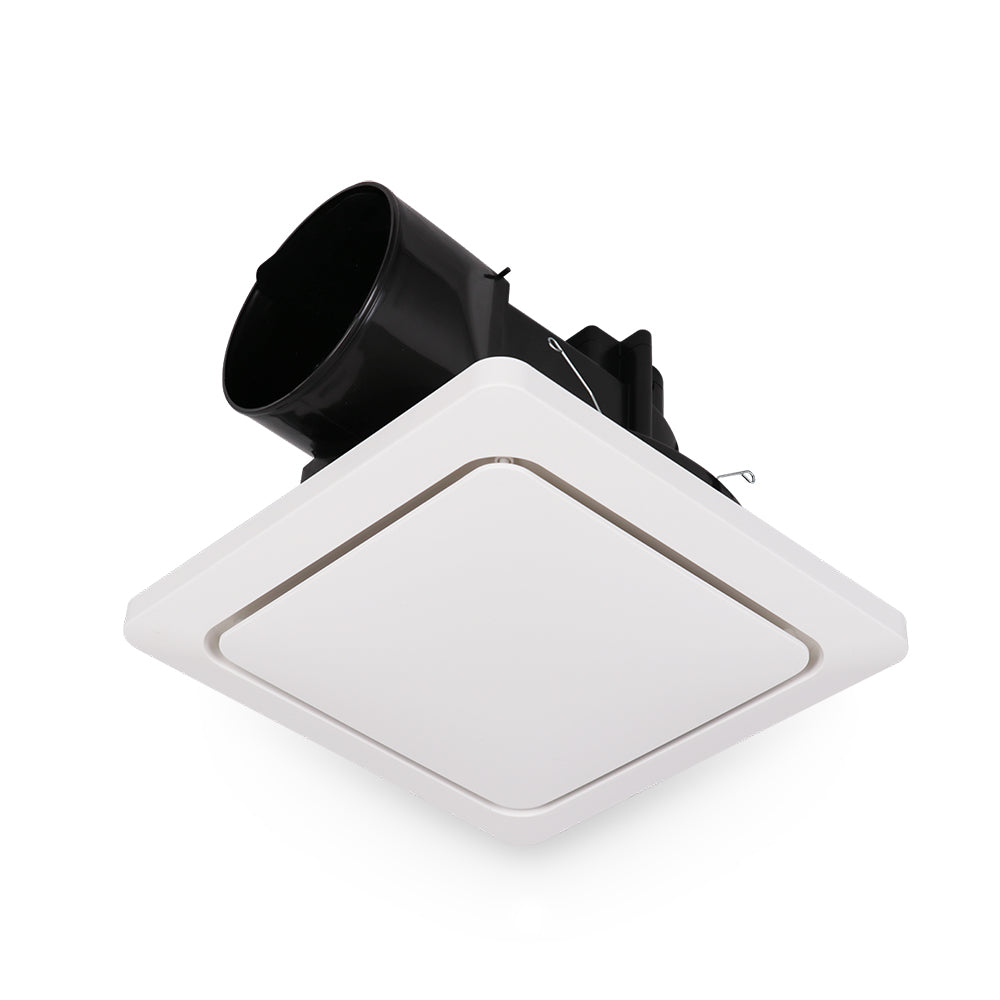

Atom Eclipse 290mm 35W Ducted Square Exhaust Fan
SKU: ECLIPSE/290/WH/SQ
Regular price
- Unit price
- / per
Atom Eclipse 290mm 35W Ducted Square Exhaust Fan
SKU: ECLIPSE/290/WH/SQ
Regular price
- Unit price
- / per
Fast Shipping from $7.90
Secure payments
Quantity selected exceeds current stock
Tax included.Shipping calculated at checkout.
Description
Ducted exhaust fan
- Powerful ball bearing motor for superior reliability
- Enjoy quiet operation
- Supplied with flex and plug for easy DIY installation
- 3-year return to base warranty for peace of mind
- Draught stopper for improved energy efficiency
Mechanical
| Product Finish | Matt |
|---|---|
| Fitting Colour | White |
| Installation Type | Recessed |
| IP Rating | IPx4 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Air Movement
| Outlet | 100 mm |
|---|---|
| Noise level | 42 dB |
| Motor Wattage | 30 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Fan Size | 240 |
| Air extraction | 270 m3/hr |
Driver
| Flex & Plug or Lead Length | 900 mm |
|---|---|
| Wiring Type | Re-wireable Flex & Plug (3 pin) |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| Warranty Operating Hours | 2500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
