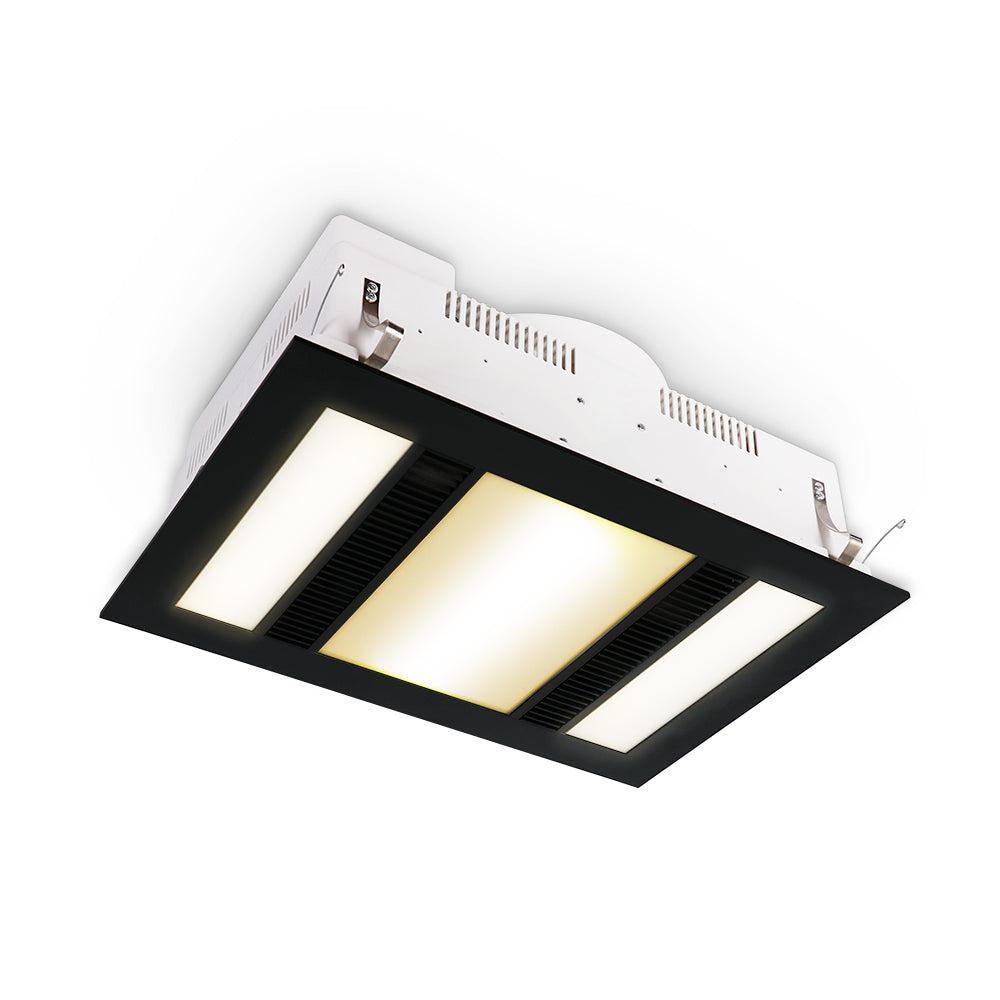

Atom St Moritz 1000W Black Bathroom Heater & Exhaust With LED Panels

by Atom Lighting
SKU: STMORITZ/B
$499.00 $433.00 13% off
Atom St Moritz 1000W Black Bathroom Heater & Exhaust With LED Panels
Atom St Moritz 1000W Black Bathroom Heater & Exhaust With LED Panels
Atom St Moritz 1000W Black Bathroom Heater & Exhaust With LED Panels
Sale

Atom St Moritz 1000W Black Bathroom Heater & Exhaust With LED Panels

by Atom Lighting
SKU: STMORITZ/B
$499.00 $433.00 13% off
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

3-in-1 Linear Infrared bathroom heater

  • Super-efficient 70W ball bearing motor for superior reliability
  • Built in 80°C thermal cutout switch for added safety
  • Infrared tube provides instant heat
  • 3-year in-home warranty for peace of mind
  • Includes wall switches, 1.5m duct and grill outlet

Mechanical

Product Finish Matt
Fitting Colour Black
IC Rating Do not cover
Installation Type Recessed
IP Rating IPx2

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Lamp

CCT Configuration TRI-CCT
Colour Rendering Index (CRI) >80

Colour temperature

20 Watts
Warm White (3000 K) 1585 lm
Cool White (4000 K) 1700 lm
DayLight (5000 K) 1585 lm



Air Movement

Outlet 150 mm
Noise level 45 dB
Motor Wattage 70 W
Motor Type Ball bearing
Fan Type Centrifugal
Air extraction 500 m3/hr

Heat

Heater Type 1000W Infrared Heat Source

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use 2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60335.2.30
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS CISPR 15
  • AS/NZS CISPR 14

Warranty

Domestic Use Warranty 3 Onsite (Total 3 Years)
Warranty Operating Hours 2500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
