Mercator Domini 3 in 1 Bathroom Exhaust Fan

• 3 years warranty *exclude lamps
• 2 years warranty for heat lamp
• High airflow extraction up to 460 m3 /hr *
• 1 x 800W heat lamps for instant heating
• 1 x 13W tri-colour LED panel light
• Heavy duty metal housing provides durability
• Triple overheating protections by thermostat, thermal cutout and fuse

• Extra safety protection by contact switch activated heat lamp

• Side ducted with draft stopper
• Cut-out template included**

EXHAUST FAN

Motor Type Ball Bearing Motor

Air extraction* 460 m3 /hr

Motor Power 60W

Duct Outlet Size Ø150 mm

LIGHTING

Type Tri-colour LED Panel

Lighting Power 1 x 13W

Light Colour (switchable) Warm White / Neutral White / Cool White

Light Output (lumens) 900

INSTALLATION

Rated Input Voltage 220-240V~, 50Hz

Min Install Depth 235mm

Cut-out Size 440mm x 320 mm

Type of Connection Hardwire

IP Rating IP22

Optimal Performance 2.4m – 2.7m ceiling

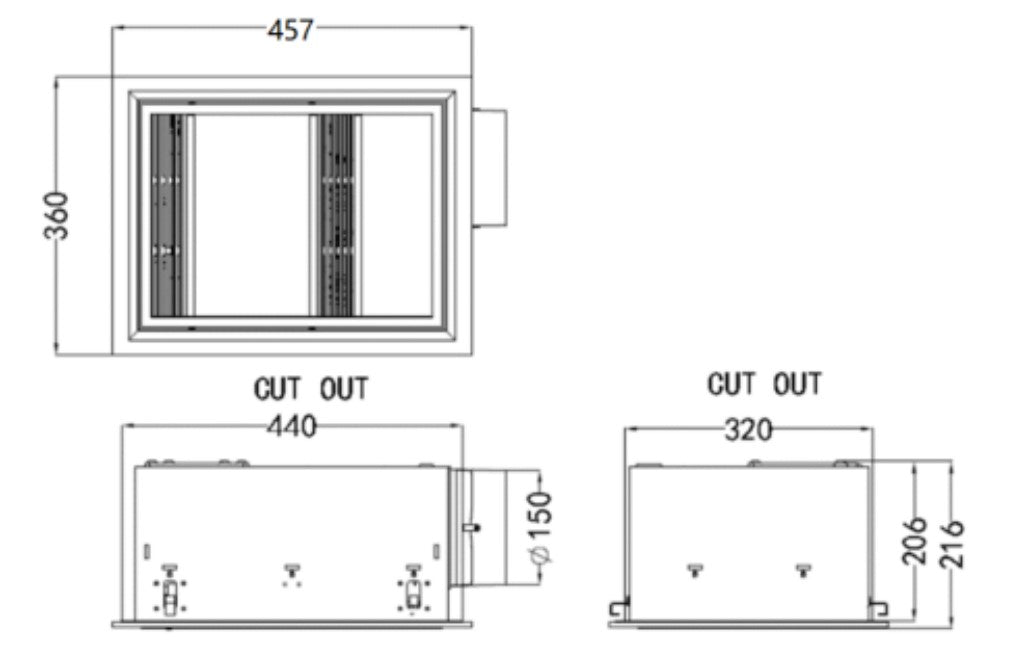

DIMENSION

See in photos
