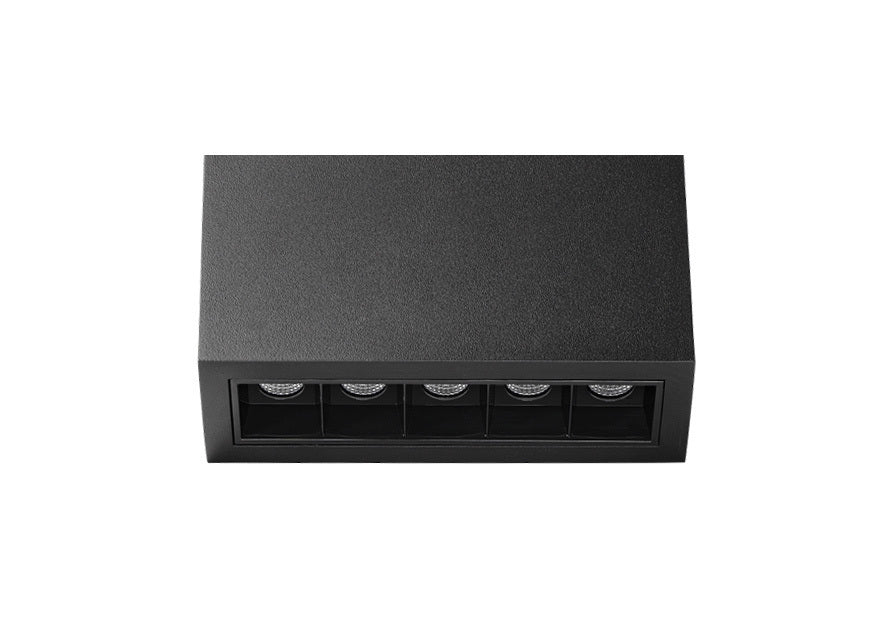

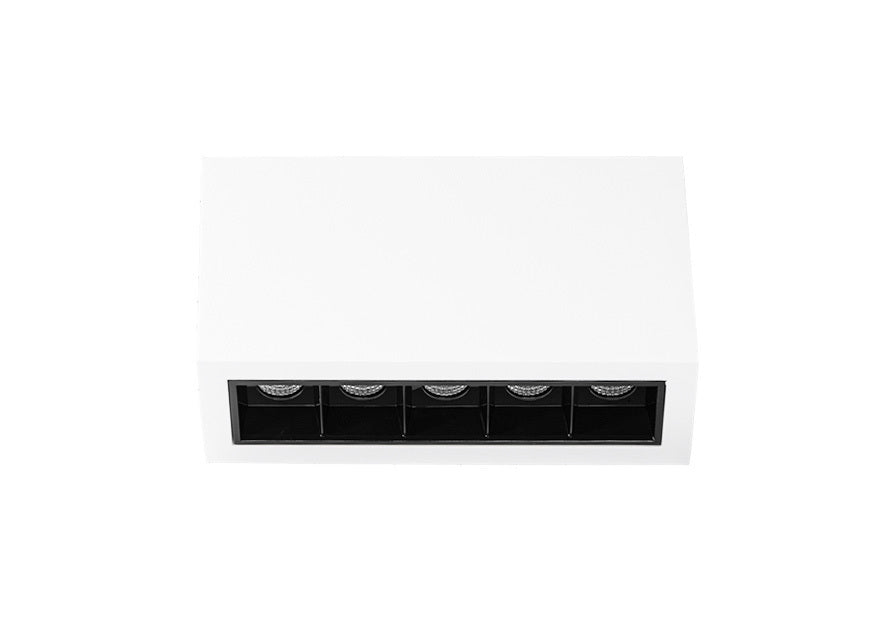

Trend Slot LSM5 10W Surface Mounted Miniature Linear Downlight

• Surface mounted miniature LED linear downlight crafted with aesthetics and visual comfort in mind
• Equipped with 5 deep set light optics specifically designed for glare control, minimising the presence of the luminaire within the field of vision
• CRI 90+ available in 3000K and 4000K CCT options
• Supplied with a remote driver and 240V flex and plug


Physical Characteristics

Trim Colour:White|Black

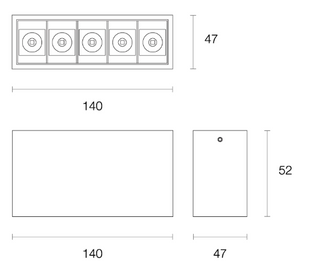

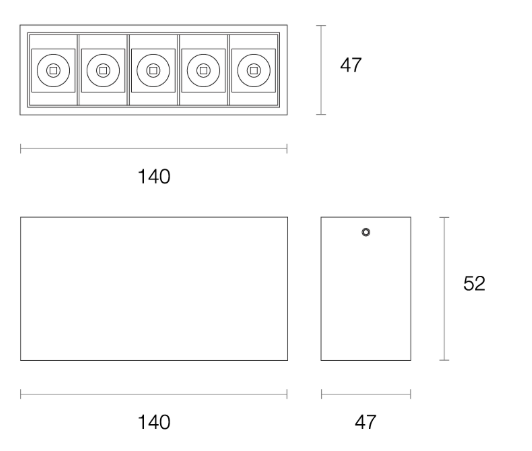

Dimensions:140 (L) X 47 (W) X 52 (H) mm
Weight:220 g

General Characteristics

Family:Slot
Surface:Ceiling
Mounting:Surface Mounted
Ingress Protection:IP20

Technical Characteristics*

LED Power:10W
LED Type:COB
LED Lumen Output*:1223 lm
Luminous Flux*:1002 lm
Efficacy*:80.81 lm/W
Colour Temperature:3000K|4000K
Colour Technology:CRI 90+ Standard
Colour Deviation:SDCM ≤ 3
Lifetime:50,000 hours (L70)
Beam Angle:Wide
System Power:12.4W Typical
Driver Model:Trend 150013-700 (L&T)
Input:180-265V AC 50/60 Hz
Output:11-18V DC 700mA
Power Factor:>0.90
Protection:OVP,OTP,OCP,SCP,OPP
Driver:Leading & Trailing Edge
