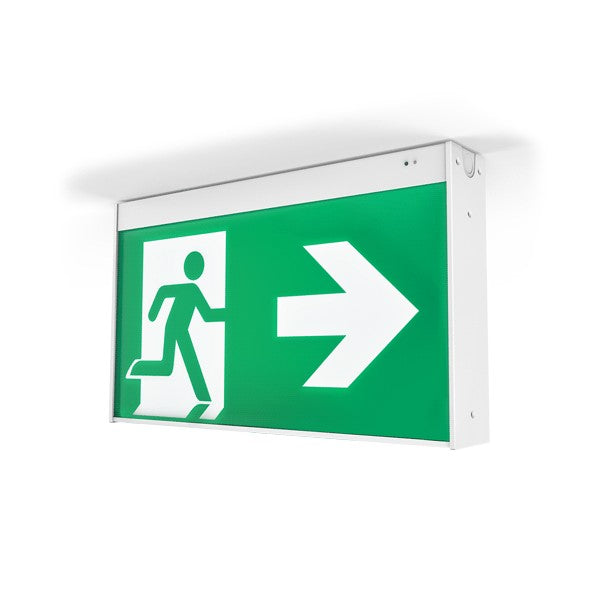

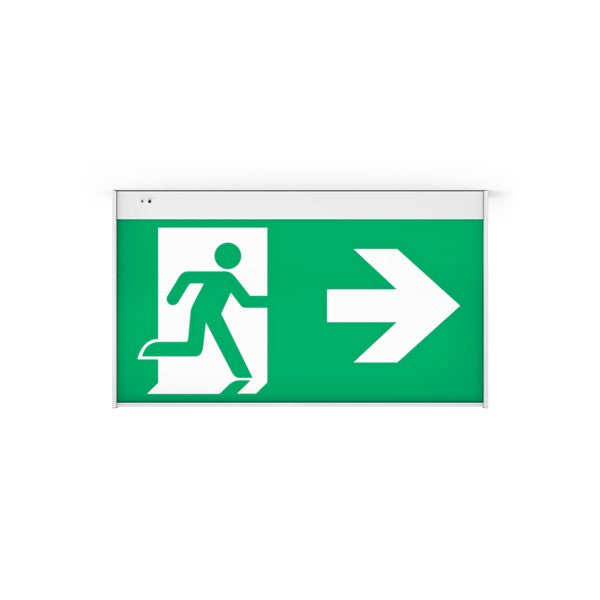

Ektor 4205 Lynk Mercury Jumbo Professional Emergency Exit 40m W/wireless

by Ektor Lighting
SKU: EV-MERCURY-40M-PRO-LK
$654.00
Ektor 4205 Lynk Mercury Jumbo Professional Emergency Exit 40m W/wireless
Ektor 4205 Lynk Mercury Jumbo Professional Emergency Exit 40m W/wireless
Ektor 4205 Lynk Mercury Jumbo Professional Emergency Exit 40m W/wireless
Ektor 4205 Lynk Mercury Jumbo Professional Emergency Exit 40m W/wireless

Ektor 4205 Lynk Mercury Jumbo Professional Emergency Exit 40m W/wireless

by Ektor Lighting
SKU: EV-MERCURY-40M-PRO-LK
$654.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

Jumbo Professional Emergency Exit, 40m

Features

  • Large terminal blocks
  • Single and double-sided decals
  • Fully compliant (AS/NZS 2293)
  • Maintained operation
  • Soft-start charger to reduce building load
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Wall, ceiling and rod mounting (with Rod Mount Kit)
  • 10 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/IEC62034)
  • DALI (IEC62386)
  • Ektor wired monitored system
  • Extended viewing distance with 500 x 250 mm decal
  • Wireless monitoring via Ektor Lynk

MECHANICAL

Body Material Powder coated steel
Diffuser Material Polycarbonate
Fitting Colour White
Installation Type Wall or Ceiling
IP Rating IP20

ELECTRICAL

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 4.5 W
Standby Power 2.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range 0 to 40 °C

LAMP

CCT Configuration Single
CRI >80

LED LIFETIME

LED Lifetime Rating >10Y/00M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.

COLOUR TEMPERATURE

CCT 6000K



DRIVER

Dimmable No
Driver Included Yes
Integrated Driver No
Driver Mode Constant Power
Driver Type DALI DT1 Emergency
Wiring Type Re-wireable terminal block (5 pin)

EMERGENCY (EM SUFFIX)

Replacement Battery Code 01302
Emergency Classification C0:D6.3, C90:E4, C180:E4
Emergency Control DALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size 500 x 250 mm
Emergency Duration 90 mins
Emergency Mode Maintained
Emergency Output Power 1400 mW
Viewing Distance 40 m

COMPLIANCE

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.

WARRANTY

Commercial Use Warranty 5 RTB (Total 5 Years)
