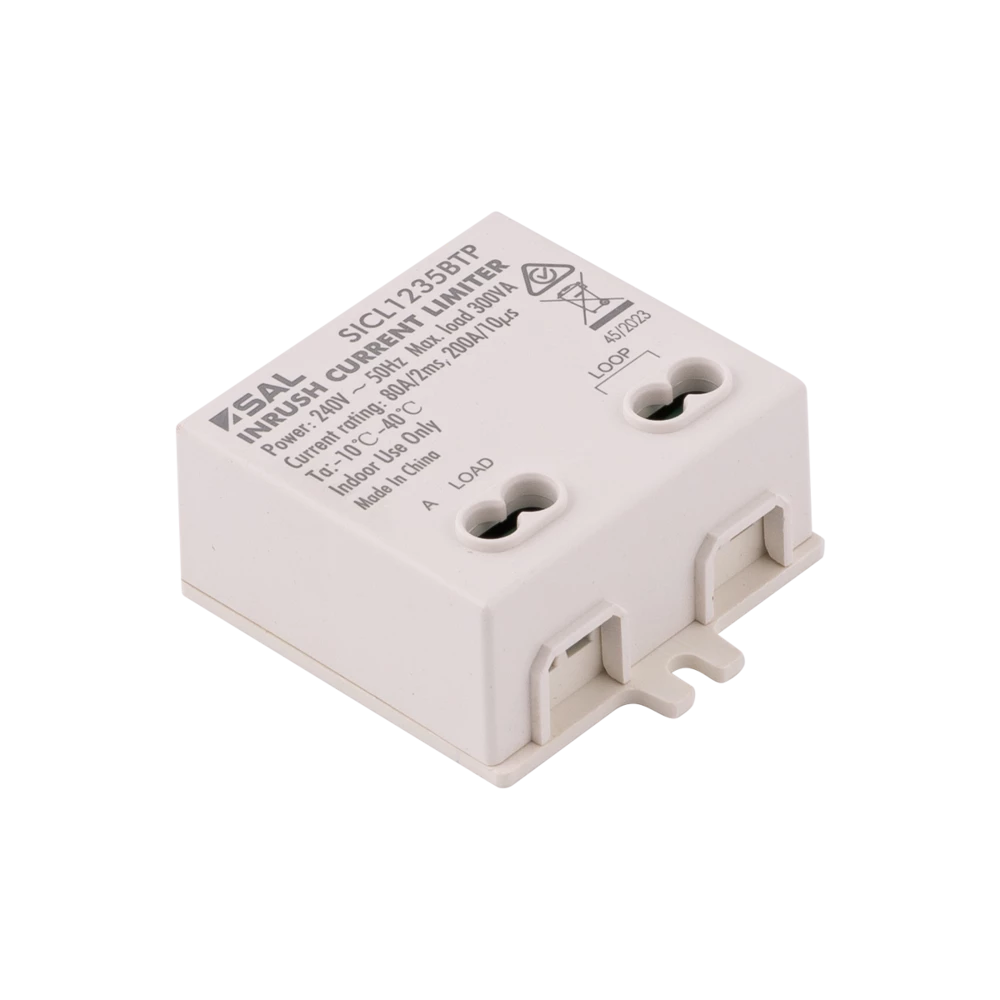

SAL Pixie Inrush Current Limiter SICL1235BTP

Application

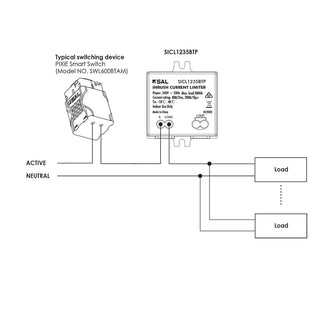

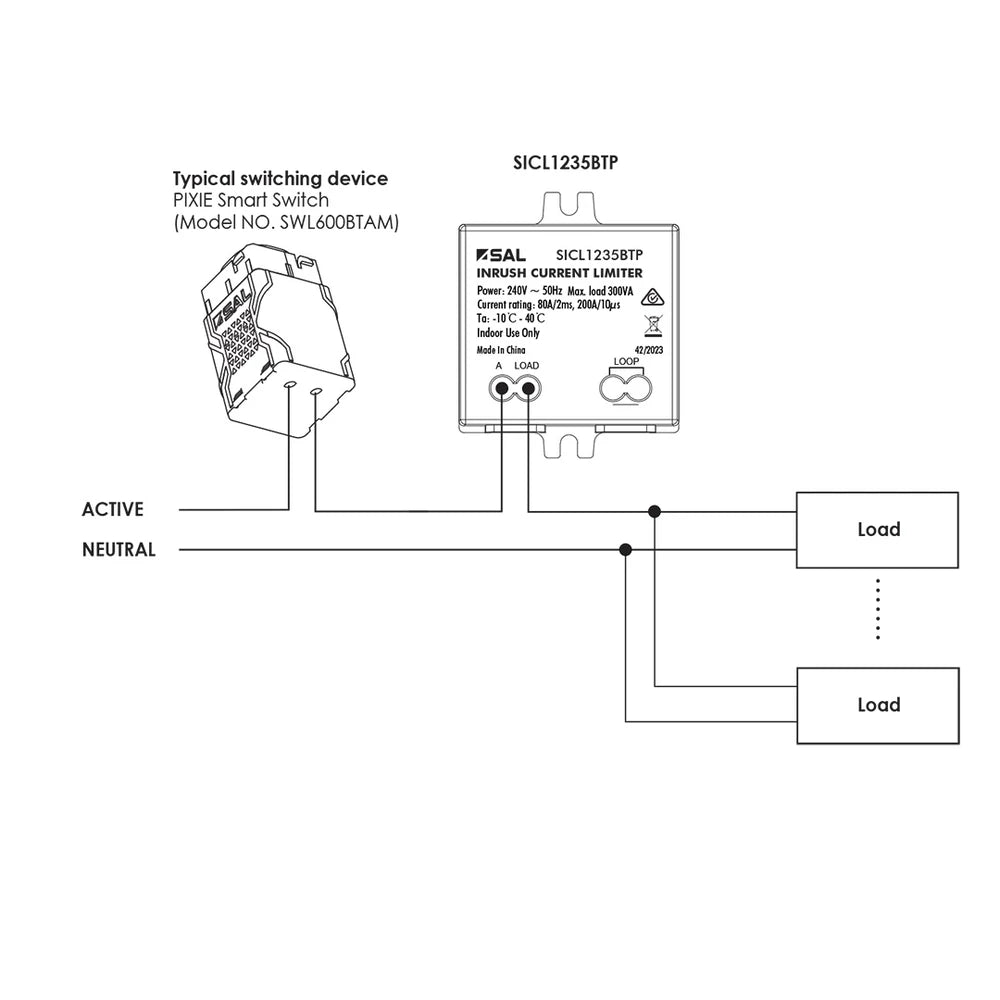

The SAL Inrush current limiter is a 2-wire electrical accessory, that is designed to reduce the high starting current caused by capacitive load or inductive load (typically but not limited to LED luminaires with in-built drivers, constant voltage drivers, transformers etc), so as to protect the switching device in the circuit (typically a switch, a relay, a sensor with relay, etc) from being damaged by the excessive inrush current.

Design Specifications

• Sleek low profile form factor

• 2-wire design for easy installation

• 2 loop terminals

• Reduce high inrush current caused by poor loads

• Current rating - 80A for 2ms, 200A for 100μs

• Max load 300VA
