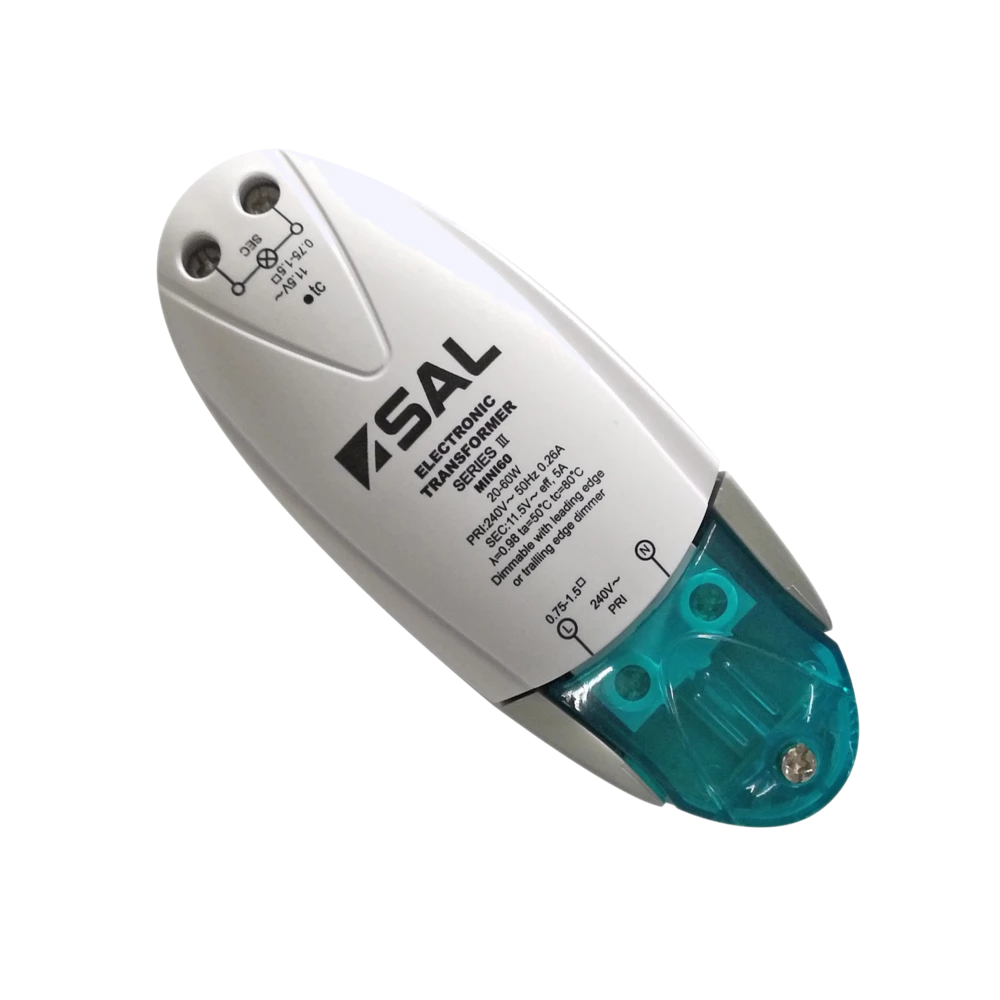

SAL Electronic Transformer MINI 60

Application

Dimmable trailing or leading edge transformer for SELV lighting equipment

Design Specifications

• Overload and short circuit protection
• Overheating protection
• Safe no load operation

• Dimmable with compatible trailing edge or leading edge dimmers

• Hardwired termination

• Minimum / Max loads -
  LED 1 watt min / 20 watt max,
  HALOGEN 20 watt min / 60 watt max,
  Note: minimum load compatibility with a dimming device, may be subject to the inclusion of a load correction capacitor/s in the circuit.
  Electrical class II, Do Not Cover

Performance

• Dimmable - YES
• Dimmer Type - TRAILING OR LEADING EDGE
