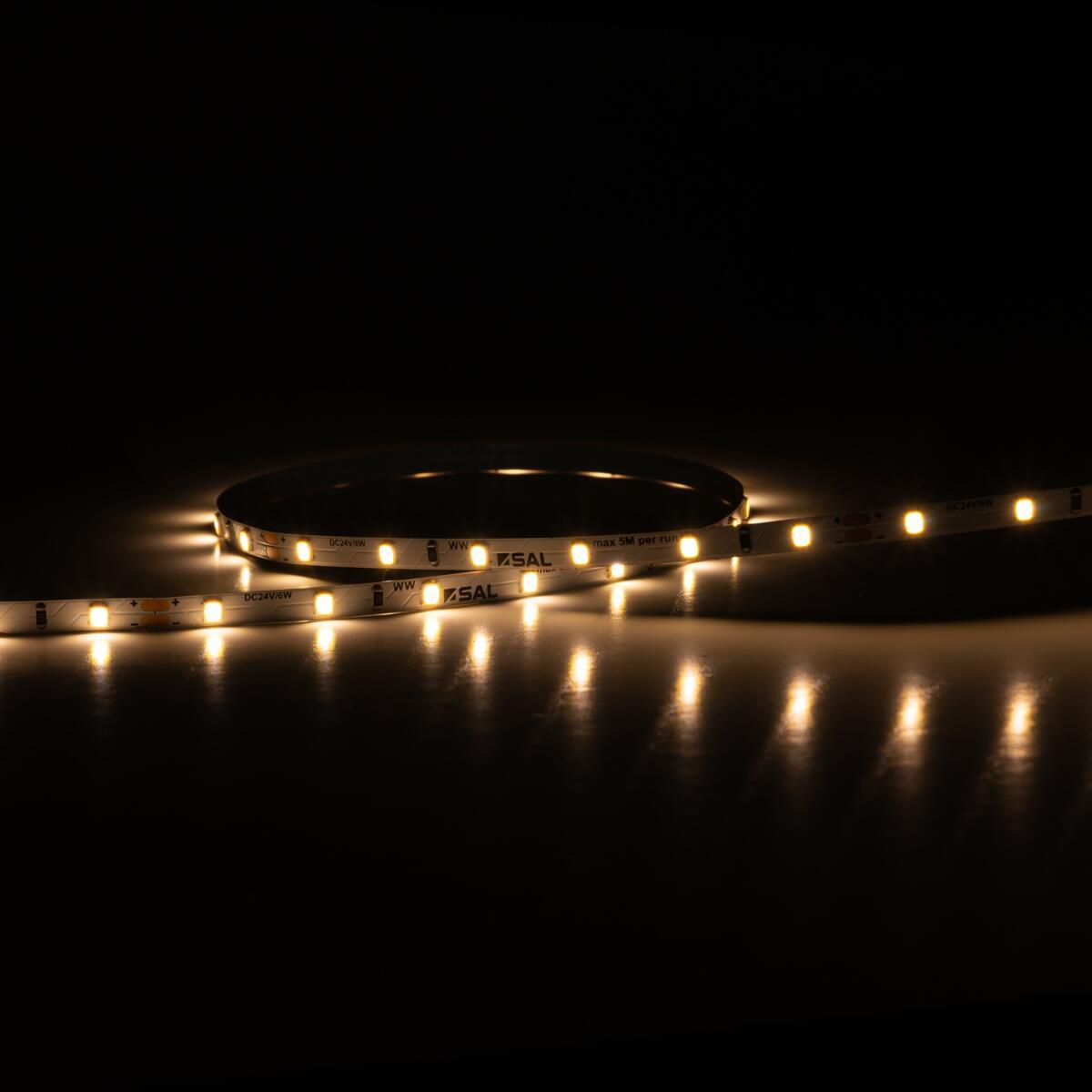

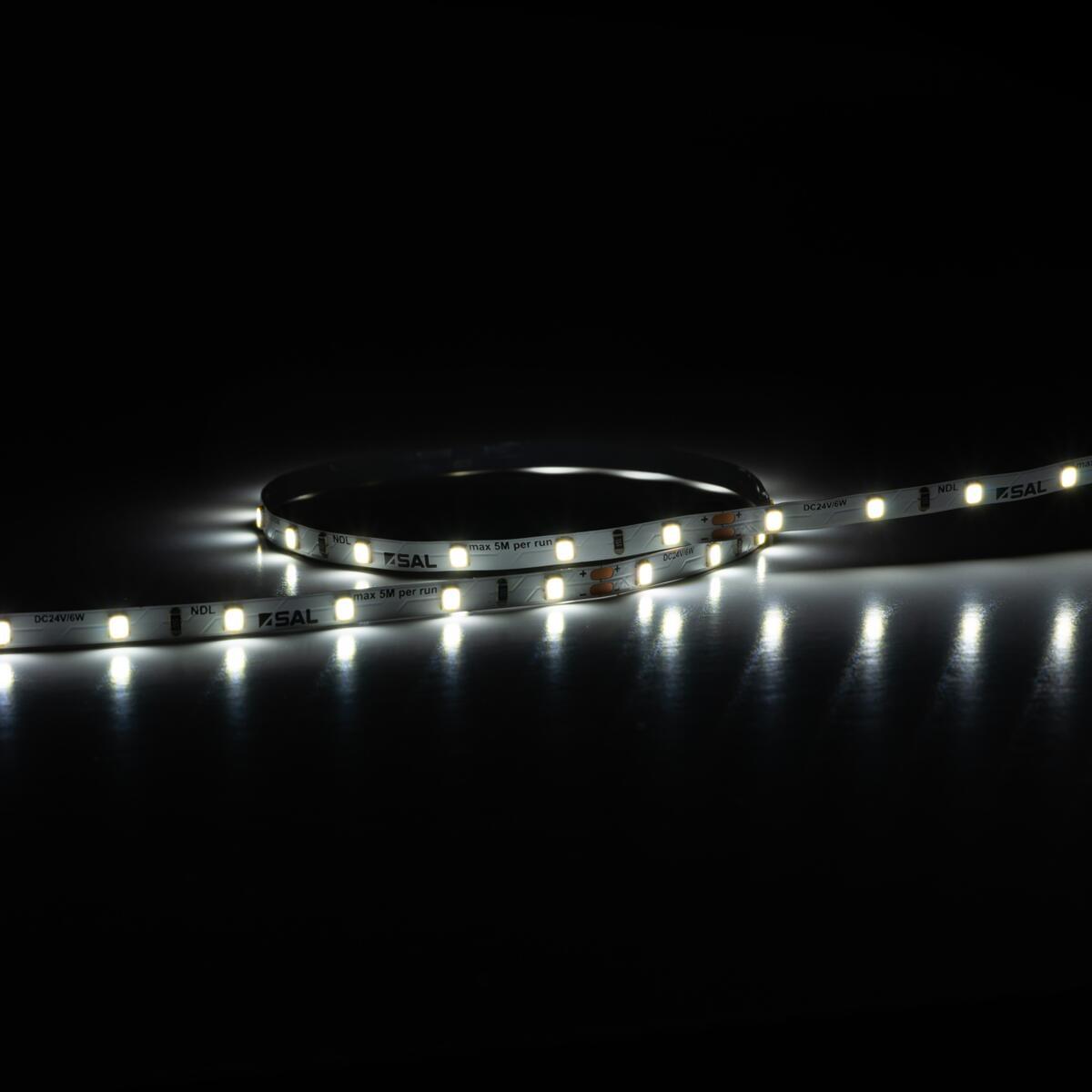

SAL Flexi 24V Single Colour IP20 FL2406/R05 6W/M 30M LED Strip Roll IP20

Application

A creative solution for residential and commercial interior spaces

Design Specifications

• High efficiency SMD LED chips with 3M self-adhesive tape.

• Maximum run length 5m, cuttable every 100 mm at
  scissors symbol ✂

• Heat sink and 24V constant voltage LED driver required.

• Lumens 460lm/m

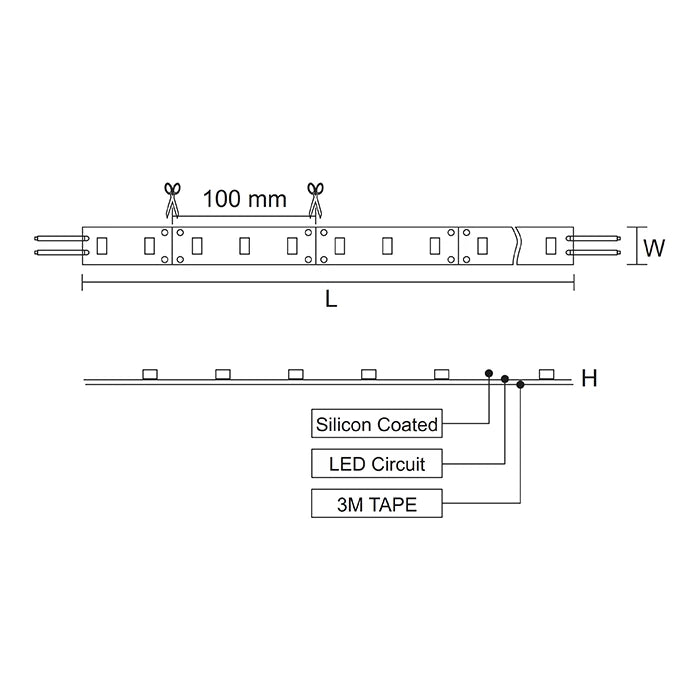

• Dimensions 30000(L) x 5(W) x 1.4(H)

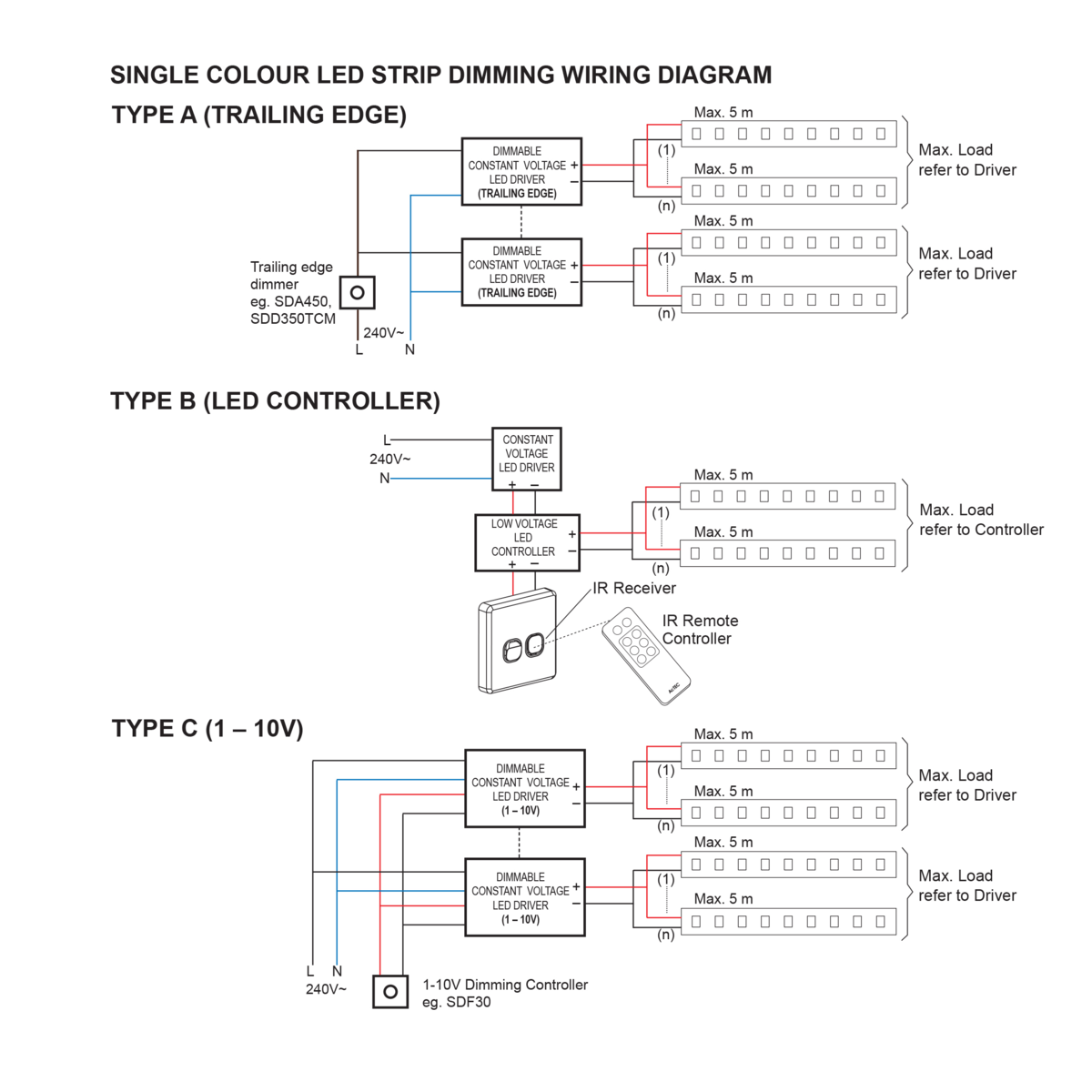

• Dimming Options:
  Type A - Trailing edge dimming,
  Type B - LED strip controller LT8915DIM/BT
  with LT8914DIM/RP if required,
  Type C - Analogue 1-10V
  Type D - DALI 2 control

• LED channel options refer this section

Performance

• Dimmable - OPTIONAL
• Dimmer Type - refer dimming options
