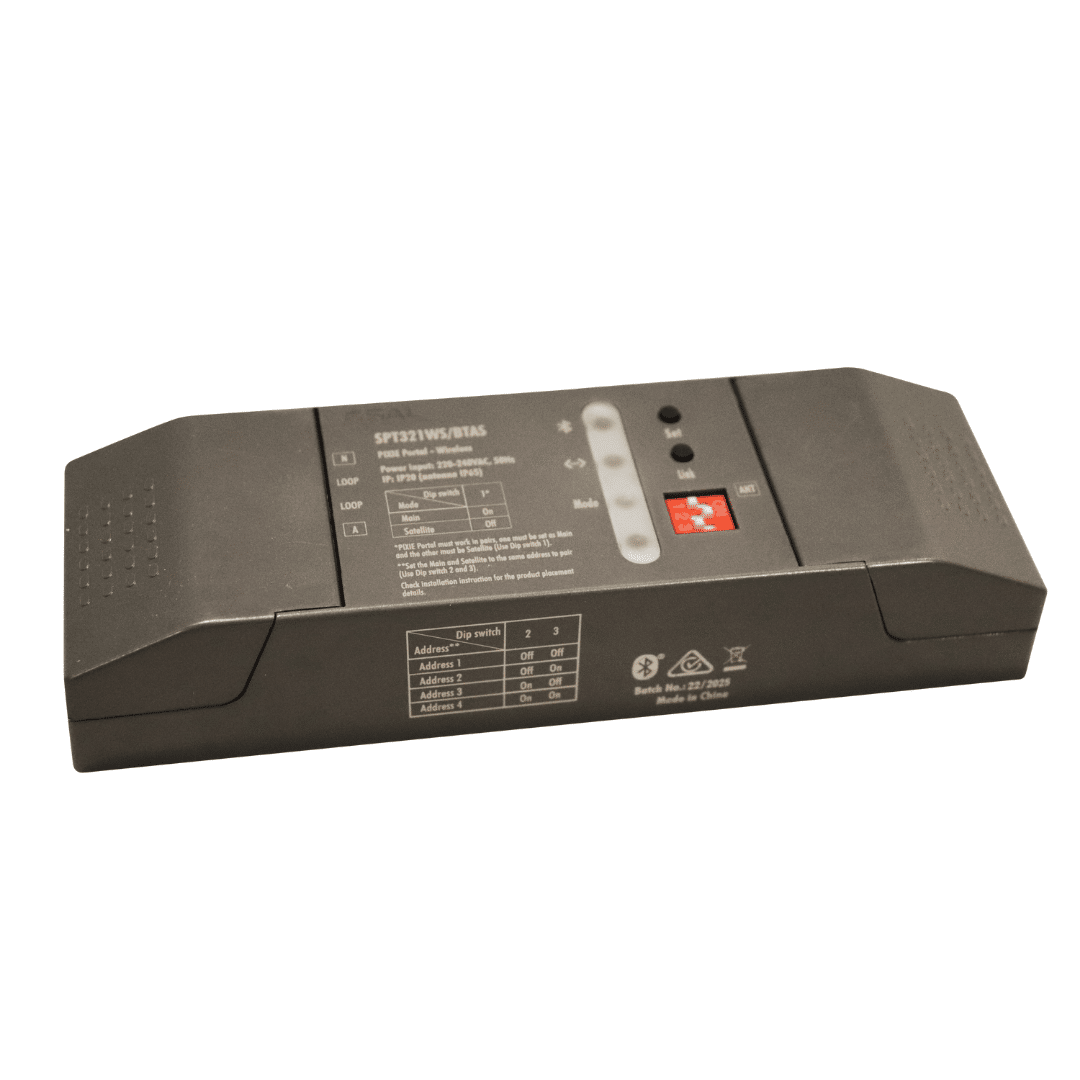

SAL Pixie Portal Wireless Mesh Booster SPT321WSBTAS

PIXIE Portal – Wireless is an innovative directional signal bridge in PIXIE wireless smart home system. It significantly extends the wireless control distance in one direction up to 120 metres, while still keeping the controlled devices at the far end (satellite) in the same PIXIE network, without the involvement of internet.

It is suitable for the application that a user needs to control a small quantity of PIXIE devices in a far secondary location of a property (e.g. a shed, boat house, granny flat etc.), from a primary location (e.g. the main house) where a larger amount of PIXIE devices are installed.

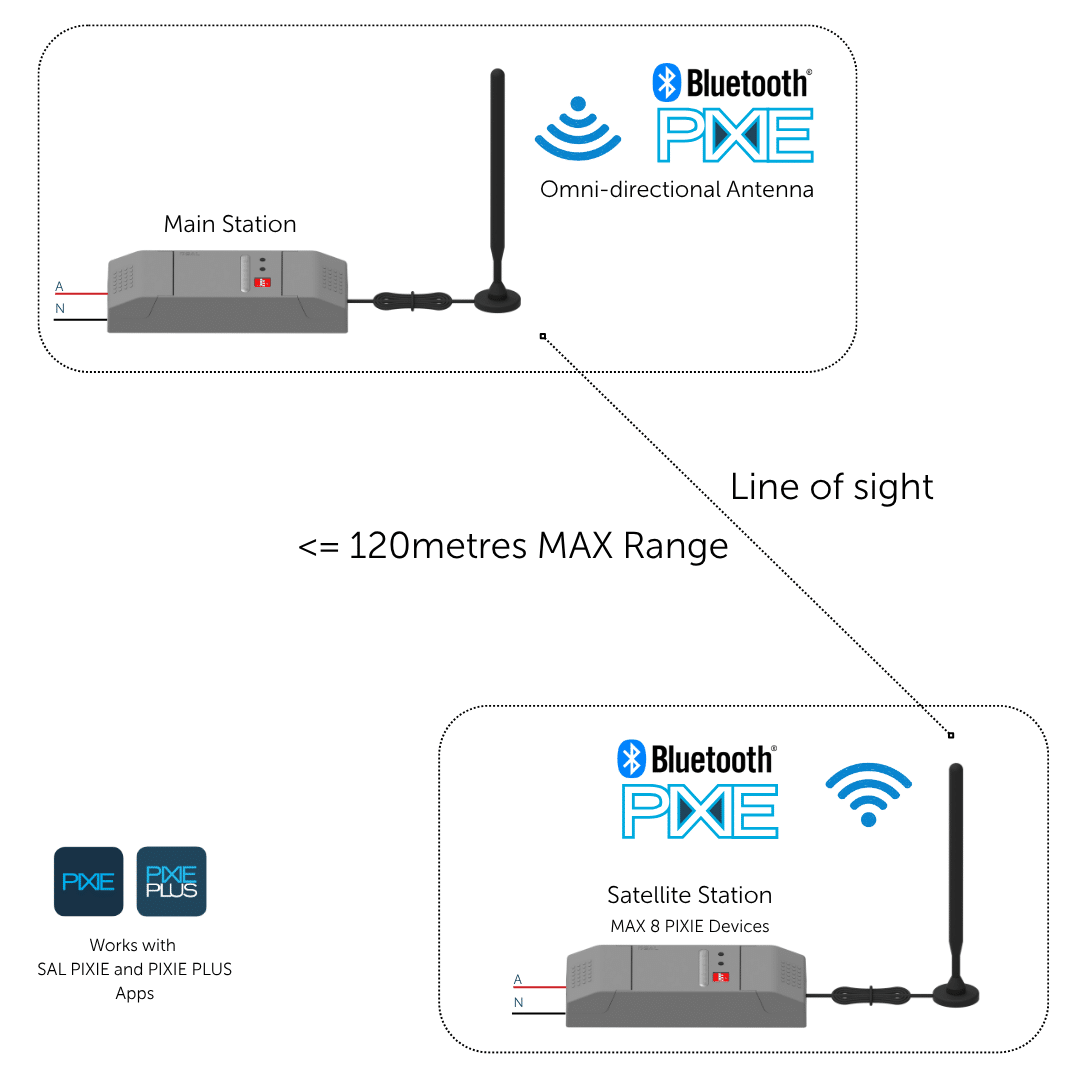

• Maximum 120 meters between the Main and Satellite station in open space
• One satellite station supports up to MAX 8 PIXIE Master devices.
• MAX Up to 4 pairs of PIXIE Portal - Wireless are allowed to use in a PIXIE HOME - with a MAX of up to 8 PIXIE Master Devices at each Satellite device
• In multiple master installs, external antenna must be mounted > 2.5 metres apart from other Portal Antennas.
• Fully local wireless communication enhancement, no need of internet or Wi-Fi

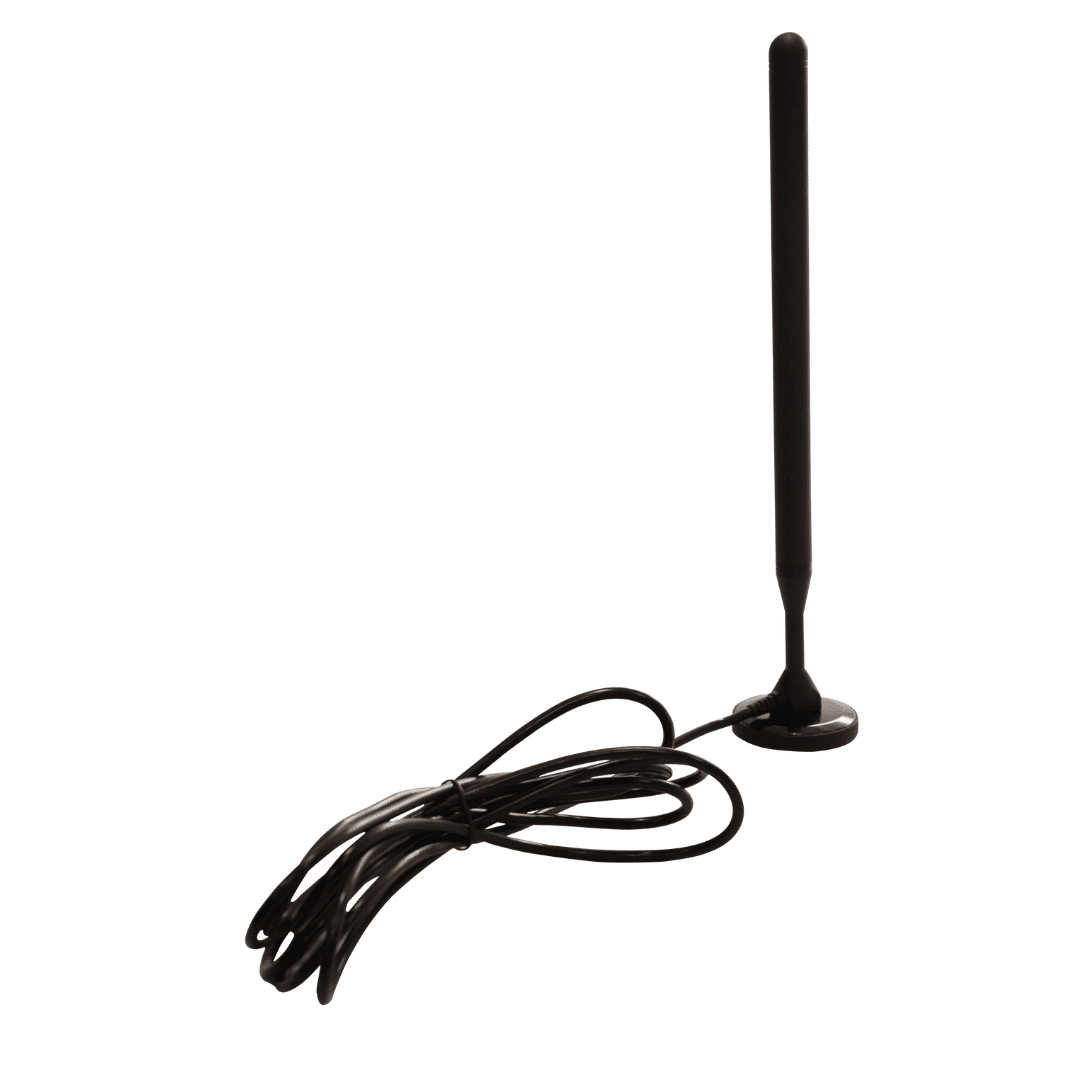

• Antenna IP65, suitable for mounting outdoor for best signal transmission
• Physical buttons to facilitate commissioning
• DIP switches for setting working modes and addresses
• In-built LED indicators for clear status indication
