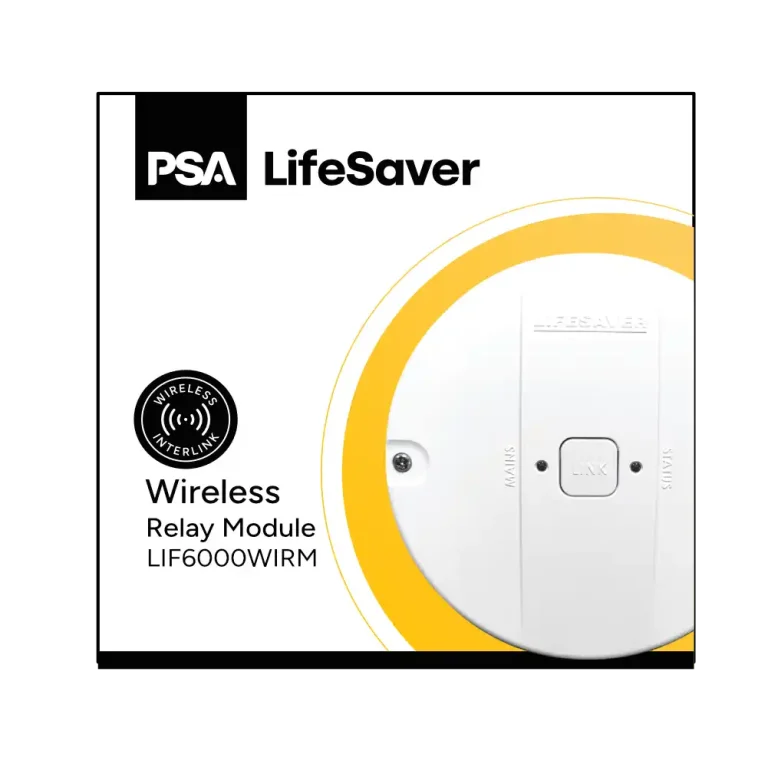

PSA Lifesaver Wireless Interlink Relay Module

APPLICATION

Wireless Interlink and Relay Module for LIFESAVER range of smoke alarms and ancillary products.
This product is AC mains powered with rechargeable battery backup

FEATURES

• Electrical rating: 240 V AC 50Hz with 2 X 3V rechargeable battery back up
• Relay contacts rating: 240VAC/30VDC 5A.
• Low Battery : The red LED flashes once every 30 seconds
• Multi-purpose green and red LEDs indicate the module is connected to the AC supply,
  is working normally and wireless link status
• Link button is used to interconnect wirelessly, and test
• Wireless Radio Frequency: 918 MHz
• Wireless range of < 100 meters in open air (Line of sight)
• Wireless Interconnect: up to 24 units
• The module can be interconnected through hardwire or wirelessly
• Hardwire Interconnect Alarms: Up to any combination of 12 other non-wireless alarms
• Operating Temperature Range: 0°C to 40°C
• Selectable relay options: (1) Smoke Alarm Latching, (2) Smoke Alarm Pulse, or (3) CO latching
• Battery Life: At least 3 days as backup power (without alarms)
• Approved to AS/NZS 4268:2017
• Approved to AS/NZS CISPR 32:2015 AMD 1:2020
• Approved to AS/NZS 62368.1:2018
