Atom AT9012 12W LED COB Downlight with Dimmable Driver
SKU: AT9012/WH/COB/WW
Regular price
- Unit price
- / per

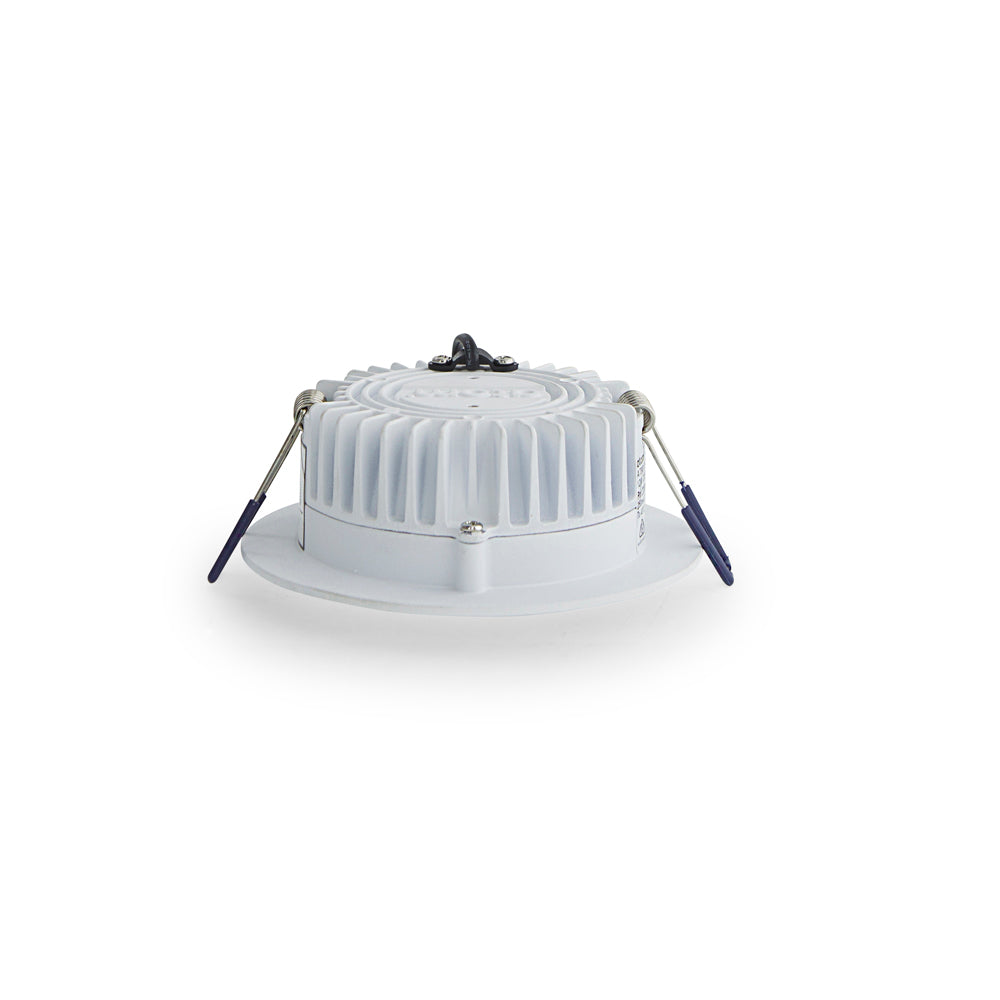

Atom AT9012 12W LED COB Downlight with Dimmable Driver
SKU: AT9012/WH/COB/WW
Regular price
- Unit price
- / per
Fast Shipping from $7.90
Secure payments
Quantity selected exceeds current stock
Tax included.Shipping calculated at checkout.
Description
12W LED COB Downlight With Dimmable Driver
- Ideal for residential, retail, showroom and decorative lighting applications

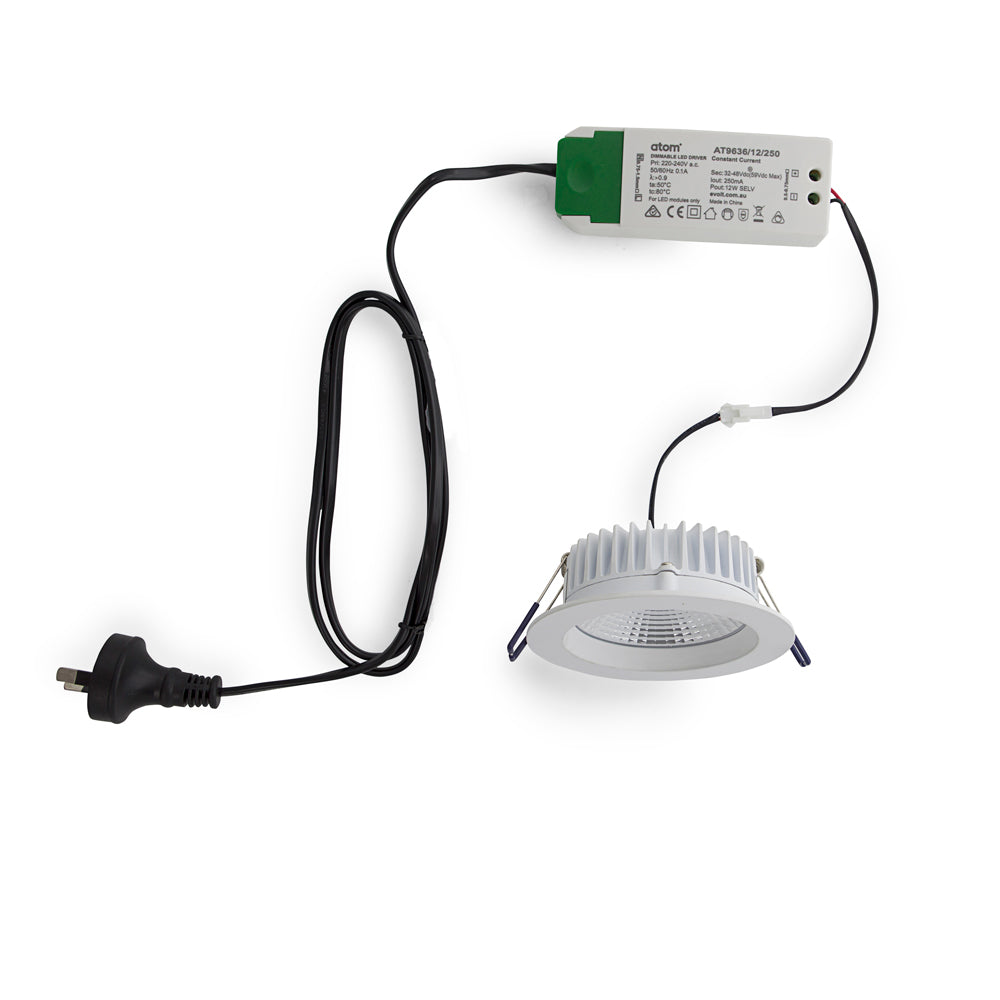

- Supplied with a dimmable LED driver
- Long life and durability
- Suitable for 24 hour use
- Easy to install
- Ideal for Residential, retail, and decorative
| Cutout | 92 mm |
|---|---|
| Product Diameter | 110 mm |
| Product Height | 37 mm |
Efficiencies
| Total System Efficiency | 81 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Product Finish | Power coated |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP44 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 12 W |
| Power Factor | 0.9 |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|

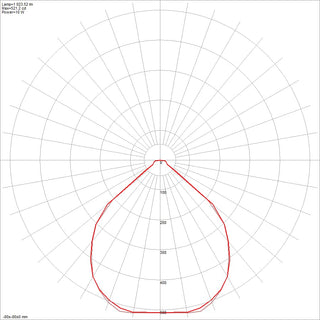

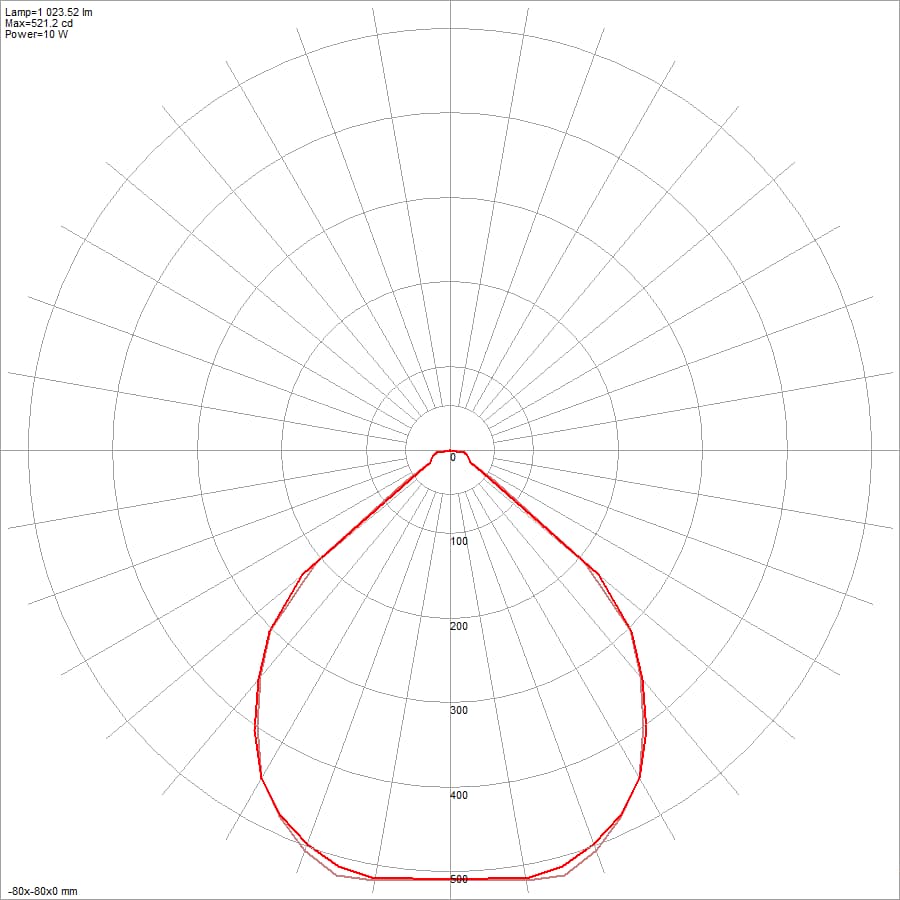

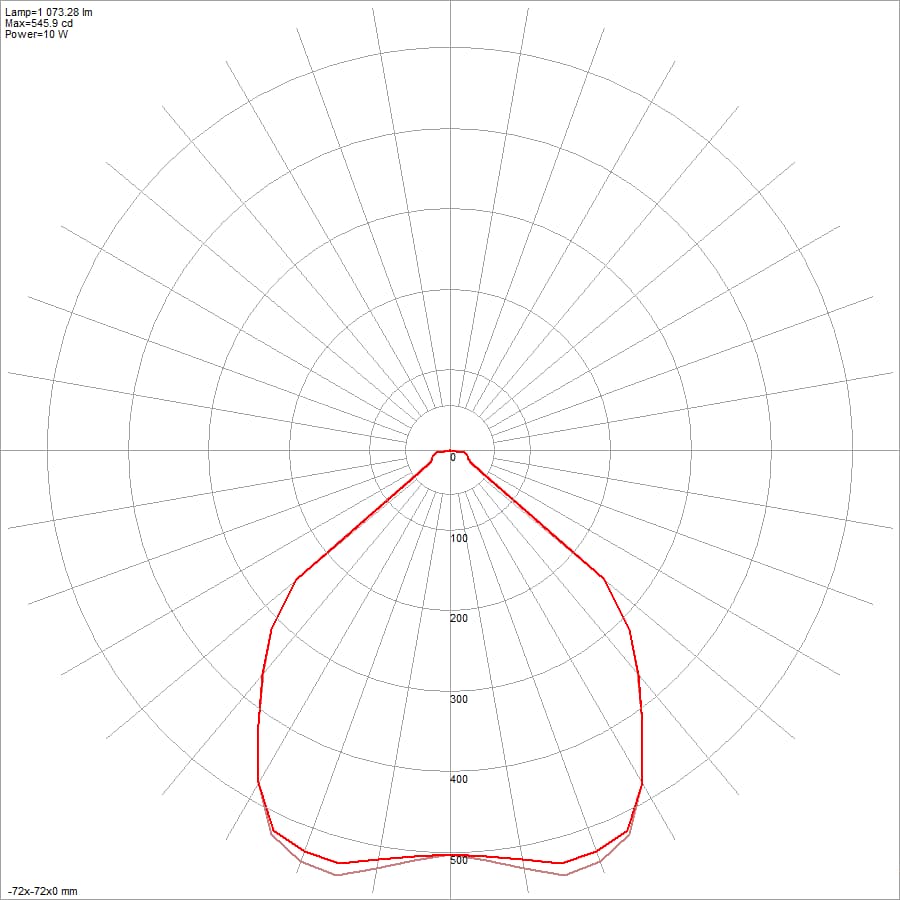

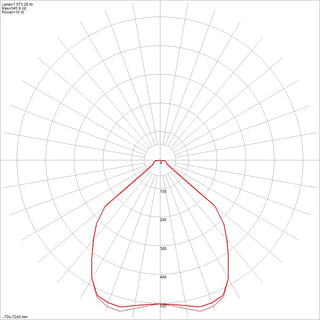

| Beam Angle | 90 ° |
| CCT Configuration | Single |
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | 350 mA |
| LED Type | COB |
| Number of Lamps | 1 |
LED Lifetime
| LED Lifetime | 50000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT | 3000 K or 4000K |
|---|---|
| CCT Colour | Warm White or Cool White |
| Luminaire Lumens | 1220 lm or 1150 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Dimmable | Yes |
|---|---|
| Driver Code | 10974 |
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Type | Dimmable ( Phase cut) |
| Driver Warranty | 3 Yr |
| Flex & Plug or Lead Length | 120 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|
