Atom AT9023 Tri 7W LED Tri-colour Downlight
SKU: AT9023/WH/TRI
Regular price
- Unit price
- / per
Atom AT9023 Tri 7W LED Tri-colour Downlight
SKU: AT9023/WH/TRI
Regular price
- Unit price
- / per
Fast Shipping from $7.90
Secure payments
Quantity selected exceeds current stock
Tax included.Shipping calculated at checkout.
Description
7W LED Tri-Colour Downlight With Dimmable Driver
- 90 Degree Beam angle

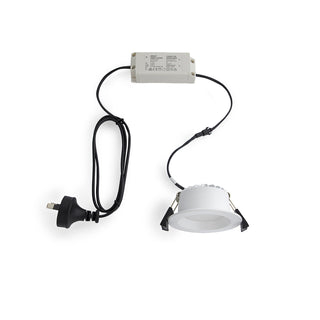

- Supplied with Dimmable LED Driver
- Ideal for Residential, retail, showroom and decorative
Efficiencies
| Total System Efficiency | 77 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | Powdercoated |
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 7 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >90 |
|---|---|
| Number of Lamps | 1 |
| LED Type | Diffused |
| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Maximum Bulb Wattage | 7 W |
| Beam Angle | 90 ° |
Colour temperature
| Warm White (3000 K) | 540 lm |
| Cool White (4000 K) | 620 lm |
| DayLight (5700 K) | 590 lm |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | Yes |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Current | 230 mA |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
