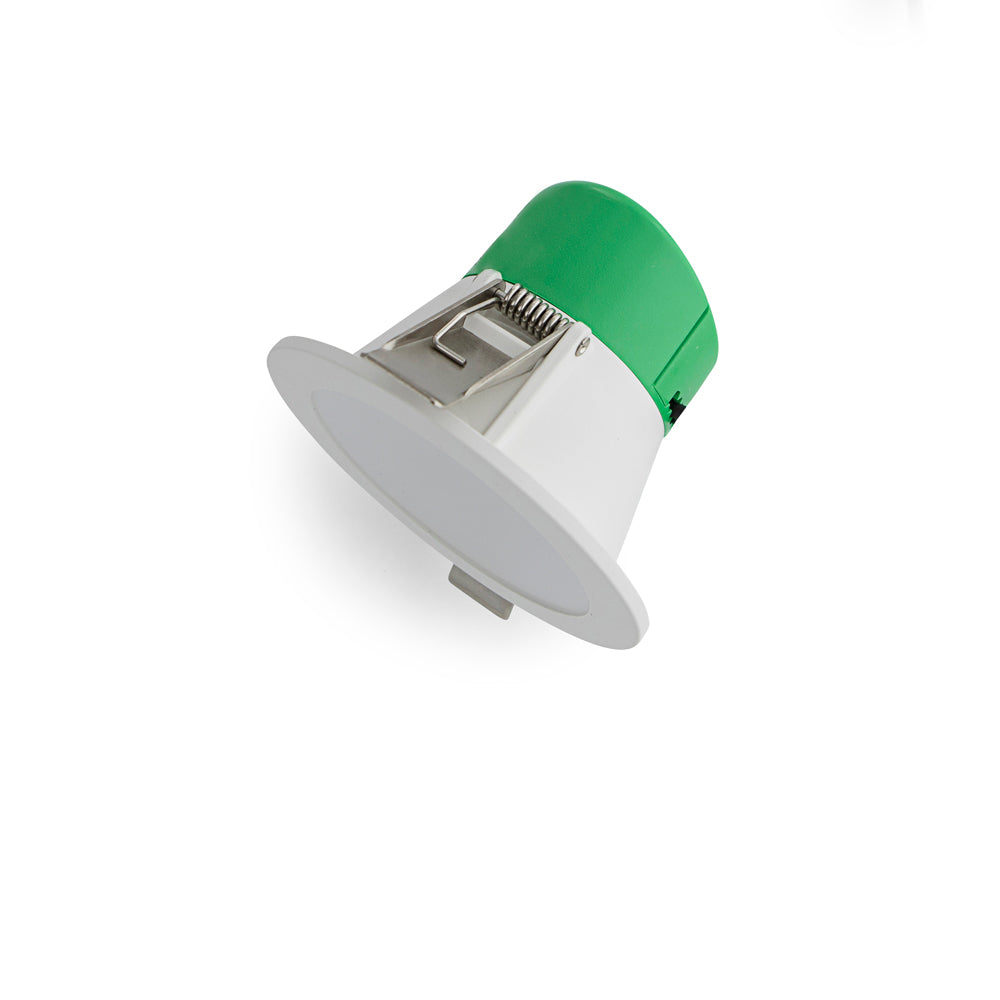

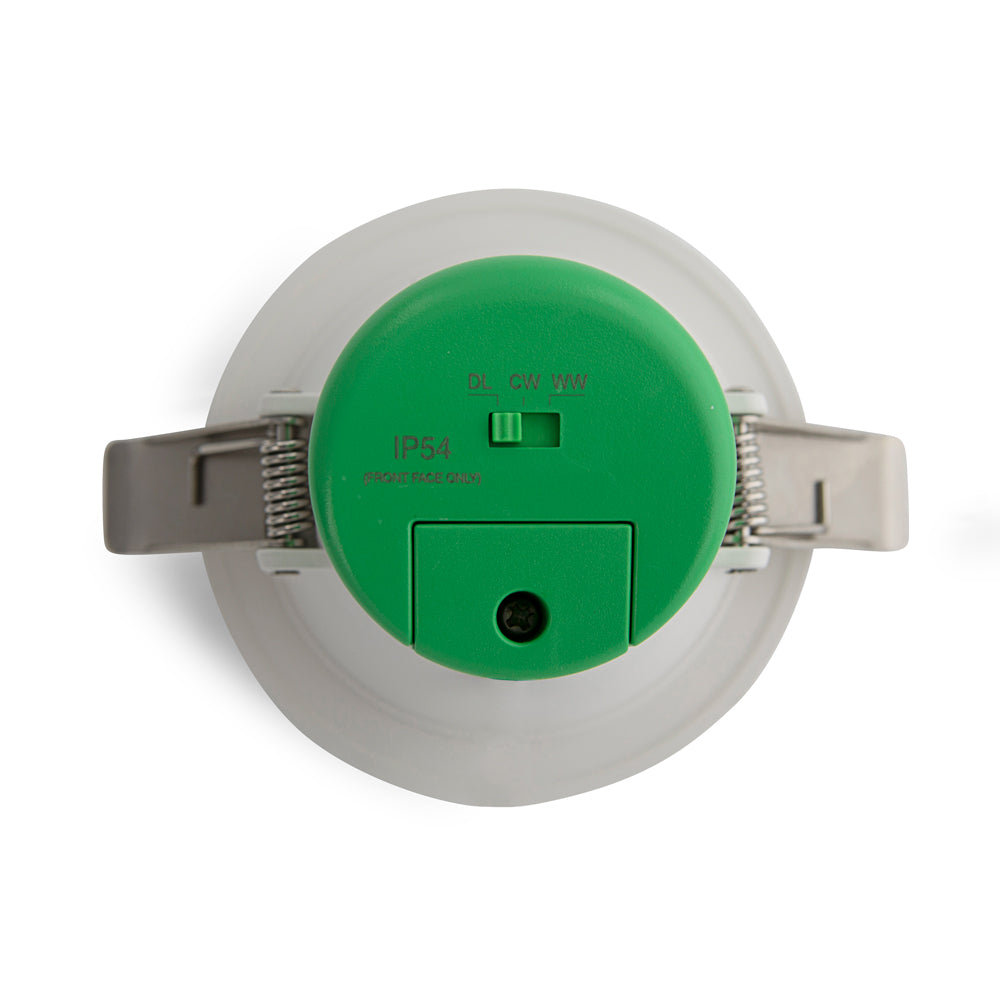

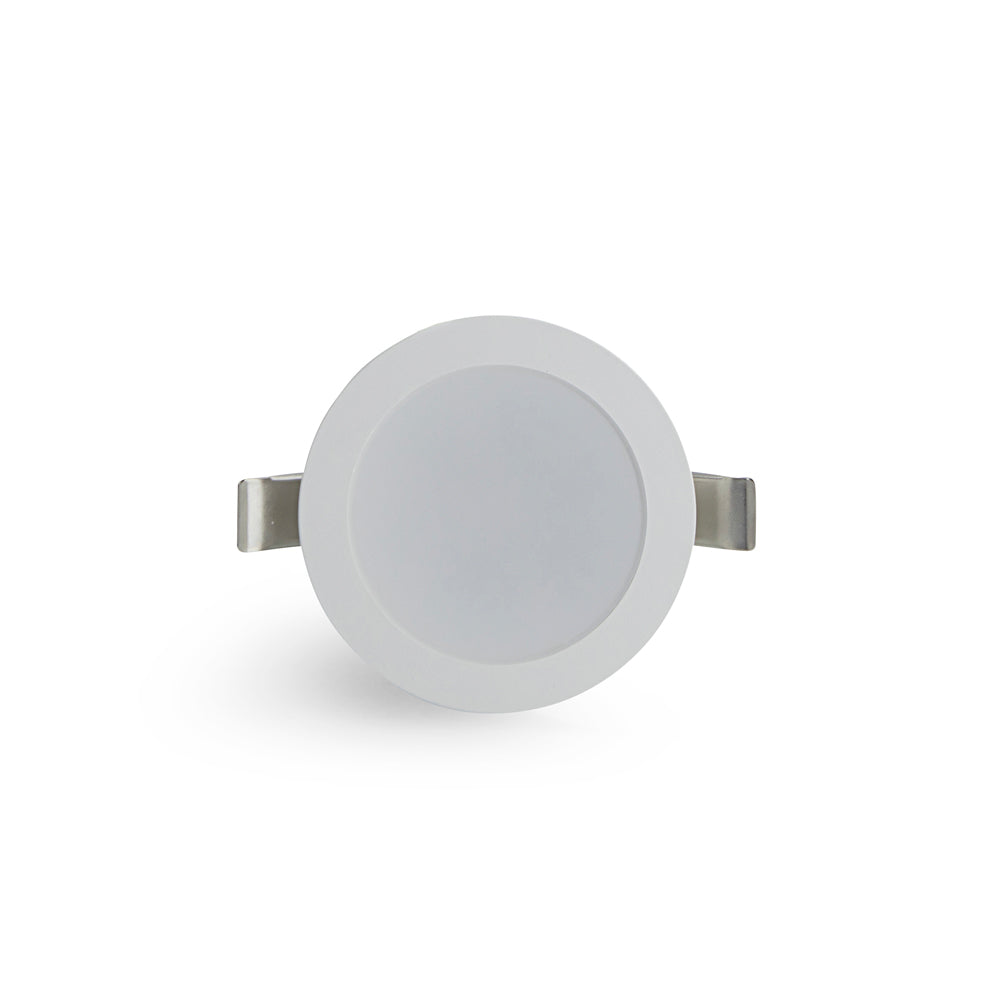

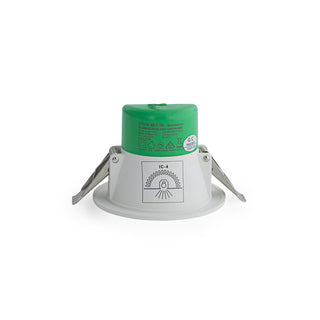

Atom AT9038 7W LED Downlight
SKU: AT9038/WH/F/TRI
Regular price
- Unit price
- / per
Atom AT9038 7W LED Downlight
SKU: AT9038/WH/F/TRI
Regular price
- Unit price
- / per
Fast Shipping from $7.90
Secure payments
Quantity selected exceeds current stock
Tax included.Shipping calculated at checkout.
Description
7W LED Downlight With Dimmable Integrated Driver – Tri Colour
- Built in Driver
- Ideal for Residential, retail, showroom and decorative
- Seamless Look
| Product Height | 63 mm |
|---|---|
| Cutout | 70 mm |
| Product Diameter | 85 mm |
Efficiencies
| Total System Efficiency | 93 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | Powdercoated |
| Body Material | Aluminium |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 7 W |
| System Max Wattage | 7 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Number of Lamps | 1 |
| LED Type | Diffused |
| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Beam Angle | 90 ° |
Colour temperature
| Warm White (3000 K) | 560 lm |
| Cool White (4000 K) | 650 lm |
| DayLight (5700 K) | 600 lm |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
