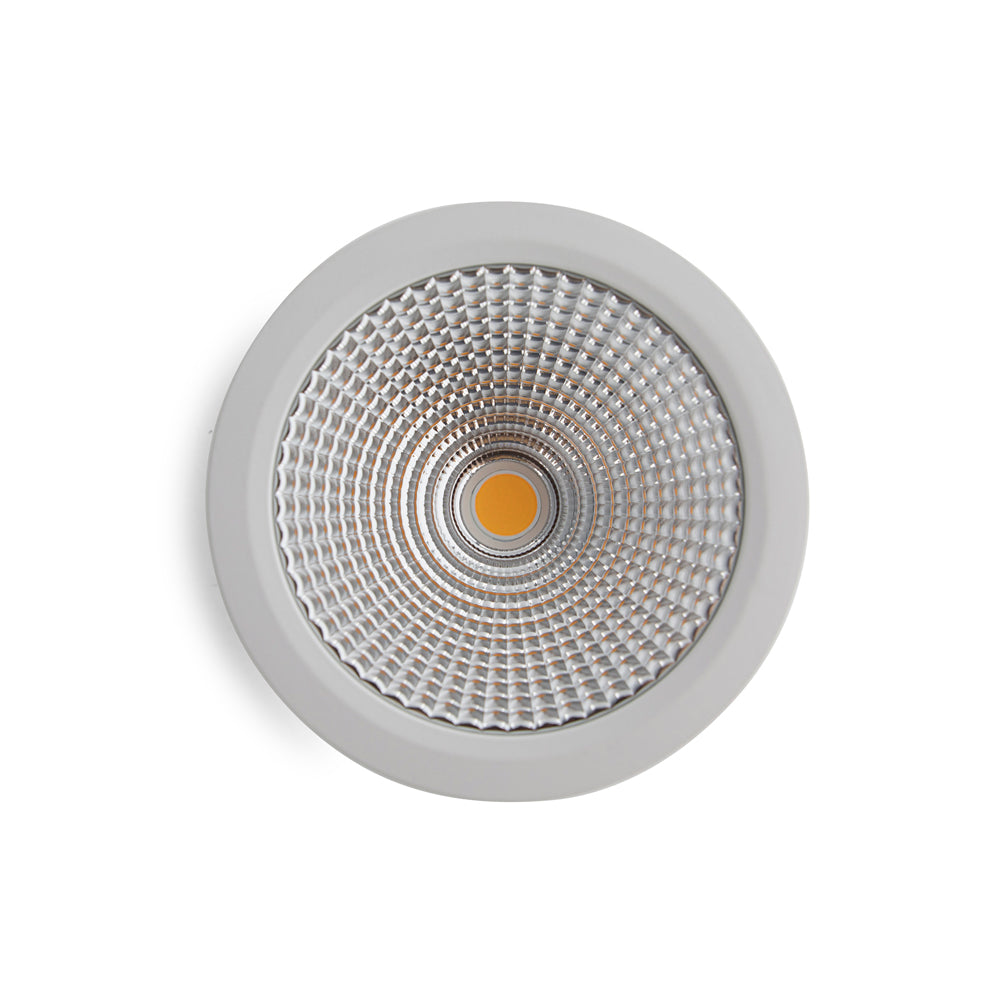

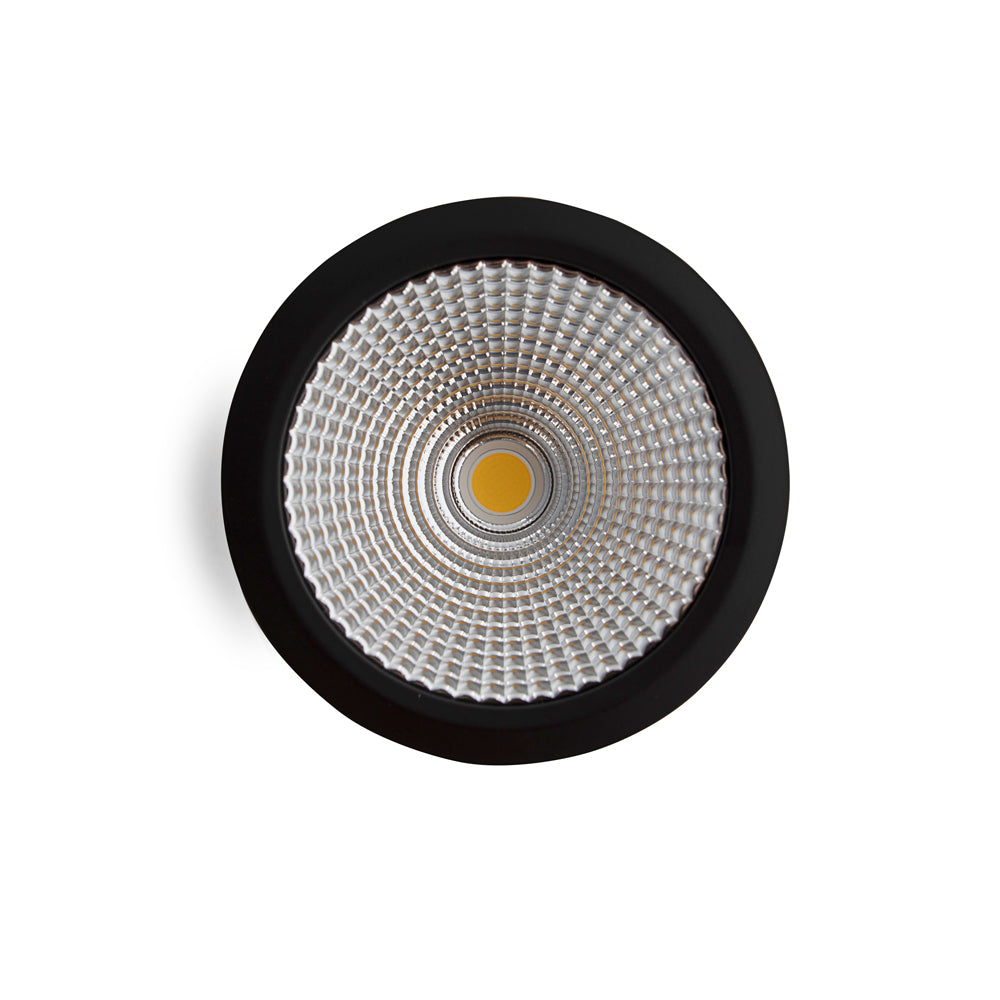

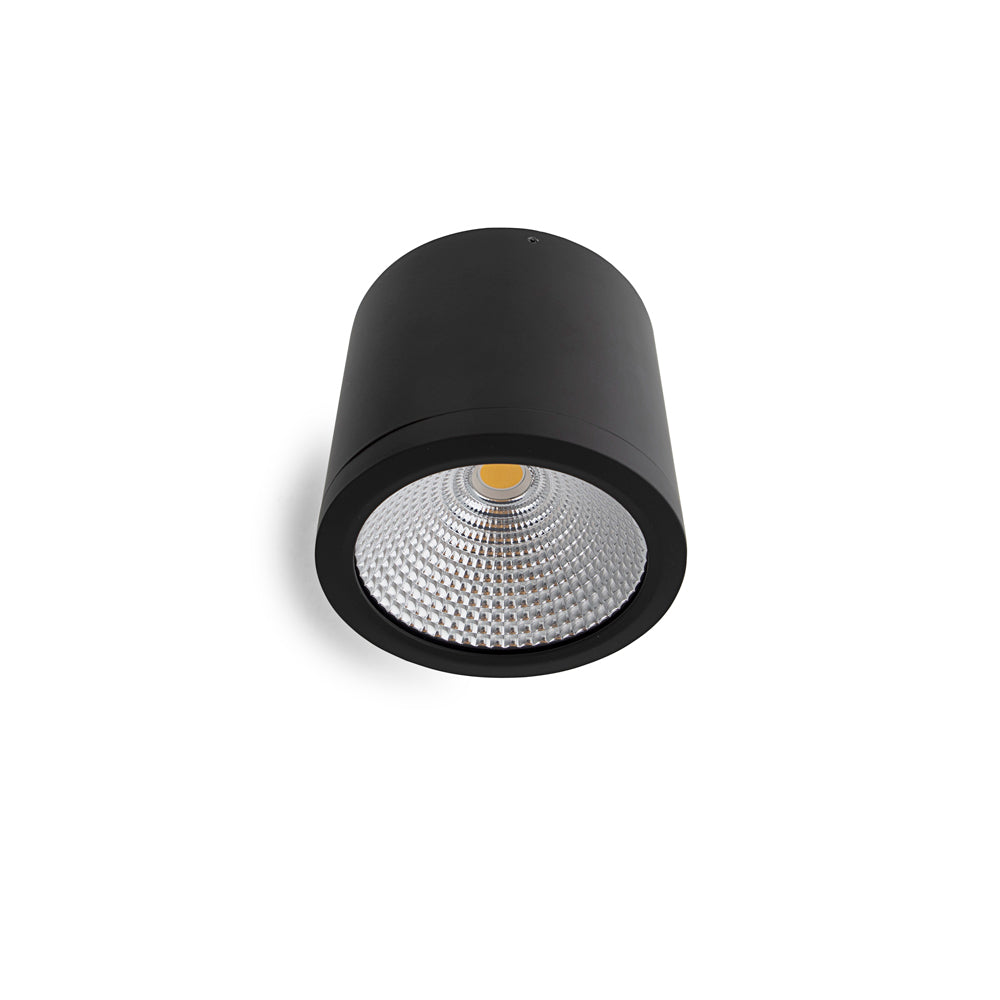

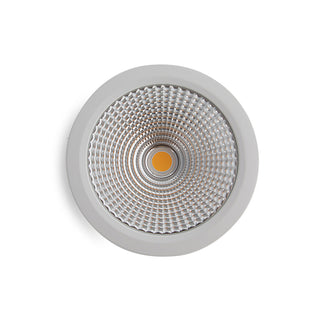

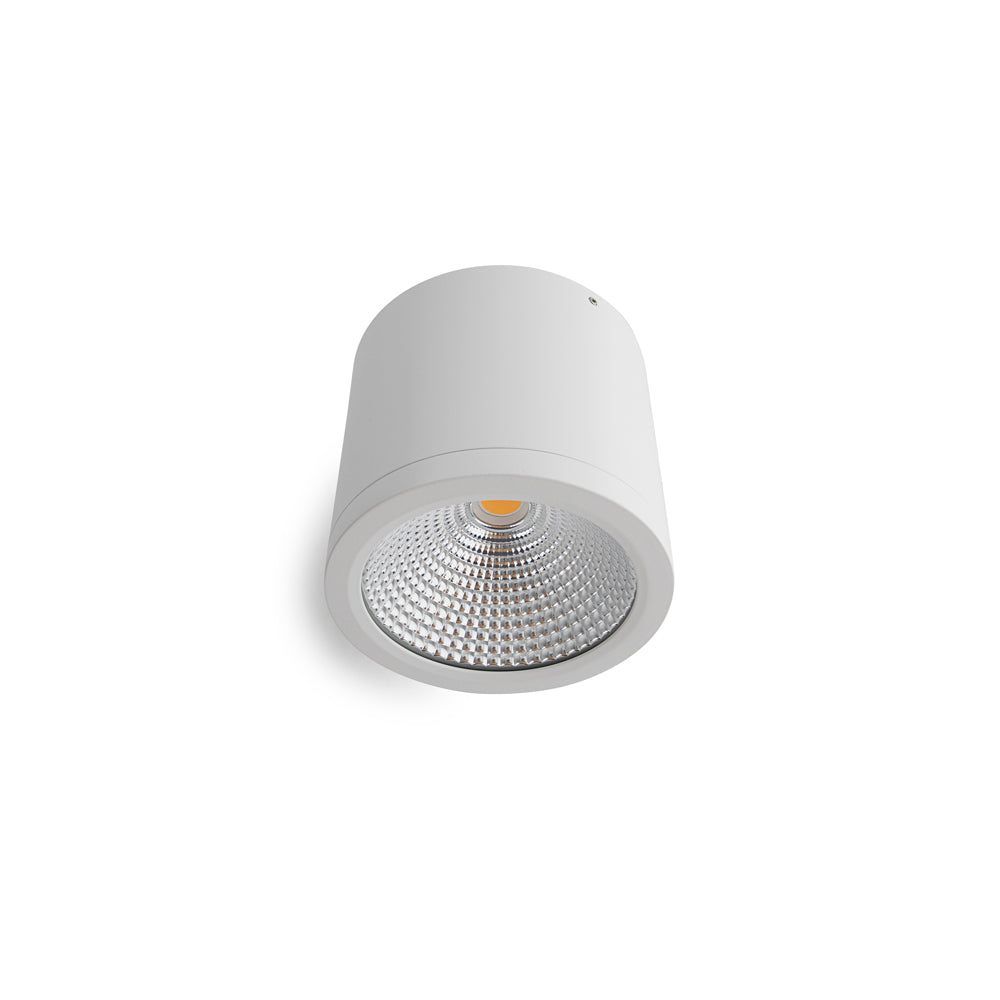

Atom AT9065 25W LED Downlight dimmable surface mount
SKU: AT9065/WH/60/WW
Regular price
- Unit price
- / per
Atom AT9065 25W LED Downlight dimmable surface mount
SKU: AT9065/WH/60/WW
Regular price
- Unit price
- / per
Fast Shipping from $7.90
Secure payments
Quantity selected exceeds current stock
Tax included.Shipping calculated at checkout.
Description
Features
- Integrated COB LED
- Ideal for commercial, retail, showroom and decorative
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | Glass |
| Product Finish | White |
| Fitting Colour | |
| AT9065/BLK/60/CW AT9065/BLK/60/WW |
Black |
| AT9065/WH/60/CW AT9065/WH/60/WW |
White |
| Installation Type | Surface mount |
| IP Rating | IP54 Front Face Only |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 25 W |
| Switch Type | Inline |
| Working Temp Range | -20 to 45 °C |
Lamp
| Beam Angle | 60 ° |
|---|---|
| CCT Configuration | Single |
| CRI | >80 |
| LED Type | COB |
| Number of Lamps | 1 |
LED Lifetime
| LED Lifetime | 40000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT | |
|---|---|
| AT9065/BLK/60/WW AT9065/WH/60/WW |
3000 K |
| AT9065/BLK/60/CW AT9065/WH/60/CW |
4000 K |
| CCT Colour | |
| AT9065/BLK/60/CW AT9065/WH/60/CW |
Cool White |
| AT9065/BLK/60/WW AT9065/WH/60/WW |
Warm White |
| System Lumens | |
| AT9065/BLK/60/WW AT9065/WH/60/WW |
2580 lm |
| AT9065/BLK/60/CW AT9065/WH/60/CW |
2670 lm |
| All photometric data has a tolerance of ±10%. | |
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Type | Dimmable ( Phase cut) |
Compliance
| Standards |
|
|---|
Warranty
| Commercial Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| Domestic Use Warranty | 3 (Yr) RTB |
| Product Diameter | 120 mm |
|---|---|
| Product Height | 110 mm |
