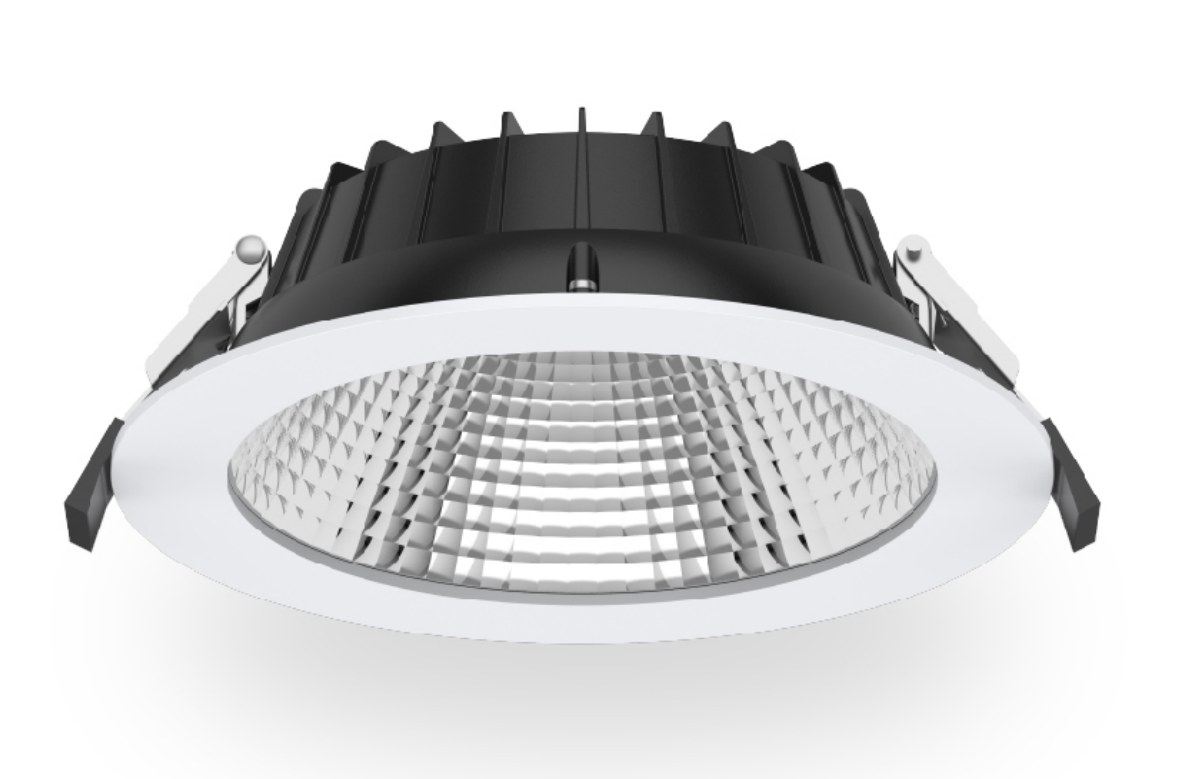

Atom AT9087 SER II 16W Commercial Low Glare LED Downlight Dimmable

$139.00
SKU AT9087/16/WH/TRI
Found A Better Price?

Our sale price is designed to be the best deal around, but if you've seen a cheaper price elsewhere, please let us know.

16W Commercial Low Glare LED downlight with dimmable driver – Tri-colour

  • Energy efficient LED
  • Sophisticated optics for low glare lighting
  • Modern reflector design
  • Phase-cut dimmable
  • Tri-CCT selectable

Efficiencies

Total System Efficiency 127 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

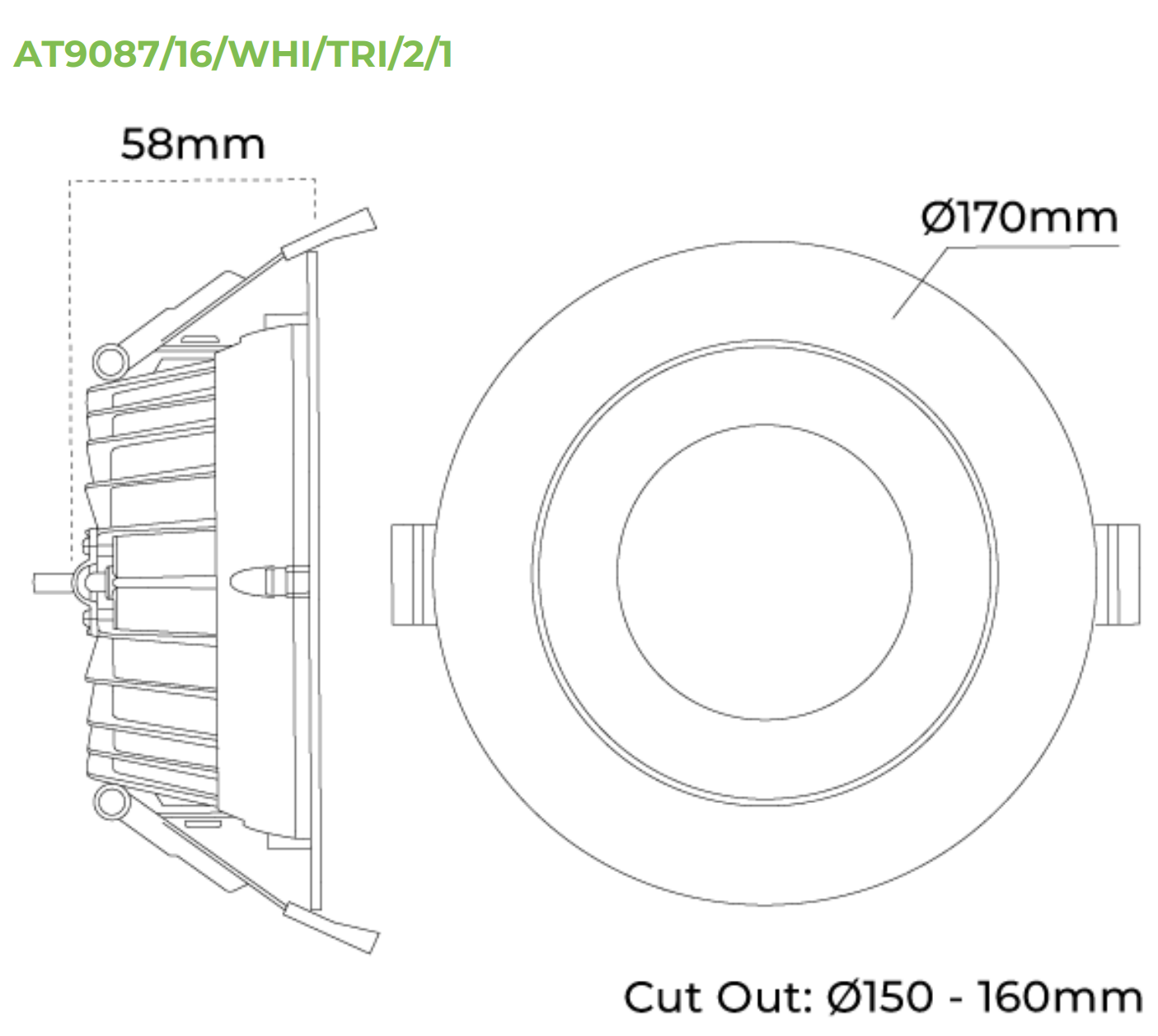

Mechanical

Adjustability Fixed
Product Finish Powdercoated
Fitting Colour White
IC Rating IC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Installation Type Recessed
IP Rating IP44 Front Face Only

Electrical

Electrical Rating Class II
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 16 W
Switch Type Inline
Working Temp Range -10 to 40 °C

Lamp

Macadam Steps (SDCM) 5-step MacAdam Ellipse
Beam Angle 60 °
CCT Configuration TRI-CCT
Colour Rendering Index (CRI) >80
Lamp/LED Current 400 mA
Lamp/LED voltage 36 V
UGR <19



LED Lifetime

LED Lifetime >54,000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
TM-21 Test Hours 9000 hrs

Colour temperature

Warm White (3000K K) 1840 lm
Cool White (4000K K) 2040 lm
DayLight (5700K K) 2000 lm

Driver

Dimmable Yes
Driver Included Yes
Integrated Driver No
Driver Mode Constant Current
Driver Type Dimmable ( Phase cut)
Flex & Plug or Lead Length 1200 mm
Wiring Type Re-wireable Flex & Plug (2 pin)

Energy Savings Scheme

Ipart Approval Yes
REES Approval Yes
VEU Approval Yes

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Domestic Use Warranty 3 (Yr) RTB
