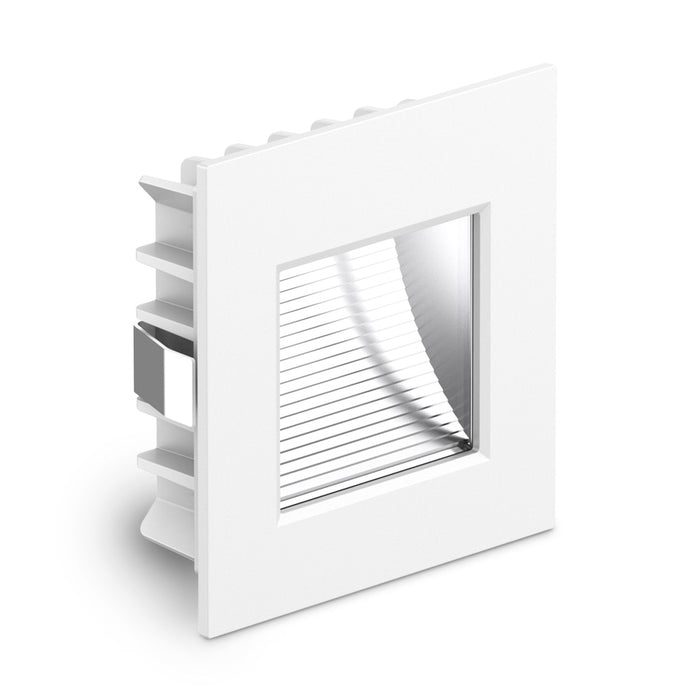

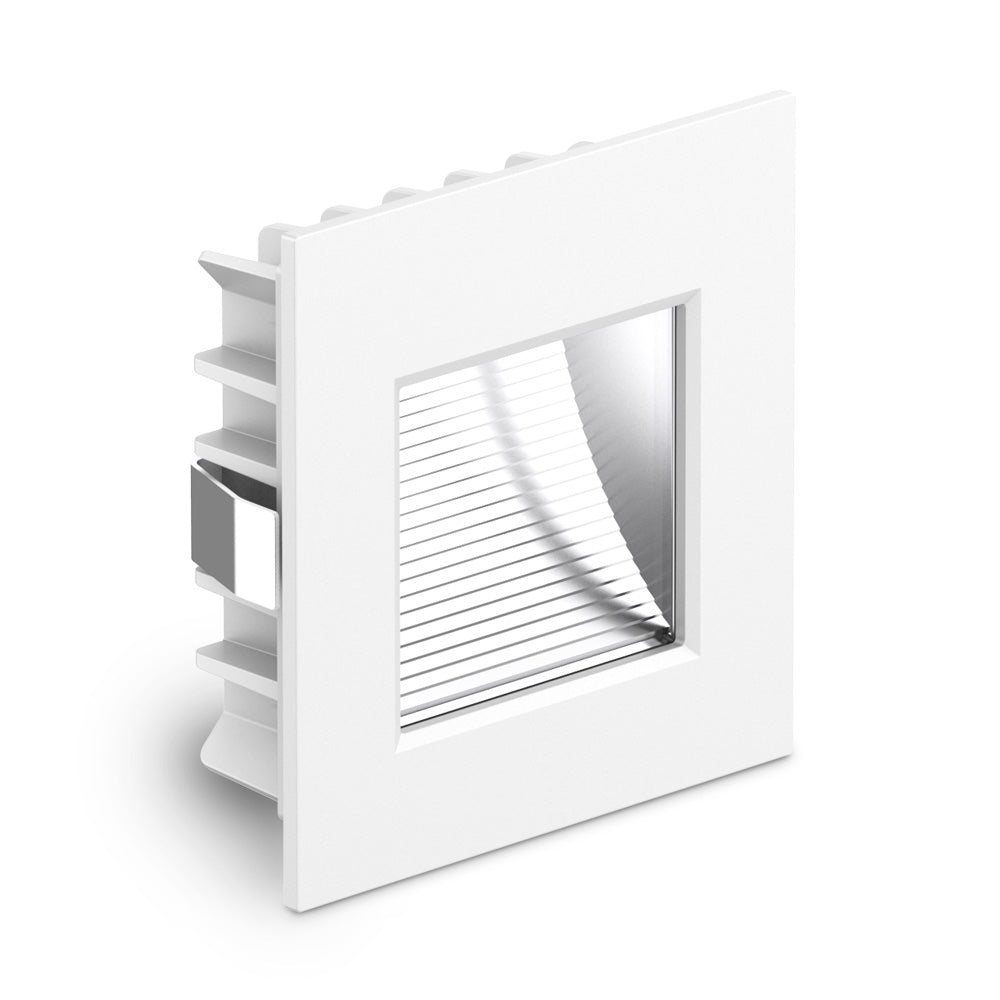

Atom AT9500 24VDC 3W LED Square Recessed Step Light

by Atom Lighting
SKU: AT9500/24V/WH/WW/C
$44.00
Atom AT9500 24VDC 3W LED Square Recessed Step Light
Atom AT9500 24VDC 3W LED Square Recessed Step Light
Atom AT9500 24VDC 3W LED Square Recessed Step Light
Atom AT9500 24VDC 3W LED Square Recessed Step Light

Atom AT9500 24VDC 3W LED Square Recessed Step Light

by Atom Lighting
SKU: AT9500/24V/WH/WW/C
$44.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

  • Ideal for residential and commercial lighting applications
  • Suitable for recessed installation
  • Ideal for lighting stairs, walkways and corridors.

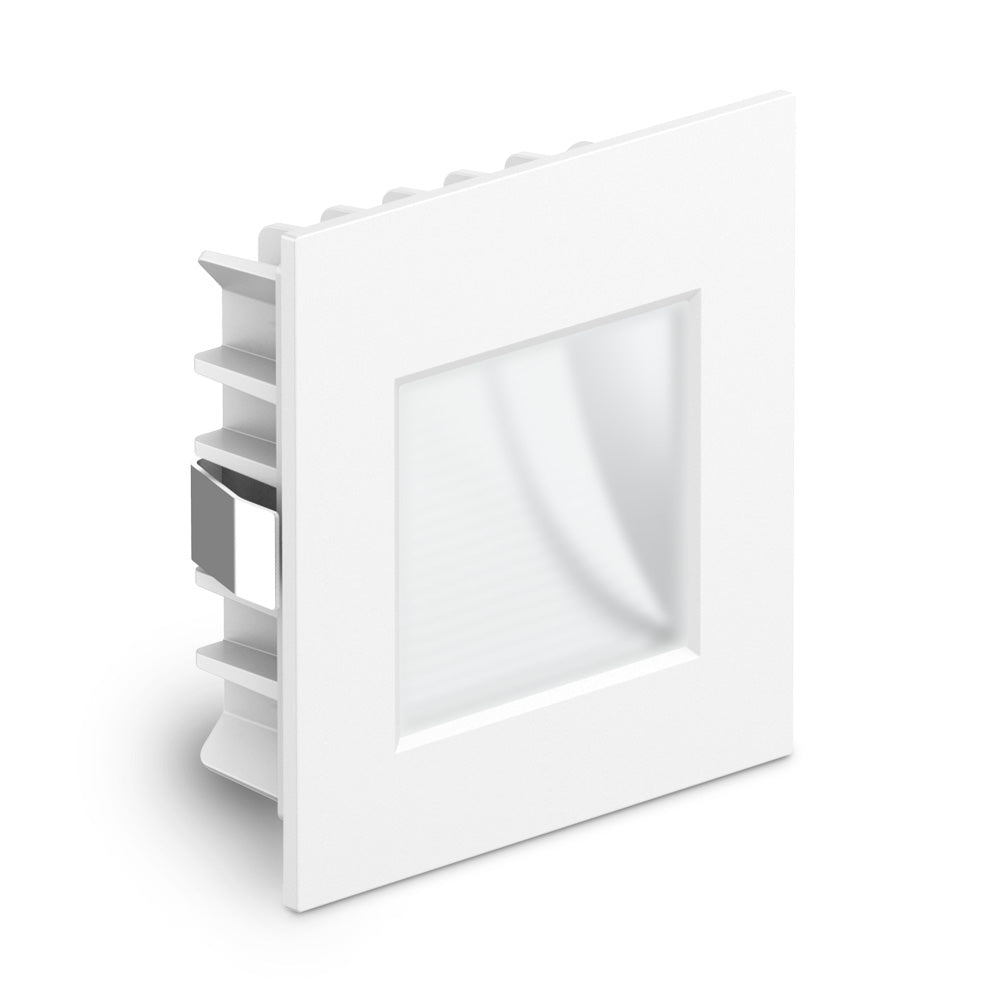

  • Avaliable in Clear and Opal diffused lens
  • Low voltage (24V DC) operation
  • 24V Driver sold seperately

Mechanical

Adjustability Fixed
Body Material Aluminium
Diffuser Material Glass
Product Finish Clear
Fitting Colour White
IC Rating IC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Installation Type Recessed
IP Rating IP54

Electrical

Input voltage 24V DC
Maximum Wattage 3 W

Lamp

CCT Configuration Single
Colour Rendering Index (CRI) >80
Lamp/LED Current 155 mA
Lamp/LED voltage 24 V
LED Type Diffused
Number of Lamps 1

LED Lifetime

LED Lifetime 50000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT 4000 K
CCT Colour Cool White
Luminaire Lumens 150 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

Driver Included No
Integrated Driver No
Driver Type Fixed output
Flex & Plug or Lead Length 2m mm
Wiring Type Flying leads (2 wire)

Warranty

Domestic Use Warranty 3 RTB (Total 3 Years)
