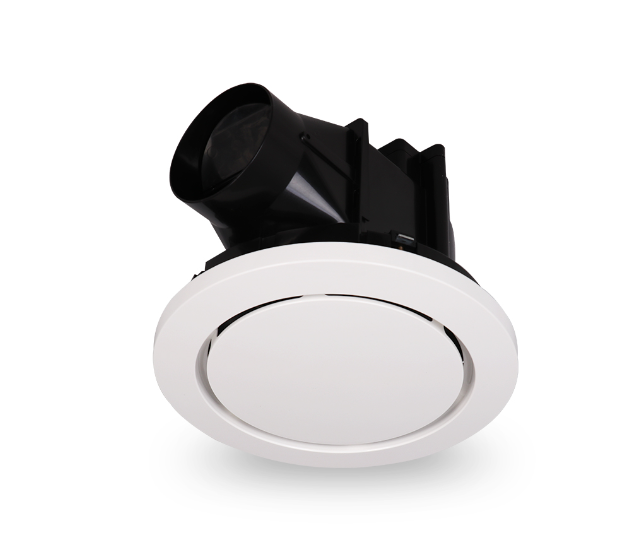

Atom Eclipse 240mm 30W Ducted Round Exhaust Fan

SKU: ECLIPSE/240/WH/RD
Regular price $89.00 $73.80 17% off
Unit price
per
Sale

Atom Eclipse 240mm 30W Ducted Round Exhaust Fan

SKU: ECLIPSE/240/WH/RD
Regular price $89.00 $73.80 17% off
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
Keep your air fresh and healthy with the Eclipse ducted exhaust fan. Supplied with flex and plug for DIY installation, the Eclipse has an easy to clean matte white fascia, with square and black options also available.
  • Powerful ball bearing motor for superior reliability
  • Enjoy quiet operation
  • Supplied with flex and plug for easy DIY installation
  • 3-year return to base warranty for peace of mind
  • Draught stopper for improved energy efficiency

Mechanical

Product Finish Matt
Fitting Colour White
Installation Type Recessed
IP Rating IPx4

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Exhaust

Outlet 100 mm
Noise level 42 dB
Motor Wattage 30 W
Motor Type Ball bearing
Fan Type Centrifugal
Fan Size 240
Air extraction 270 m3/hr

Driver

Flex & Plug or Lead Length 900 mm
Wiring Type Re-wireable Flex & Plug (3 pin)

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use 2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14.1

Warranty

Domestic Use Warranty 3 RTB (Total 3 Years)
Warranty Operating Hours 2500 hrs

This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

exh
Item Code Minimum Ceiling Depth Cutout Product Height Product Length Product Width
ECLIPSE/240/WH/RD 220 mm 240 mm 195 mm 270 mm 270 mm
