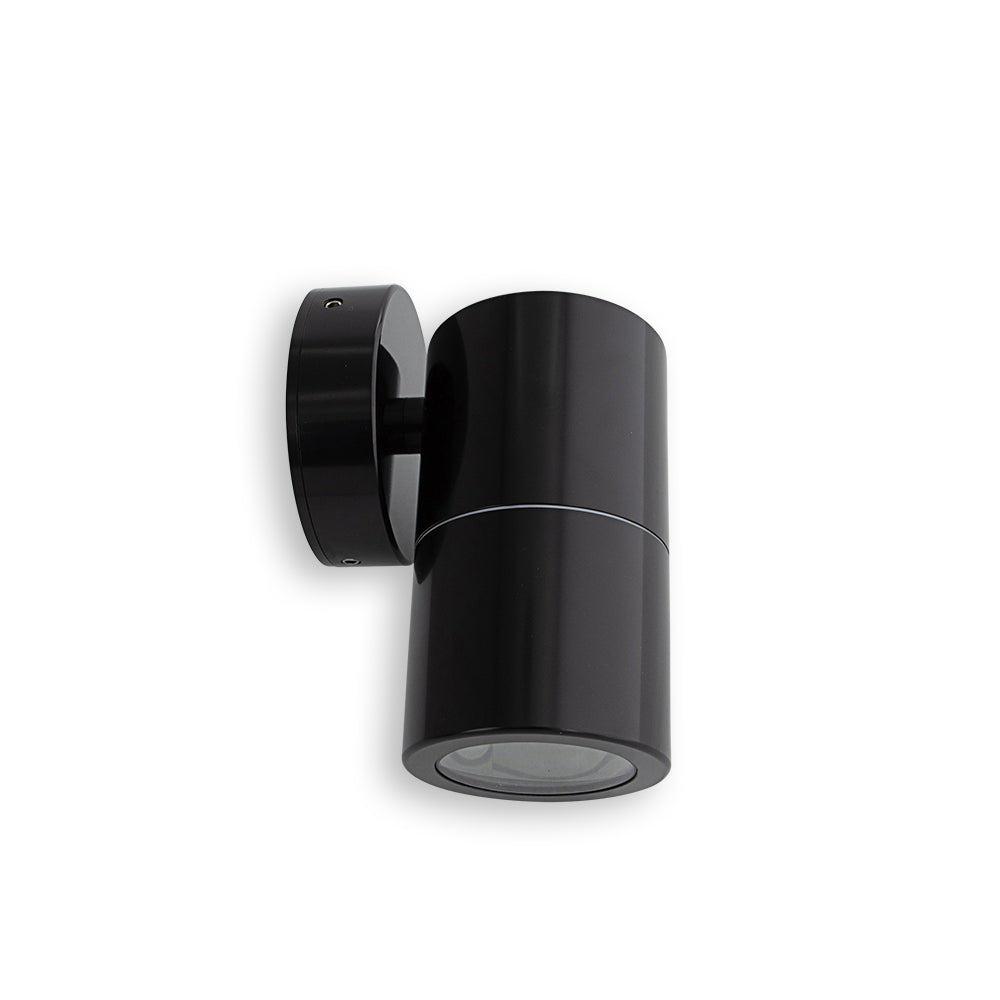

Atom LighAT5006 Fixed wall Spot with Glass Diffuser GU10 LED lamp includedting
Save 41%
Original Price
$160.00
Current Price
$95.00
SKU AT5006/AND/BLK/LED
Found A Better Price?
Our sale price is designed to be the best deal around, but if you've seen a cheaper price elsewhere, please let us know.
- Discrete installation of sets screws
- Tempered Glass lens
- Elegant Design
- Suitable for coastal environments
Specifications
Efficiencies
| Total System Efficiency | 78 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | Glass |
| Product Finish | Anodised |
| Fitting Colour | Black |
| IC Rating | Non-IC |
| Installation Type | Wall mount |
| IP Rating | IP65 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230VAC |
| Maximum Wattage | 6 W |
| Switch Type | Inline |
| System Max Wattage | 6 W |
| Working Temp Range | -20 to 40 °C |
Lamp
| Beam Angle | 36 ° |
|---|---|
| Bulb Type | Inbuilt |
| CCT Configuration | Single |
| Globe Base | GU10 |
| Globe Included | Yes |
| Maximum Bulb Wattage | 6 W |
| Number of Lamps | 1 |
Colour temperature
| CCT | 4000 K |
|---|---|
| CCT Colour | Cool White |
| LED Wattage | 6 W |
| Luminaire Lumens | 470 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Dimmable | No |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Driver Type | Fixed output |
| Wiring Type | Re-wireable terminal block (3 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
