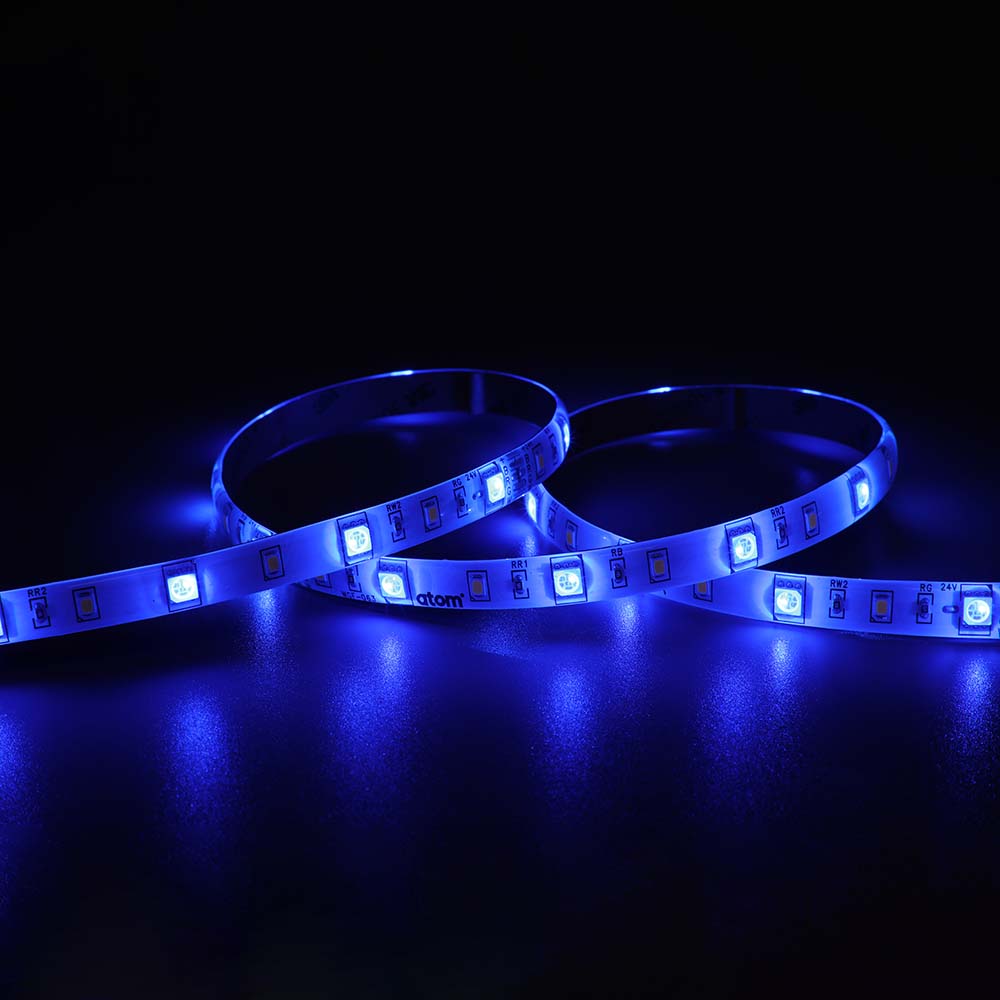

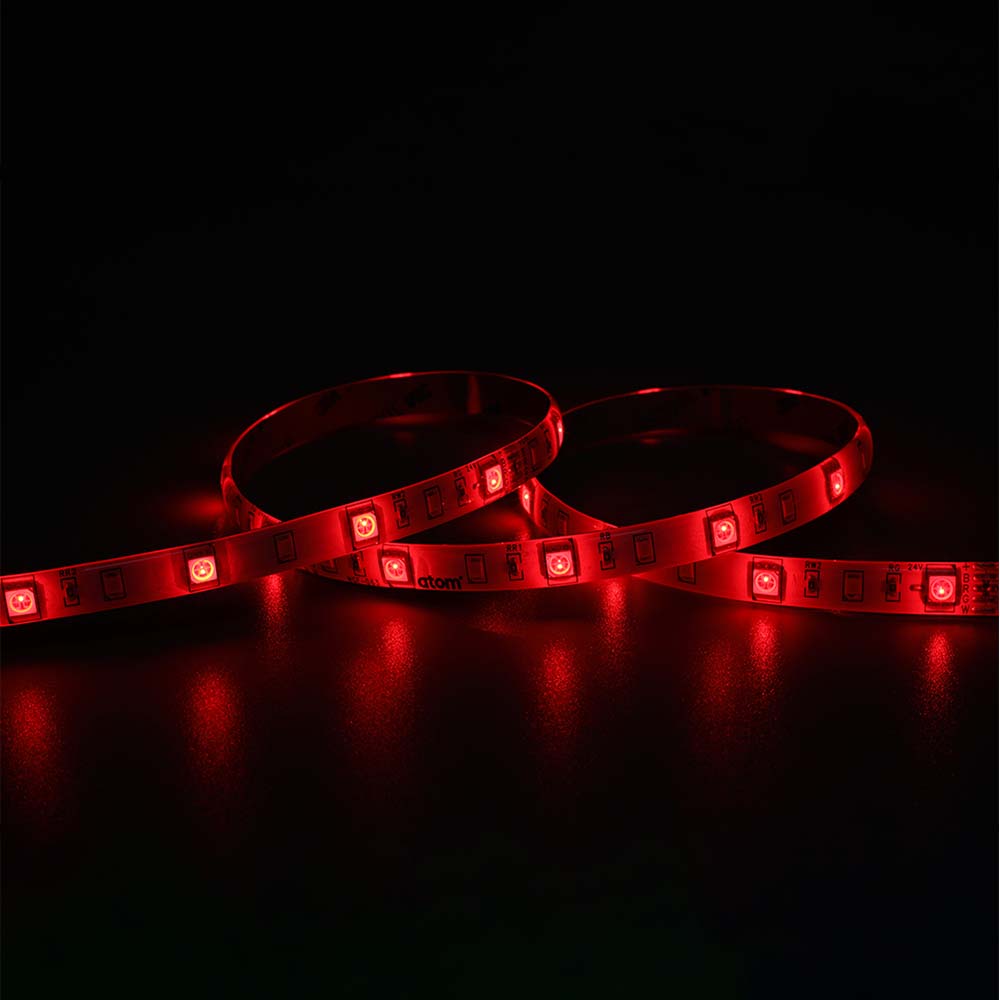

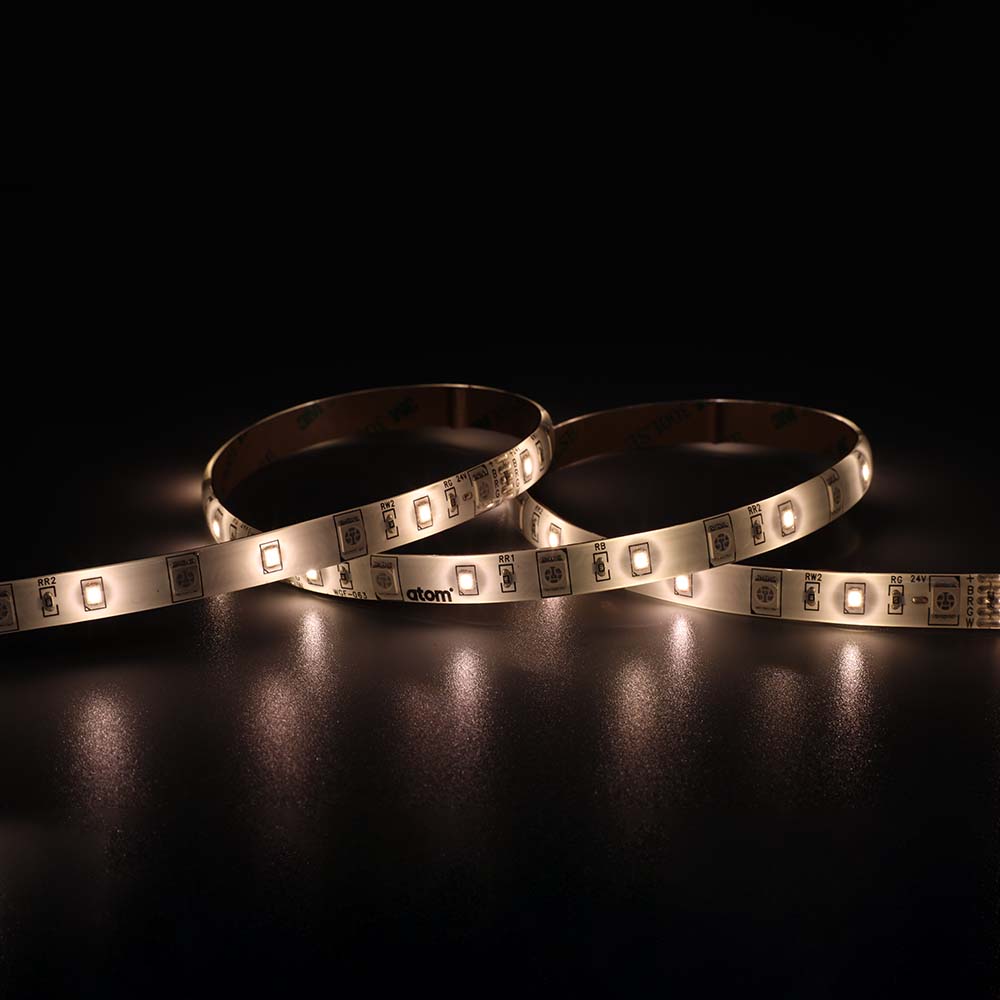

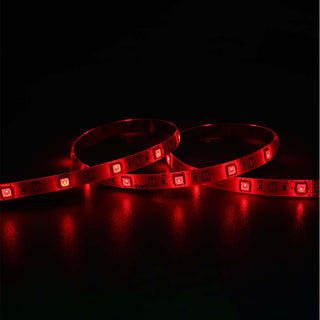

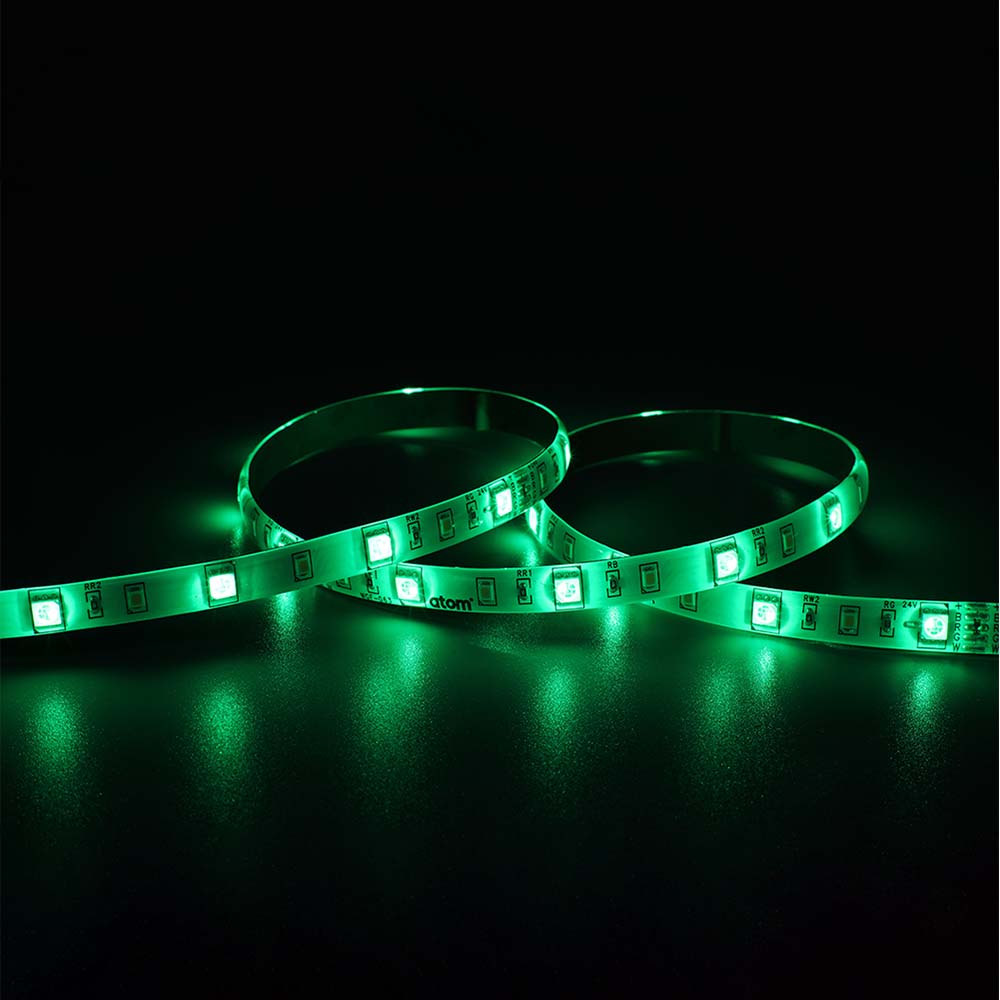

Atom Lighting AT9208 RGBWW LED STRIP KIT IP54 4.8W/m RGBWW
- Unit price
- / per
Atom Lighting AT9208 RGBWW LED STRIP KIT IP54 4.8W/m RGBWW
- Unit price
- / per
- Superior 24V design
- Weather resistant IP54
- Flexible, quality LED housing
- Includes 24V power supply
- D.I.Y. easy install
- Supplied with 3M adhesive tape
Specifications
Mechanical
IP Rating | IP54 |
---|
Electrical
Electrical Rating | Class II |
---|---|
Input Current | 0.5 A |
Input Frequency | 50 Hz |
Input voltage | 230Vac |
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Maximum Wattage | 36 W |
Watts Per Meter (W/m) | 4.8 |
Working Temp Range | 40 °C |
Lamp
CCT Configuration | RGBW |
---|---|
Lamp/LED voltage | 24 V |
LED's per meter | 60 |
Lumens /m | 210 lm/m |
Colour temperature
LED Wattage | 24 W |
---|---|
Luminaire Lumens | 1050 lm |
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. |
Driver
Driver Included | Yes |
---|---|
Driver Mode | Constant Current |
Driver Type | Fixed output |

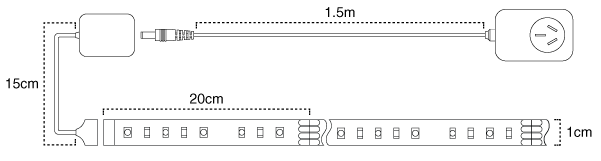

Flex & Plug or Lead Length | 1500 mm |
Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
Product Design Life | 10 years |
---|---|
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
Daily Use | 12 hrs |
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
Standards |
|
Warranty
Domestic Use Warranty | 3 RTB (Total 3 Years) |
---|---|
VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Warranty Operating Hours | 13000 hrs |
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). |
