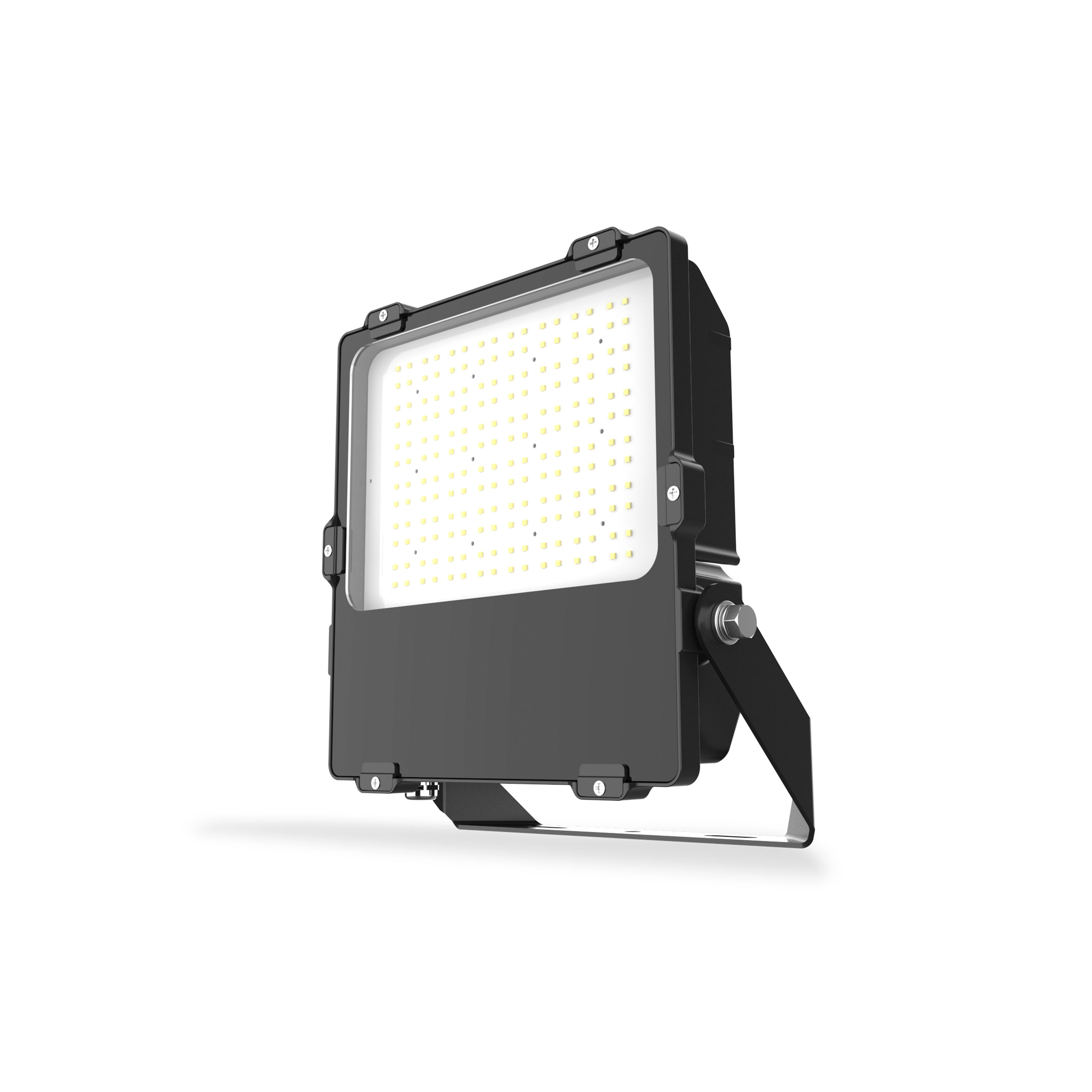

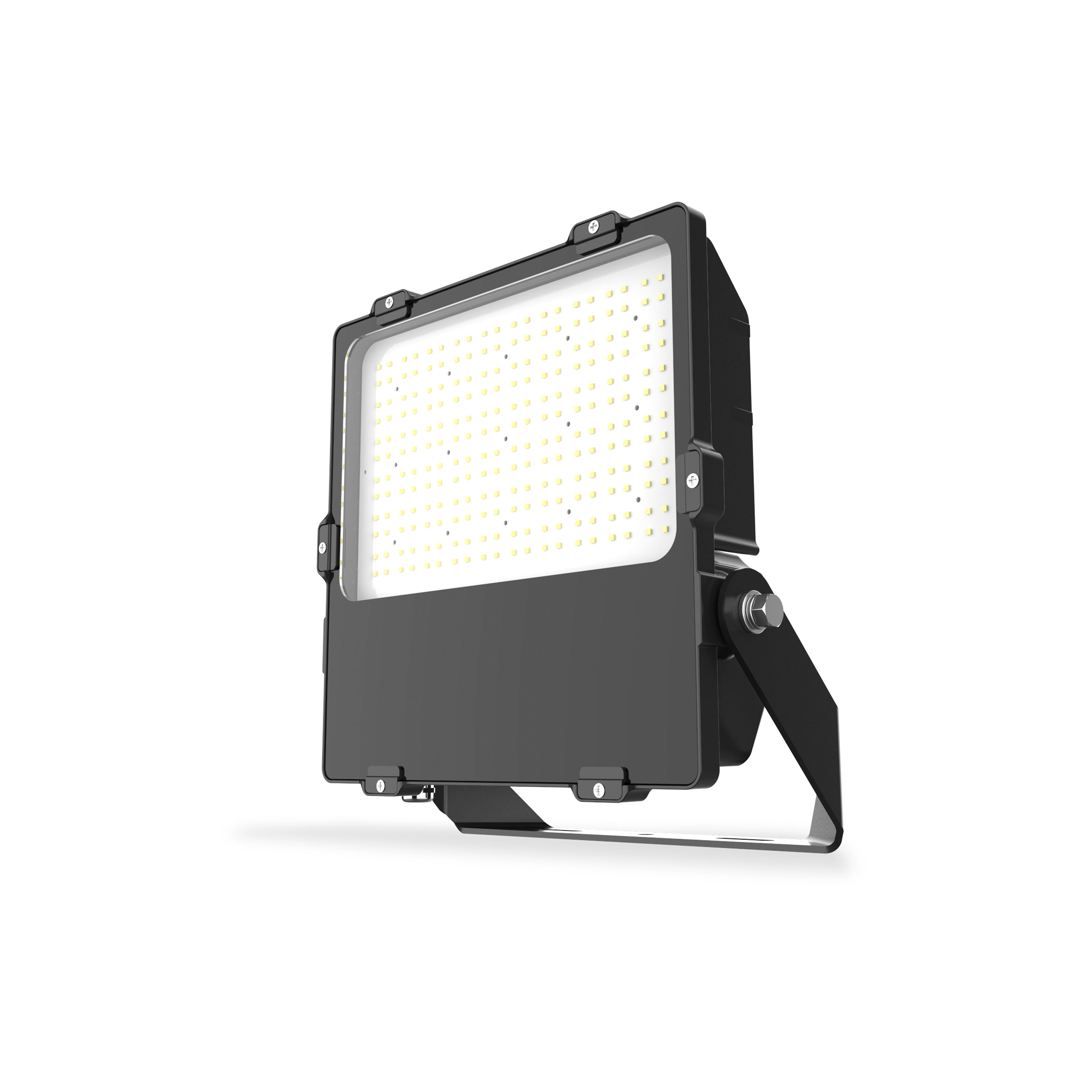

Atom Lighting AT9814 Commercial LED Floodlight

SKU: AT9814/100
Regular price $300.00 $225.00 25% off
Unit price
per
Sale

Atom Lighting AT9814 Commercial LED Floodlight

SKU: AT9814/100
Regular price $300.00 $225.00 25% off
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Ideal for sport venues, car parks and outdoor applications
  • Tempered Glass diffuser – stronger and safer
  • Quick installation
  • Symmetrical light distibution
  • LEDs wired with matrix connections
  • Aluminium cast body with high-quality powder-coated black finish
  • IK08 Rating – resistant to the hard knocks of weather and impact
  • Reduced tolerance between the PCBA and aluminium heatsink ensuring better lifetime

Specifications

Mechanical

Adjustability Adjustable
Body Material Aluminium
Diffuser Material Glass
Product Finish Powdercoated
Fitting Colour Black
IK Rating IK08
Installation Type Surface mount
IP Rating IP66

Electrical

Earth Leakage 0.75 mA
Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Inrush Current 80 A
Inrush Duration 160uS (50%) uS
Maximum Wattage 100 W
Power Factor 0.94
Surge Protection L/N-PE 4kV
Surge Protection L-N 4kV
Switch Type Inline
Working Temp Range -30 to 45 °C

Lamp

Macadam Steps (SDCM) 5-step MacAdam Ellipse
Beam Angle 120 °
CCT Configuration Single
Colour Rendering Index (CRI) >70

LED Lifetime

LED Lifetime 54000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Rating L70 B10 (9K)
TM-21 Test Hours 9000 hrs

Colour temperature

CCT 5000 K
CCT Colour Daylight
LED Wattage 93 W
Luminaire Lumens 14410 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

Dimmable No
Driver Included Yes
Integrated Driver No
Driver Mode Constant Current
Driver Type Fixed output
Flex & Plug or Lead Length 1500 mm
Wiring Type Flying leads (3 wire)

Energy Savings Scheme

Ipart Approval Yes
REES Approval Yes
VEU Approval Yes

Compliance

Daily Use 10 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.5
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Domestic Use Warranty 3 RTB (Total 3 Years)
Operational Lifetime 50000 hrs
VIP Warranty 2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
