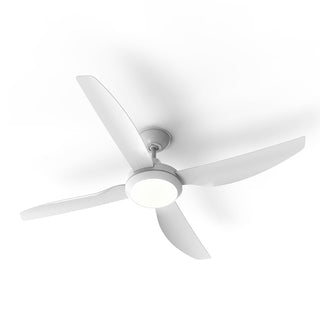

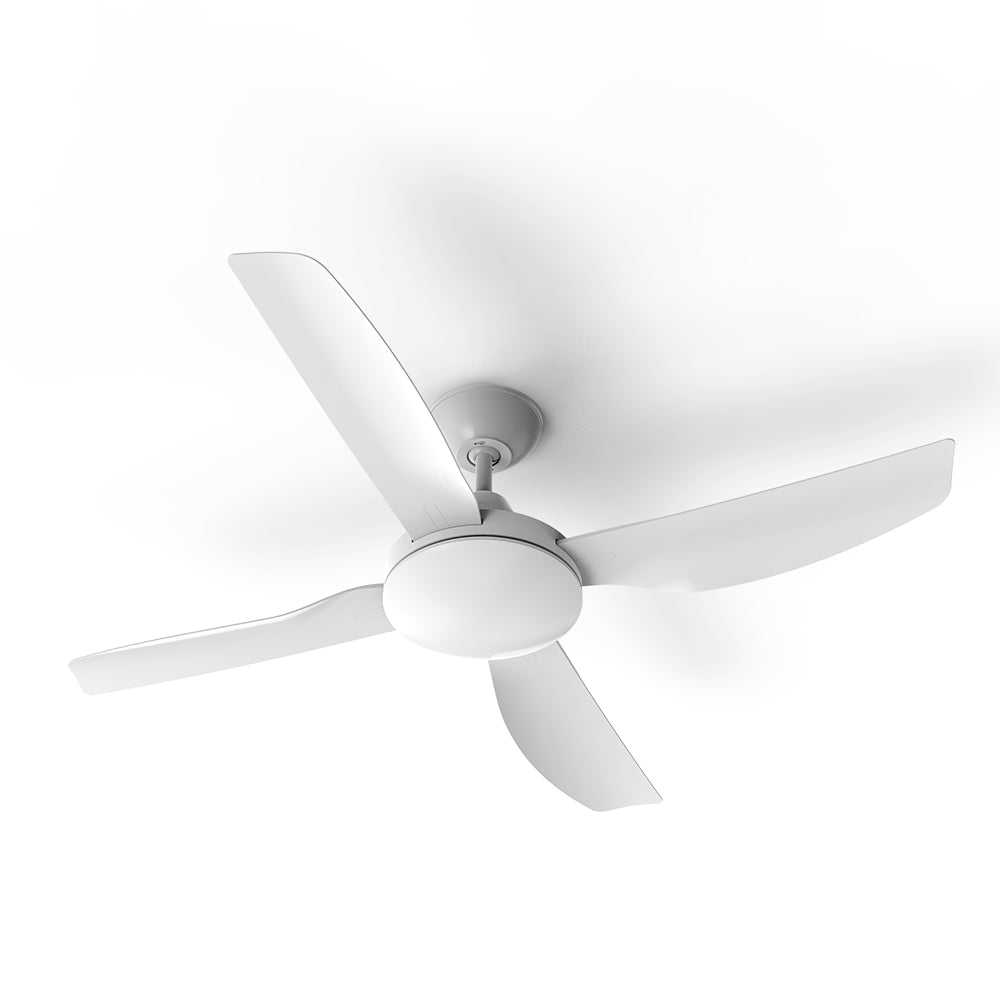

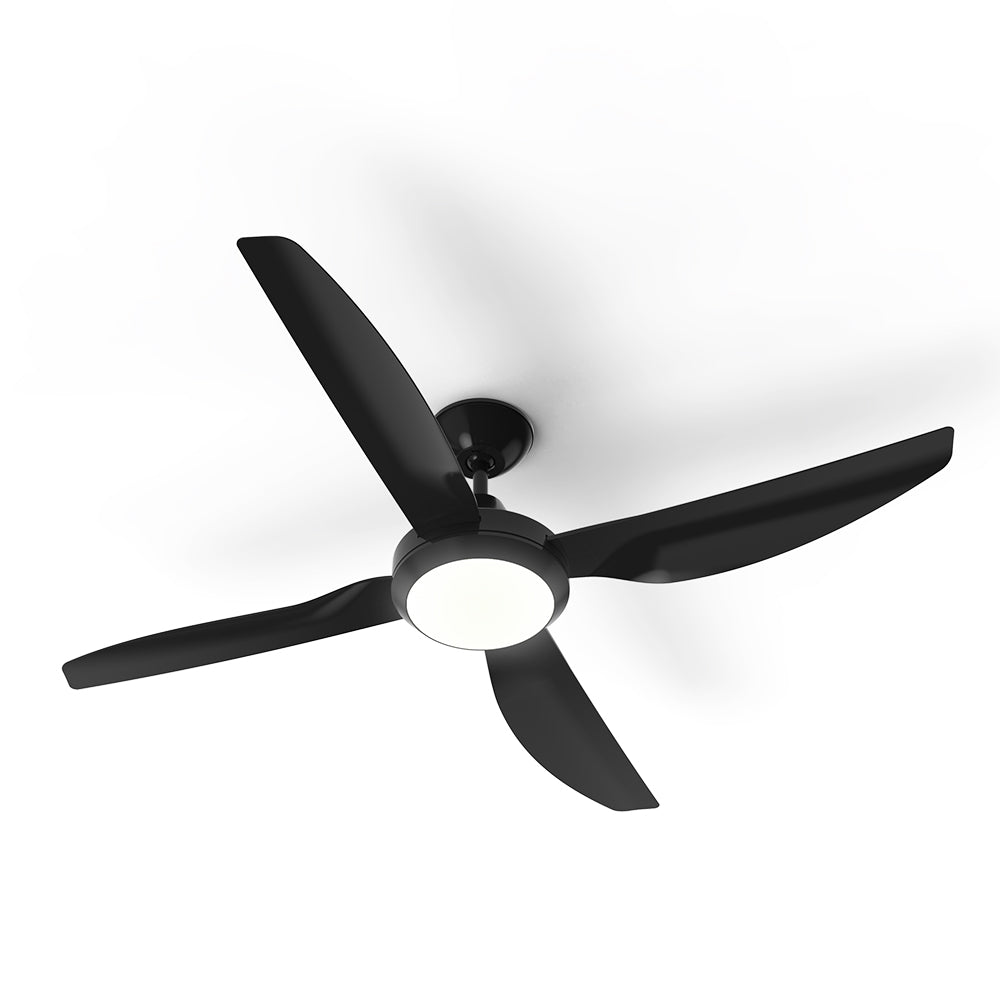

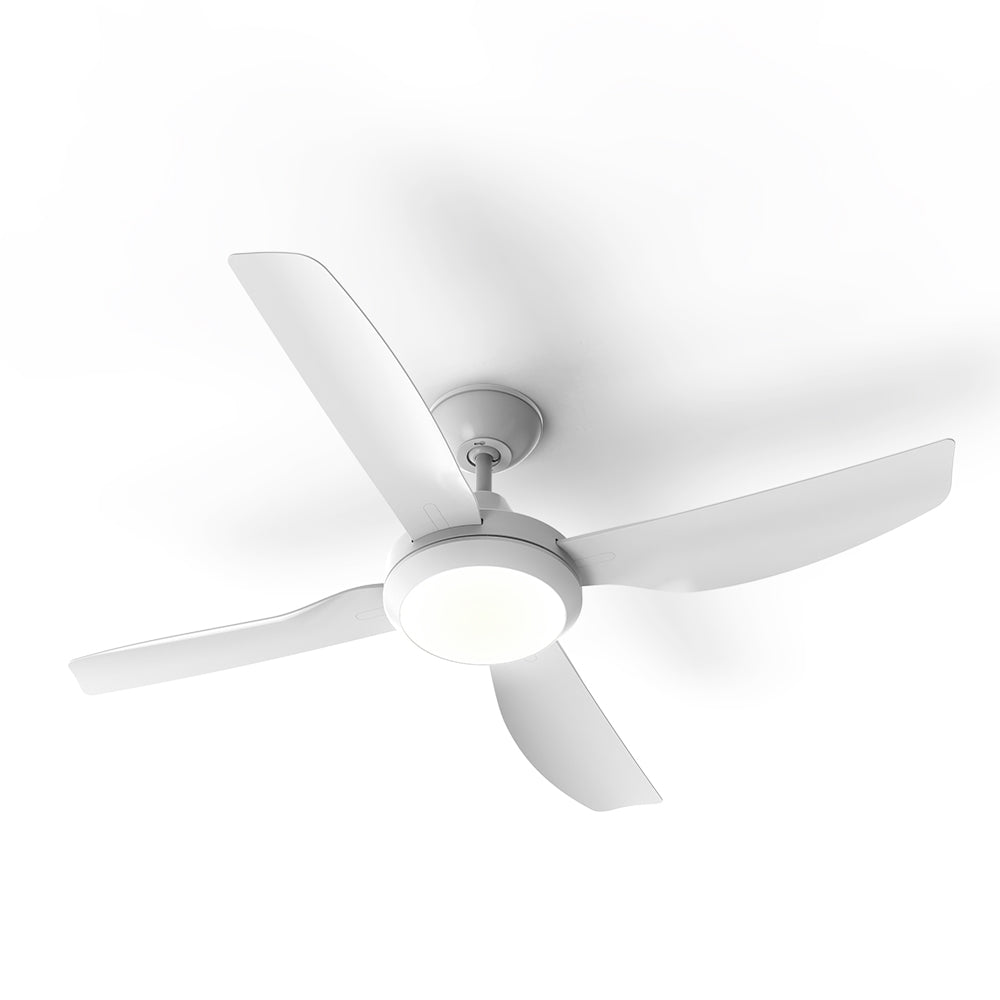

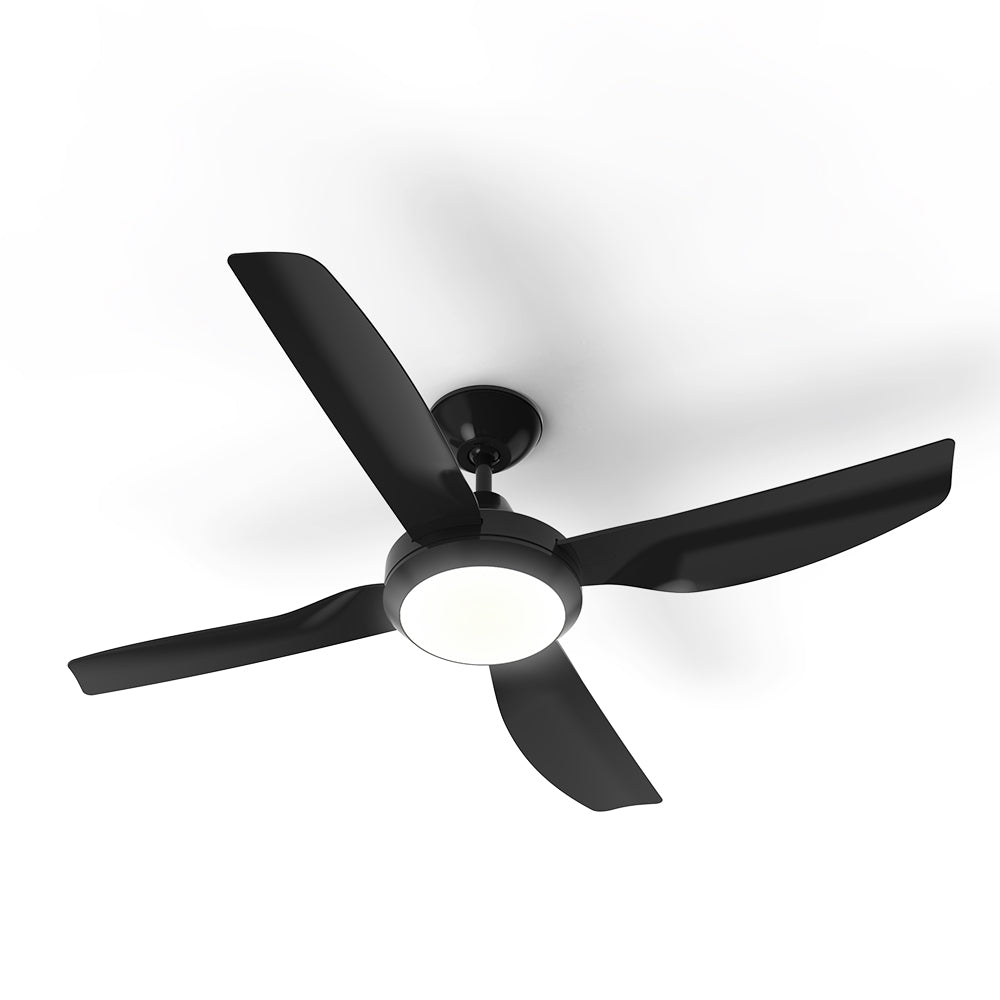

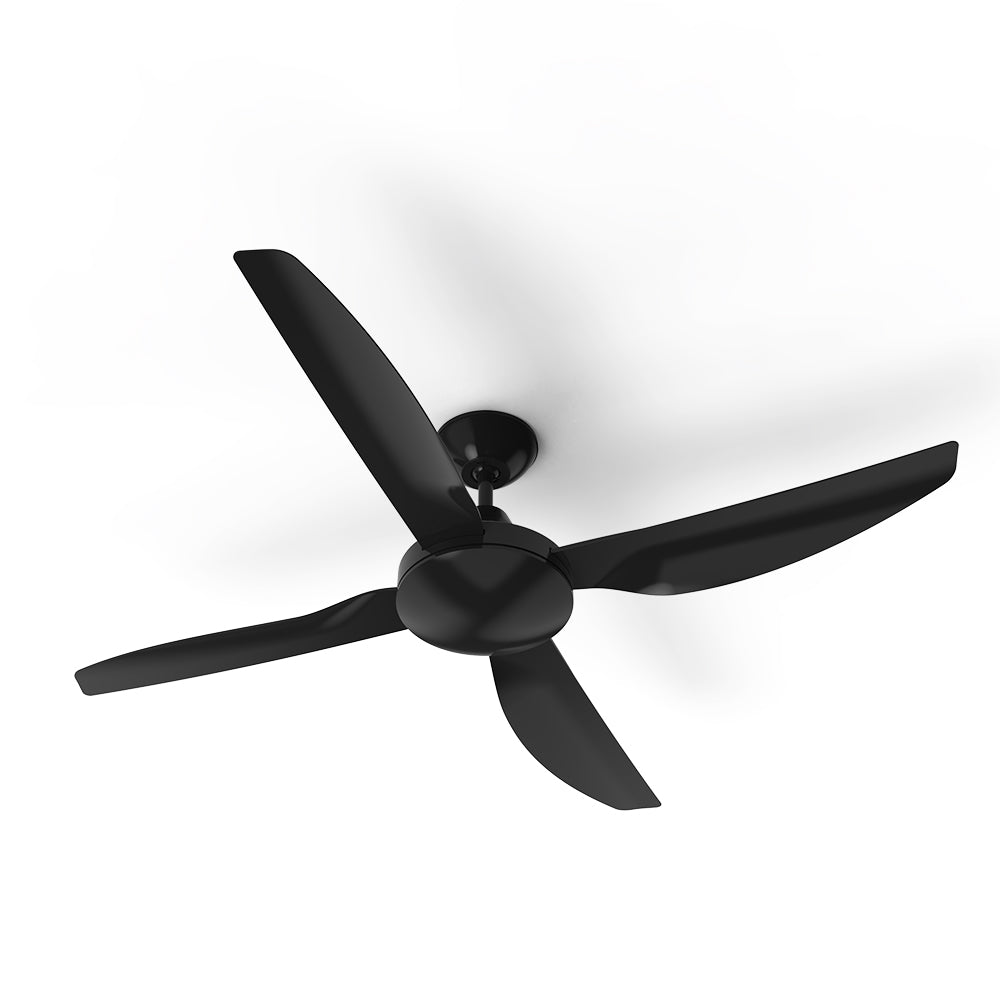

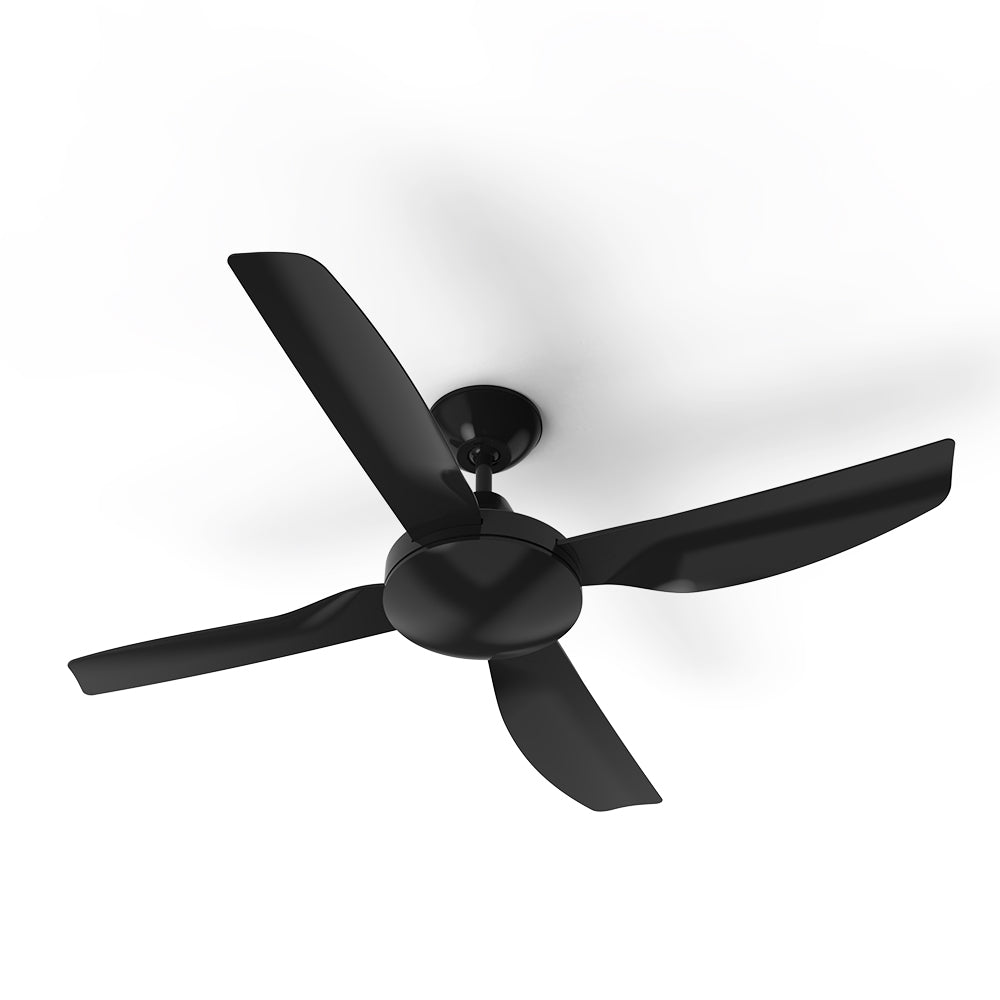

Atom Lighting Coolum 4 blade 75W AC ceiling fan

SKU: COOLUM/48/BK
Regular price $295.00
Unit price
per

Atom Lighting Coolum 4 blade 75W AC ceiling fan

SKU: COOLUM/48/BK
Regular price $295.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Powerful and efficient 75W AC motor
  • Easy installation with our quick connect wiring solution
  • Pre-balanced for smoother, quieter operation
  • Slimline design ideal for indoor and covered outdoor applications
  • ABS body and canopy with 4 reinforced ABS blades
  • Hangsure canopy up to 15 degrees
  • Reversible for summer and winter use
  • Compatible with Atom Air ceiling fan remote control ACREMOTE/KIT (sold separately)
  • 3 speed wall controller

Selected Models

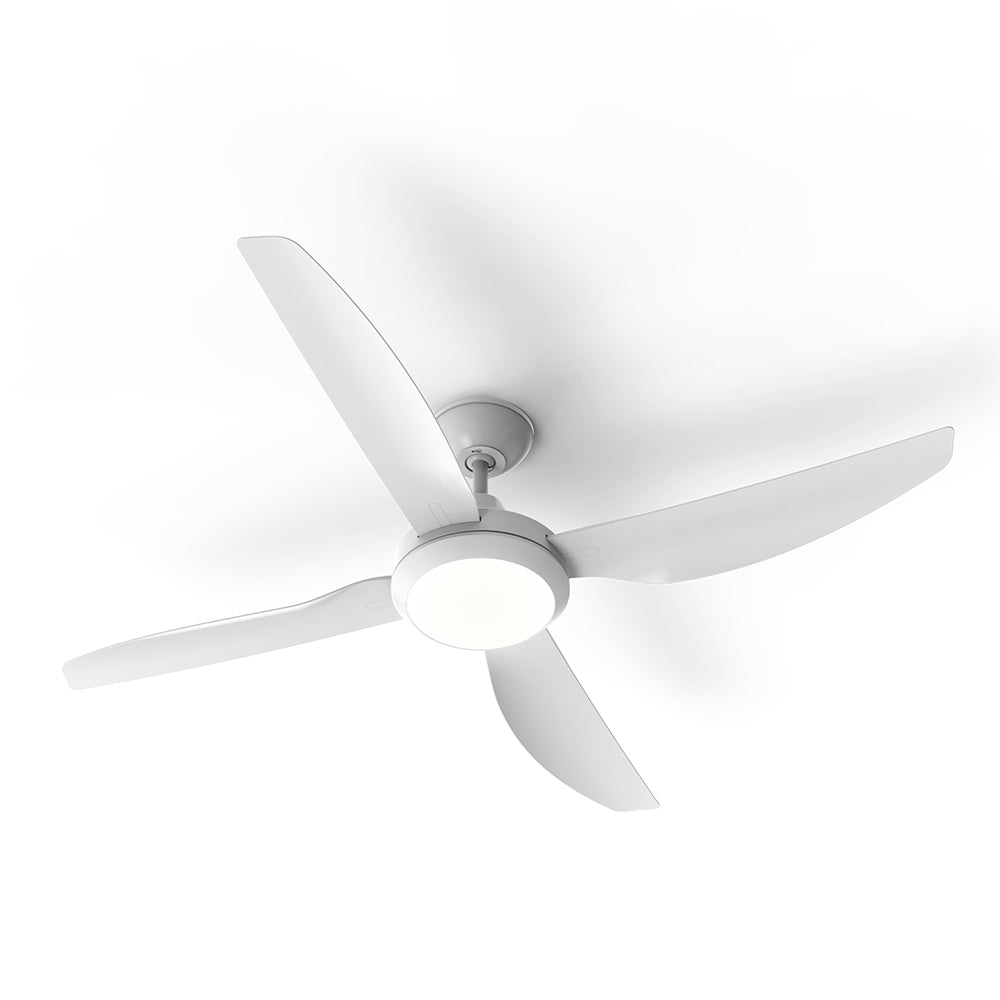

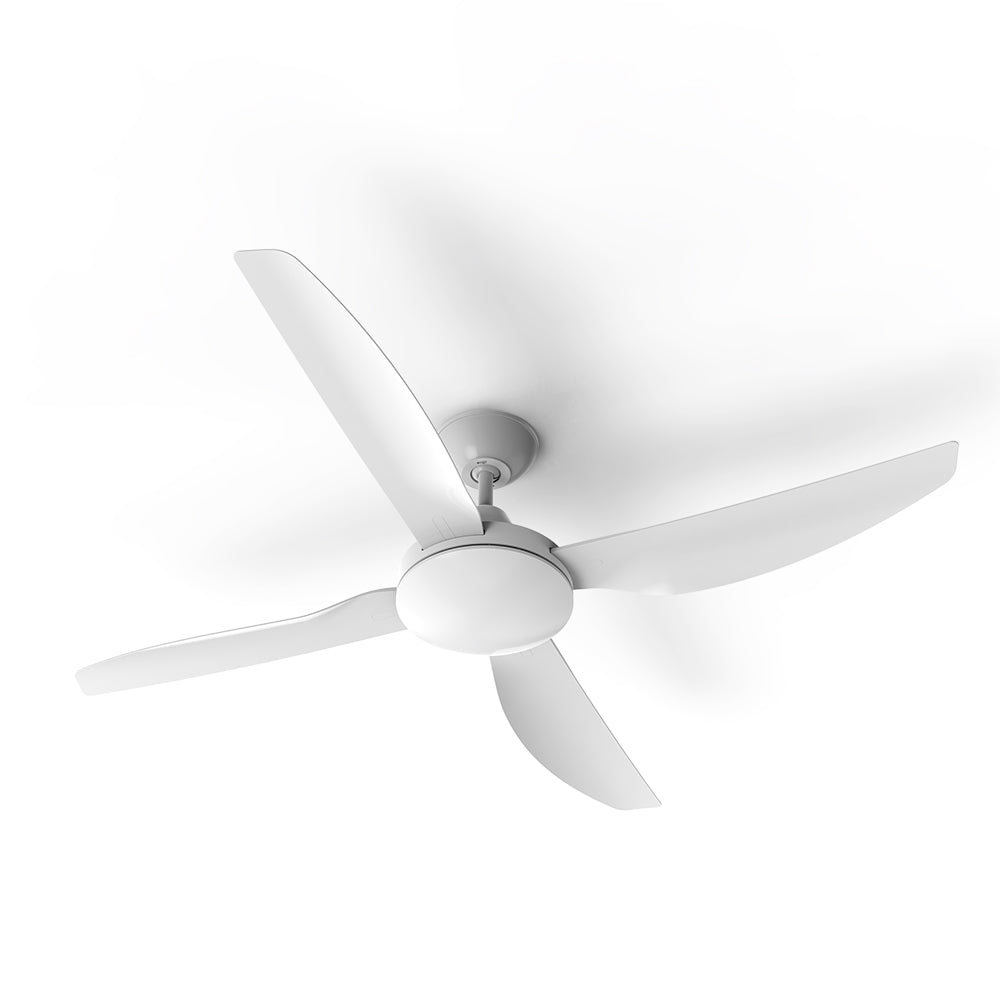

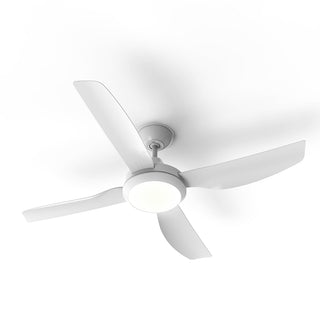

  • 20W dimmable tri-colour LED
  • Switchable colour temperature between 3000K, 4000K and 5000K

Specifications

Mechanical

Body Material ABS
Fitting Colour Satin White
IP Rating IP20

Electrical

Electrical Rating Class I
Input Frequency 50Hz Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Air Movement

Motor Wattage 75 W
Motor Type AC
No. Speeds 3
Control Wall control
Ceiling Rake 15 °
Ceiling Drop 300 mm
Blade Pitch 13 °
Blade Material ABS

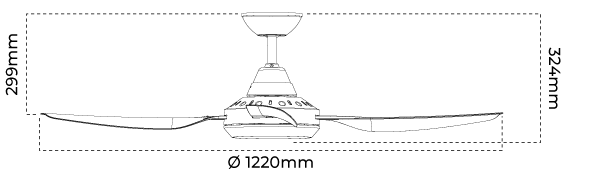

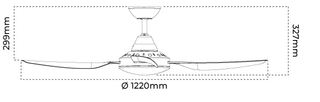

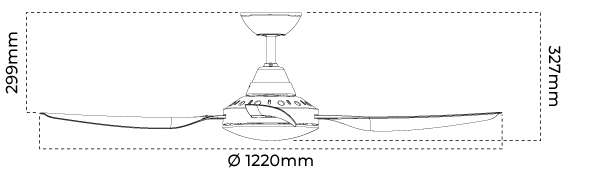

Fan Size 1220mm (48inch)
Fan Speed 1 75 W, 270 rpm, 13800 m³/h
Fan Speed 2 37 W, 190 rpm, 10000 m³/h
Fan Speed 3 20 W, 130 rpm, 7800 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS CISPR 14

Warranty

Domestic Use Warranty 4 Onsite, 2 RTB (Total 6 years)
