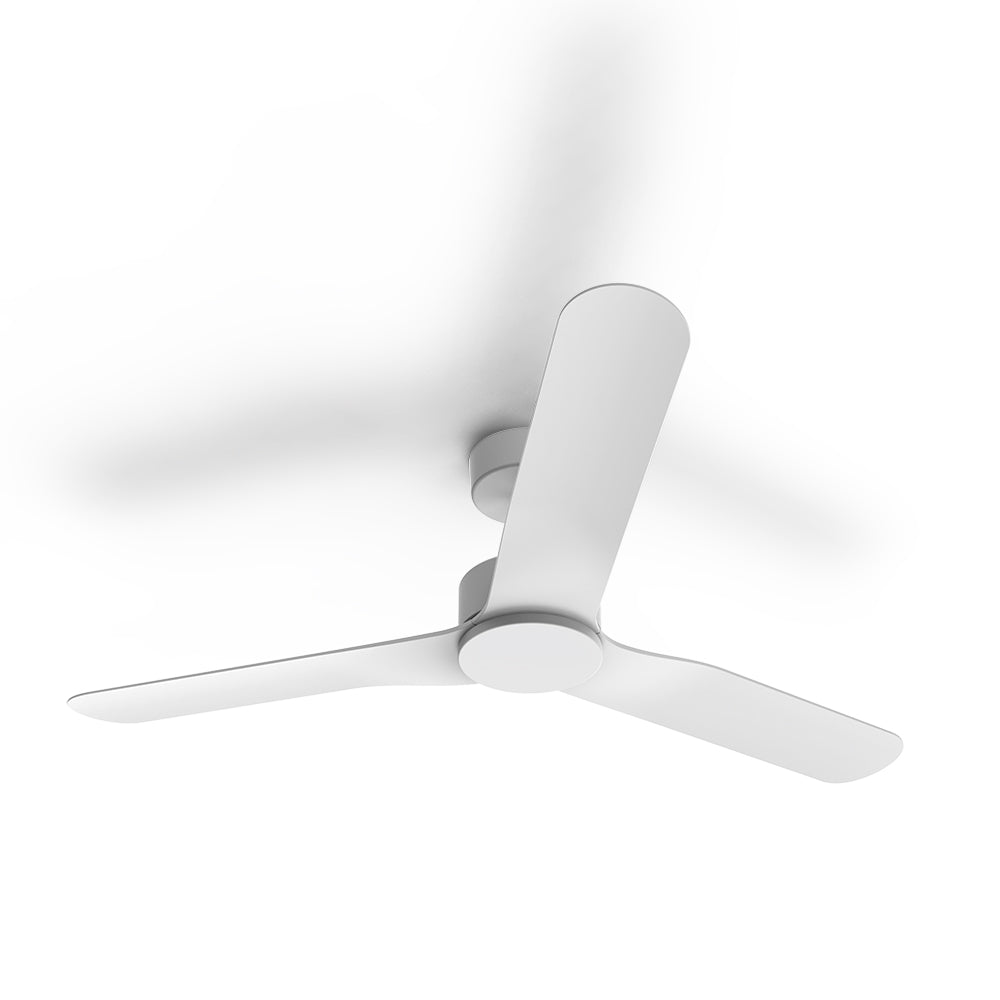

Atom Lighting Erskine 3 blade 40W DC ceiling fan

SKU: ERSKINE/52/WH
Regular price $341.00
Unit price
per

Atom Lighting Erskine 3 blade 40W DC ceiling fan

SKU: ERSKINE/52/WH
Regular price $341.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Powerful and energy efficient 40W DC motor
  • Easy installation with our quick connect wiring solution
  • Pre-balanced for smoother, quieter operation
  • Modern design ideal for indoor and covered outdoor applications
  • Steel body and canopy with 3 ABS blades
  • Hangsure canopy up to 15 degrees
  • Reversible for summer and winter use (via remote control)

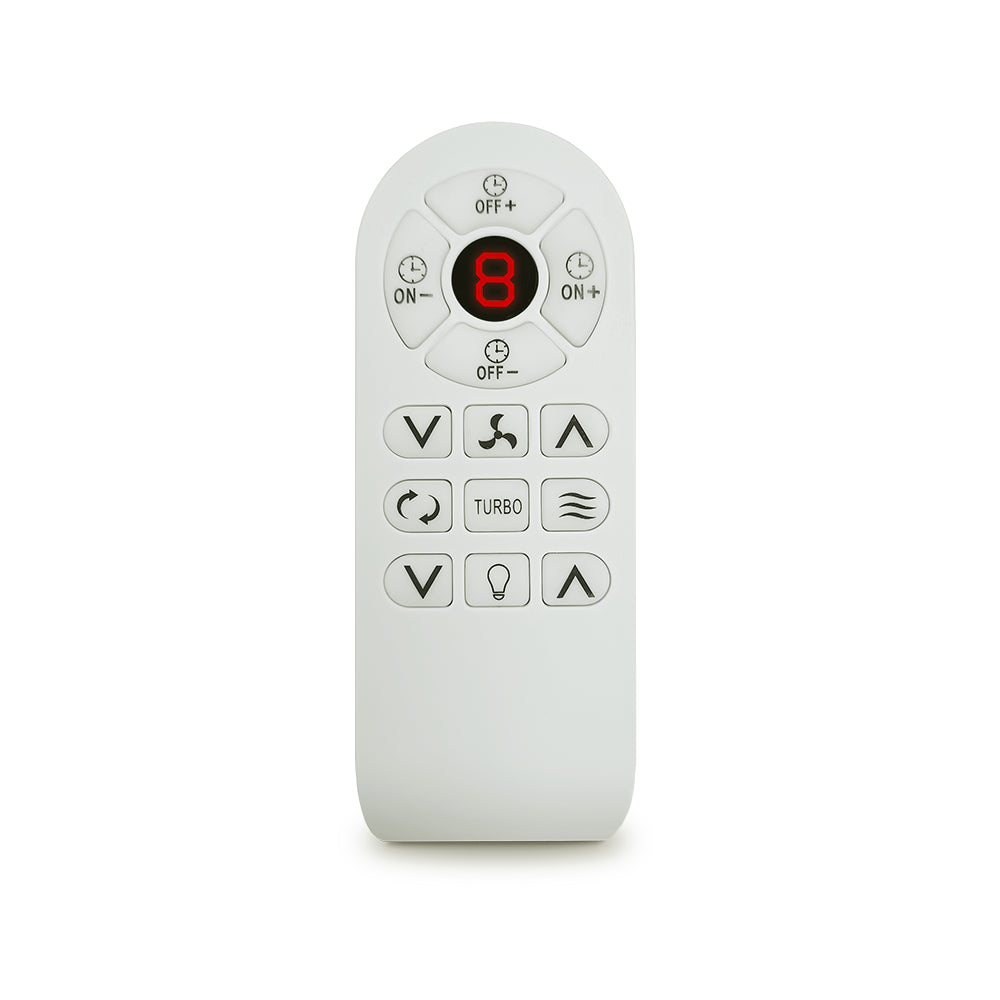

  • Supplied with 8 speed remote including turbo speed function and up to 12h timer

Selected Models

  • 16W dimmable tri-colour LED
  • Switchable colour temperature between 3000K, 4000K and 5000K (via remote control)

Mechanical

Body Material Metal
Fitting Colour Satin White
IP Rating IP20

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Air Movement

Motor Wattage 40 W
Motor Type DC
No. Speeds 8
Control Remote control
Ceiling Rake 15 °
Ceiling Drop 280 mm
Blade Pitch 10 °
Blade Material ABS

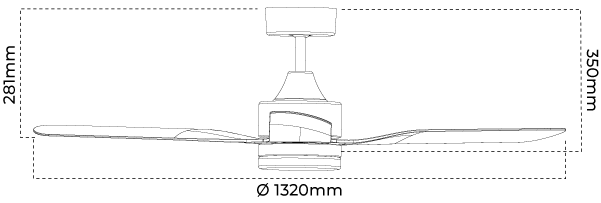

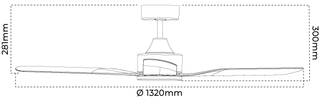

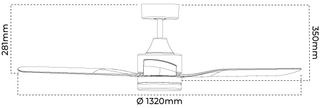

Fan Size 1320mm (52inch)
Fan Speed 1 7 W, 130 rpm, 7200 m³/h
Fan Speed 2 10 W, 150 rpm, 8400 m³/h
Fan Speed 3 15 W, 170 rpm, 9600 m³/h
Fan Speed 4 20 W, 190 rpm, 12000 m³/h
Fan Speed 5 25 W, 200 rpm, 13200 m³/h
Fan Speed 6 30 W, 210 rpm, 14400 m³/h
Fan Speed 7 35 W, 220 rpm, 15000 m³/h
Fan Speed 8 40 W, 230 rpm, 15600 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS CISPR 14
  • AS/NZS 4268

Warranty

Domestic Use Warranty 4 Onsite, 2 RTB (Total 6 years)
