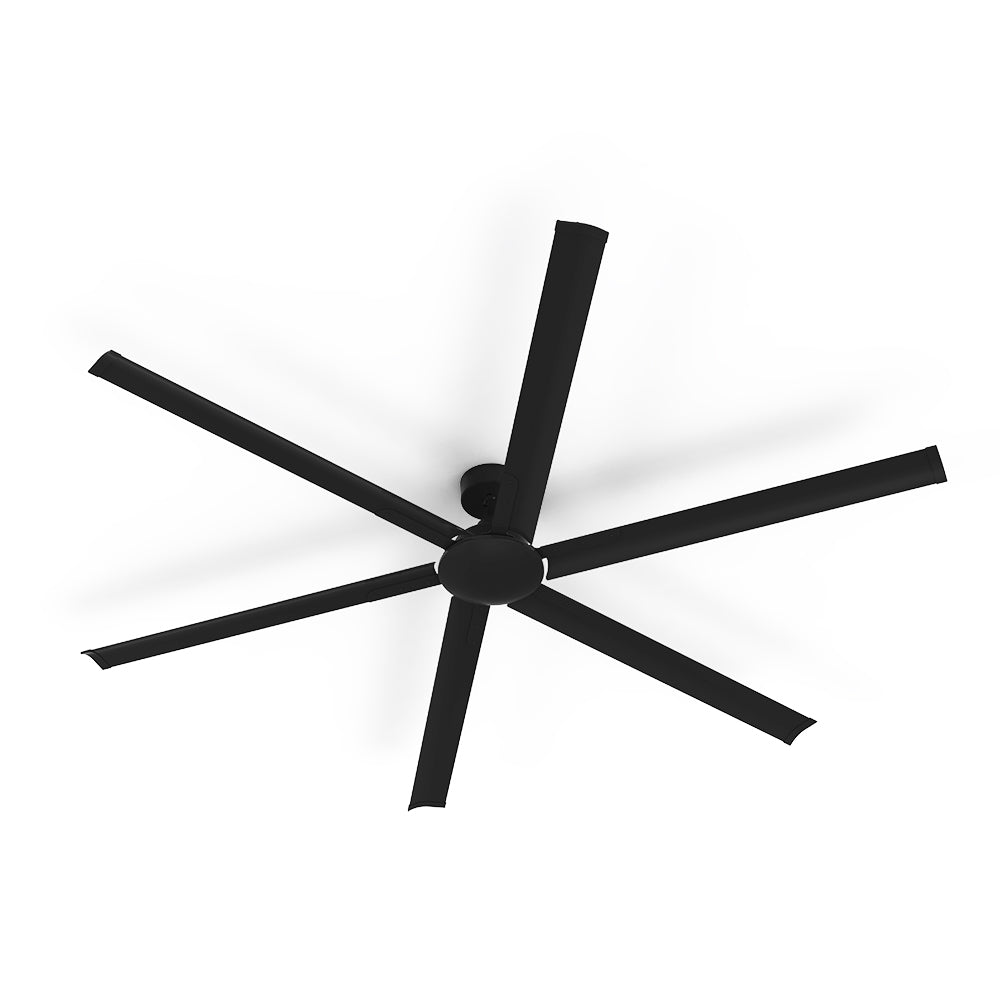

Atom Lighting Mooloolah 6 blade 55W DC ceiling fan

SKU: MOOLOOLAH/84/BK
Regular price $924.00
Unit price
per

Atom Lighting Mooloolah 6 blade 55W DC ceiling fan

SKU: MOOLOOLAH/84/BK
Regular price $924.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Our most powerful and energy efficient 55W DC motor
  • Easy installation with our quick connect wiring solution
  • Pre-balanced for smoother, quieter operation
  • Suitable for indoor and covered outdoor applications
  • Fitted with 8 corrosion-resistant anodised aluminium blades
  • Hangsure canopy up to 15 degrees
  • Reversible for summer and winter use (via remote control)

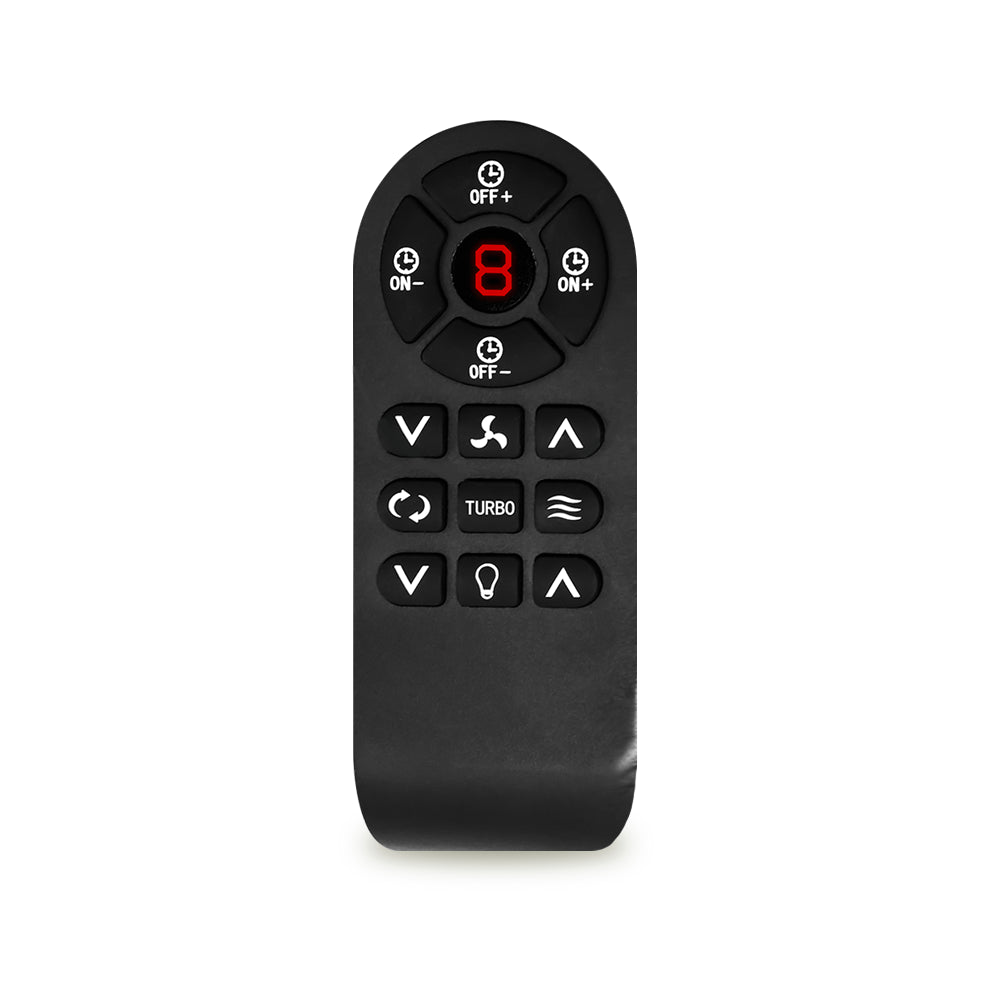

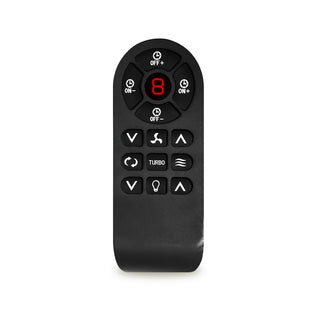

  • Supplied with 8 speed remote with turbo speed function and up to 12h timer

Specifications

Mechanical

Body Material Metal
Fitting Colour Matt Black
IP Rating IP20

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Air Movement

Motor Wattage 55 W
Motor Type DC
No. Speeds 8
Control Remote control
Ceiling Rake 15 °
Ceiling Drop 270 mm
Blade Pitch 11 °
Blade Material Aluminium
Fan Size 2130mm (84inch)
Fan Speed 1 13 W, 54 rpm, 13200 m³/h
Fan Speed 2 19 W, 59 rpm, 14100 m³/h
Fan Speed 3 25 W, 64 rpm, 1500 m³/h
Fan Speed 4 31 W, 69 rpm, 15900 m³/h
Fan Speed 5 37 W, 74 rpm, 16800 m³/h
Fan Speed 6 43 W, 79 rpm, 17500 m³/h
Fan Speed 7 49 W, 84 rpm, 18300 m³/h
Fan Speed 8 55 W, 90 rpm, 19500 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14
  • AS/NZS 4268

Warranty

Domestic Use Warranty 4 Onsite, 2 RTB (Total 6 years)
