Atom Proton 250mm 32W High Velocity Exhaust Fan

SKU: PROTON/250/WH
Regular price $88.00
Unit price
per

Atom Proton 250mm 32W High Velocity Exhaust Fan

SKU: PROTON/250/WH
Regular price $88.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
The Proton high velocity exhaust fan is a powerful and energyefficient solution for small-medium bathrooms and ensuites. It features a super-quiet axial fan that provides high air extraction.
  • Powerful motor providing high velocity extraction
  • Includes vent flaps for improved energy efficiency
  • Supplied with flex and plug for easy DIY installation
  • 3-year return to base warranty for peace of mind

Mechanical

Product Finish Gloss
Fitting Colour White
Installation Type Recessed
IP Rating IP20

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Exhaust

Noise level 36 dB
Motor Wattage 32 W
Motor Type Ball bearing
Fan Type Axial
Fan Size 250
Air extraction 750 m3/hr

Driver

Flex & Plug or Lead Length 900 mm
Wiring Type Re-wireable Flex & Plug (3 pin)

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use 2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14.1

Warranty

Domestic Use Warranty 3 RTB (Total 3 Years)
Warranty Operating Hours 2500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

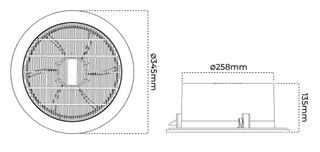

Item Code Minimum Ceiling Depth Cutout Product Height Product Length Product Width
PROTON/250/WH 260 mm 295 mm 135 mm 345 mm 345 mm
