Description

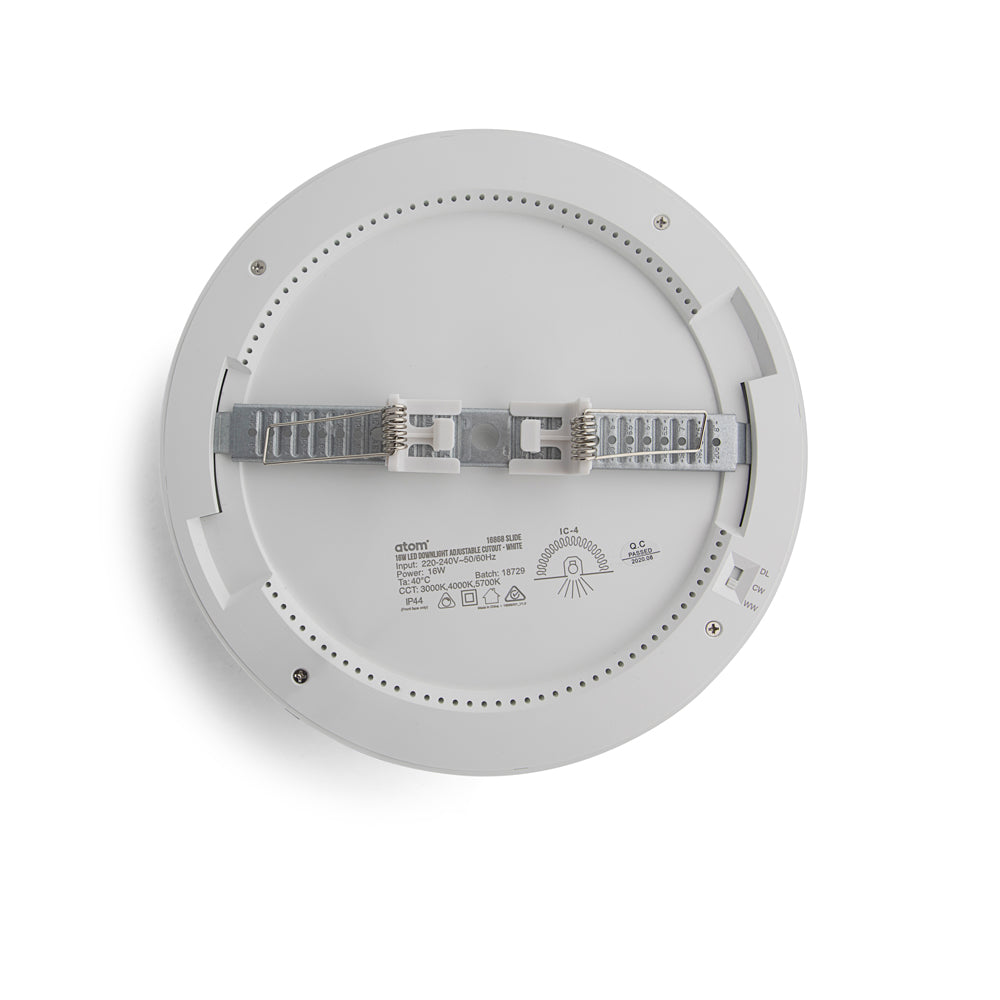

16W LED Downlight Adjustable Cut-Out – Tri-Colour

  • 120 degree Beam Angle
  • Adjustable bracket to fit and cover recessed cutouts from 65 – 235mm
  • Suitable for surface-mount installation
  • Supplied with an integrated dimmable driver
  • Flex and plug
Product Height 16 mm
Cutout 65-205 mm
Product Diameter 235 mm



Mechanical

IP Rating IP20
Adjustability Fixed
Fitting Colour White
Body Material Plastic
Installation Type Recessed

Electrical

Working Temp Range -20 to 40 °C
Input Frequency 50 Hz
Switch Type Inline
Maximum Wattage 16 W
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Lamp

Colour Rendering Index (CRI) >80
Number of Lamps 1
CCT Configuration TRI-CCT
Macadam Steps (SDCM) 5-step MacAdam Ellipse
Beam Angle 120 °

LED Lifetime

LED Lifetime 36000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

Warm White (3000 K) 1675 lm
Cool White (4000 K) 1810 lm
DayLight (5700 K) 1675 lm

Driver

Driver Type Dimmable ( Phase cut)
Driver Included Yes
Integrated Driver Yes
Dimmable Yes

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Warranty Operating Hours 13000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Domestic Use Warranty 3 RTB (Total 3 Years)
