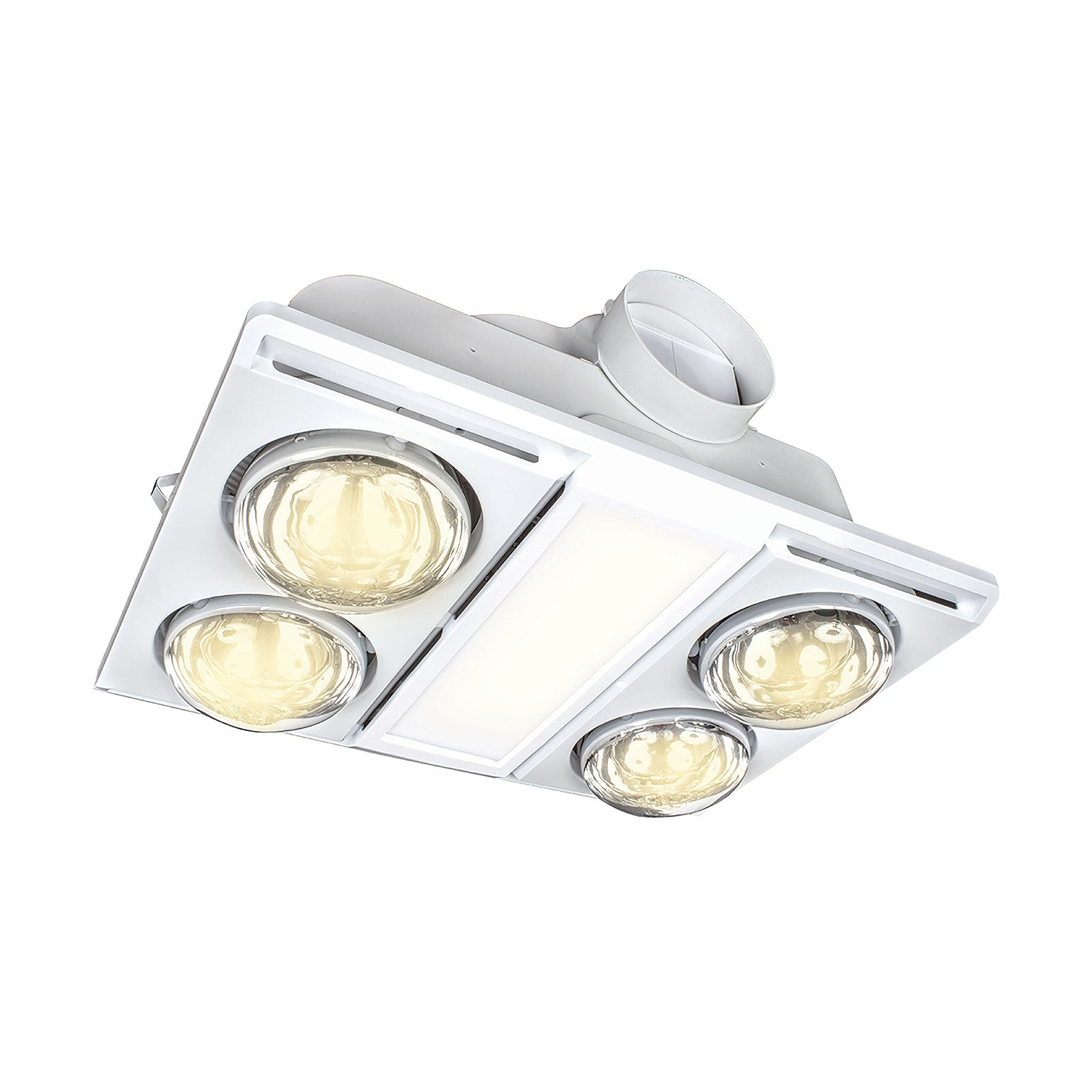

This Supernova-II is a light, exhaust fan, heater combination with 4 instant heat lamps to keep your bathroom warm. It also
has a super-bright 1100 lumen colour temperature adjustable LED centre light and a powerful, quiet exhaust fan. Its high
extraction rate will ventilate large rooms easily.
- High-performance 4x 275W instant heat lamp to warm the body
- Powerful 40W ball bearing motor.
- Fan extracts up to 500m³/hr to easily remove moisture and stream
- 14W LED light with 1100 lumen maximum output
- Easily change colour temperature (CCT) from warm white 3000K, to natural daylight 5000K.
- 150mm side duct outlet with draft stopper
- Low profile fascia design
- This unit is fitted with a thermostat switch that will automatically turn on the fan if the internal temperature exceeds 90°C.
- Includes 4 gang wall switch, 1.5m aluminium duct and exterior vent.
Additional information:
Operating Voltage: 240V / 50Hz
Class: Class I (1)
Total Wattage: 1154W
Motor Wattage: 40W
Motor Type: Longlife ball bearing
Air Extraction: up to 500m3/hr (139l/sec)
Heat Wattage: 4x 275W
Heat Type: Instant heat globes
Light Wattage: 14W max
Light Lumens: 1100lm max
Colour Temperature: 3000K or 5000K
Cutout: 430x 270mm
Outlet Diameter: suits ø150mm ducting
Ingress protection: IPX2
Control: 4-Gang wall switch
Thermal Safety Switch: Auto cut-off / Fan on (90°C)
Minimum installation clearance between unit and roof: 150mm
Includes Accessories: 4-Gang wall control, 1.5m flexible alumninium ducting and exterior vent.
Warranty 3 year replacement
Installation:
Must be installed by a licensed electrician
