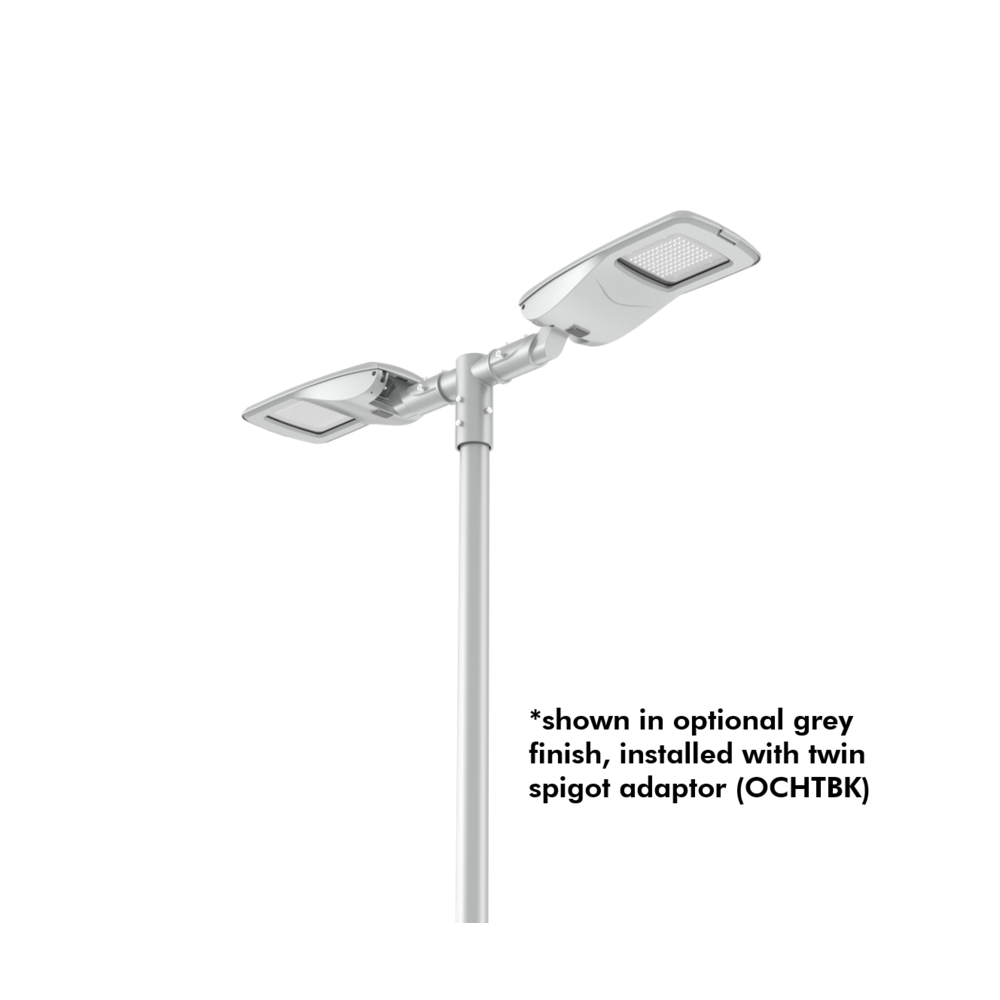

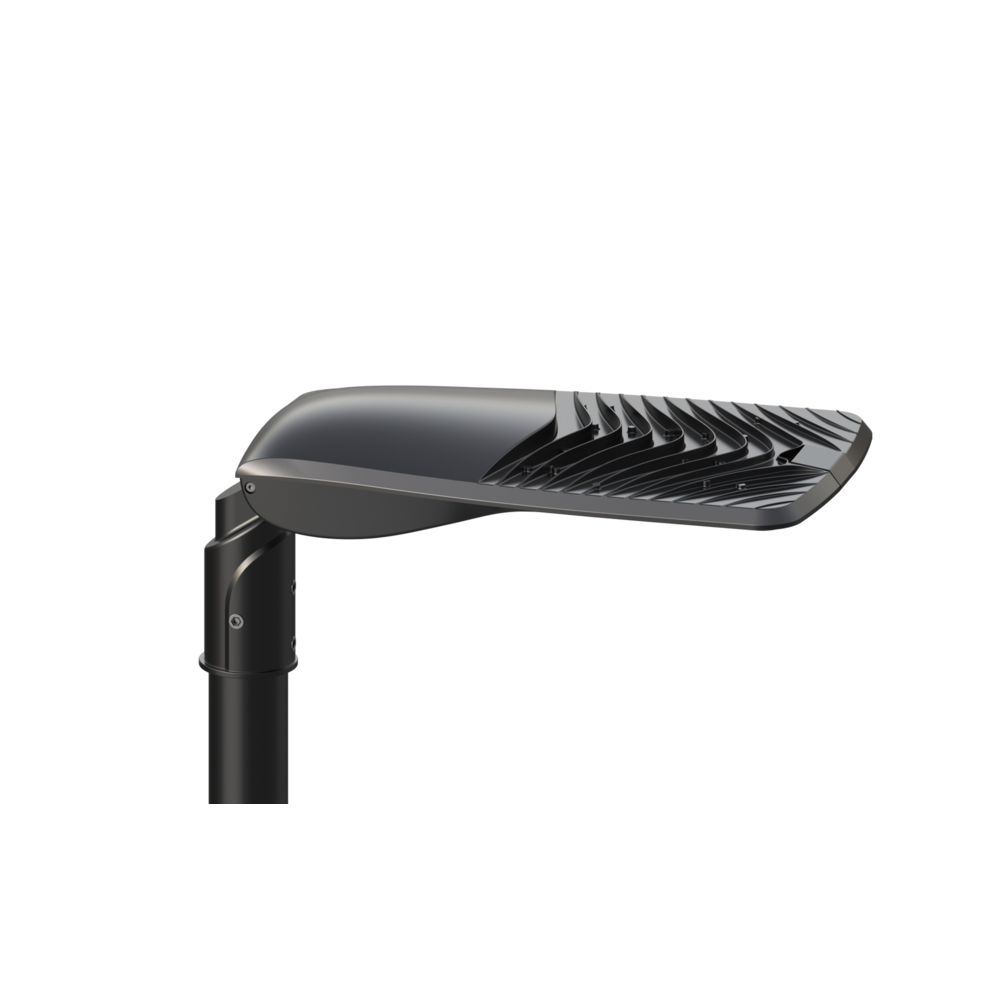

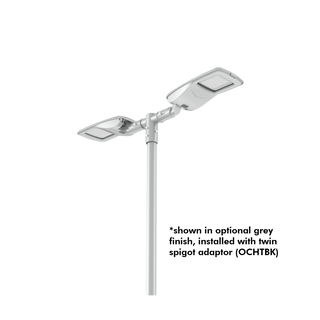

Chicago-L IP66 LED Area Luminaire

Introducing the Chicago floodlight range. A modern decorative exterior post top LED area luminaire.

Streamline die-cast aluminum body supplied with a durable powder coated finish in standard Black (RAL9017) or Grey (RAL9006).

Application

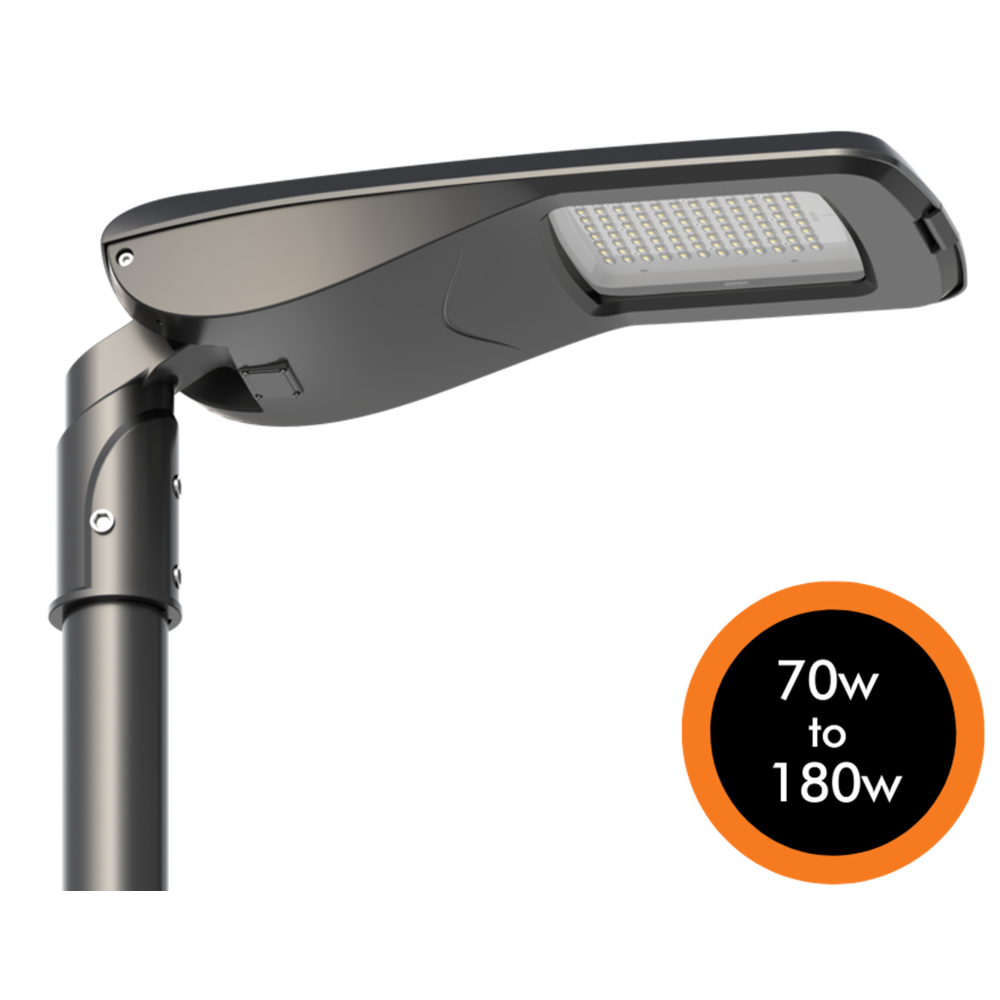

The Chicago-L floodlight range is available in type II, III and V optics with wattage options from 70w to 180w. Suited to the following applications ♦ Industrial area lighting and facades  ♦ Carpark applications   ♦ General purpose post top/wall mounted area lighting

Design Specifications

High output >130lm/w LED

Performance

chips L90/B10 >50,000 hours, CRI 80 Ø60mm pole mount spigot mounting bracket supplied as standard (compliant to standard 3G.ANSI C.136.31-2010) Integral Non-Dimmable Constant Current LED Driver Integral 6kV SPD (Surge Protection Device)  High Efficiency Tempered Glass Lens 800mm 3core Flexible Rubber Cable from Terminal Block for Connection

Available Options

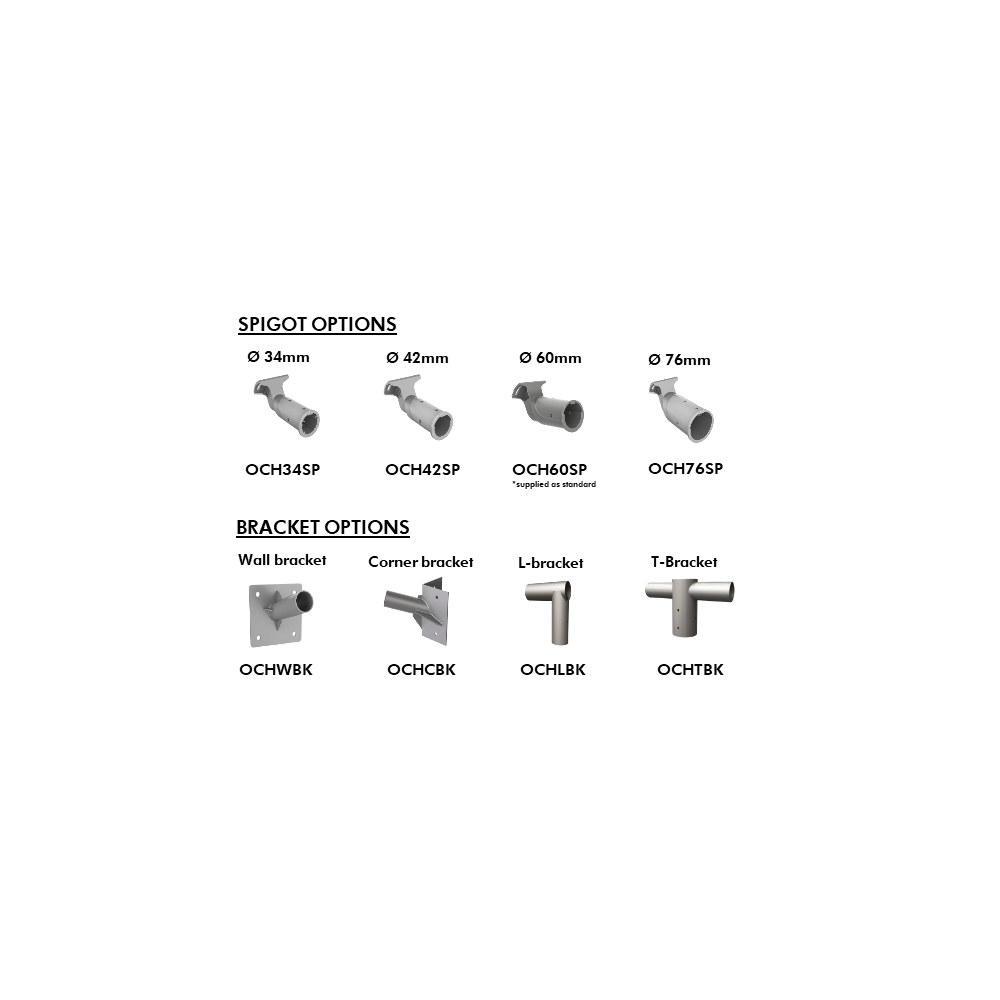

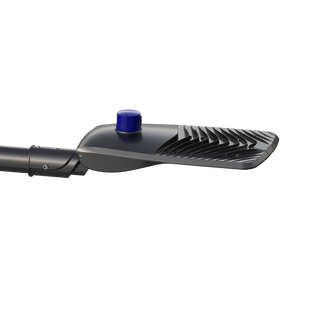

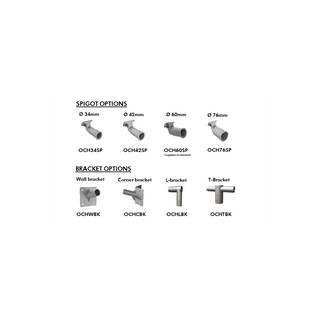

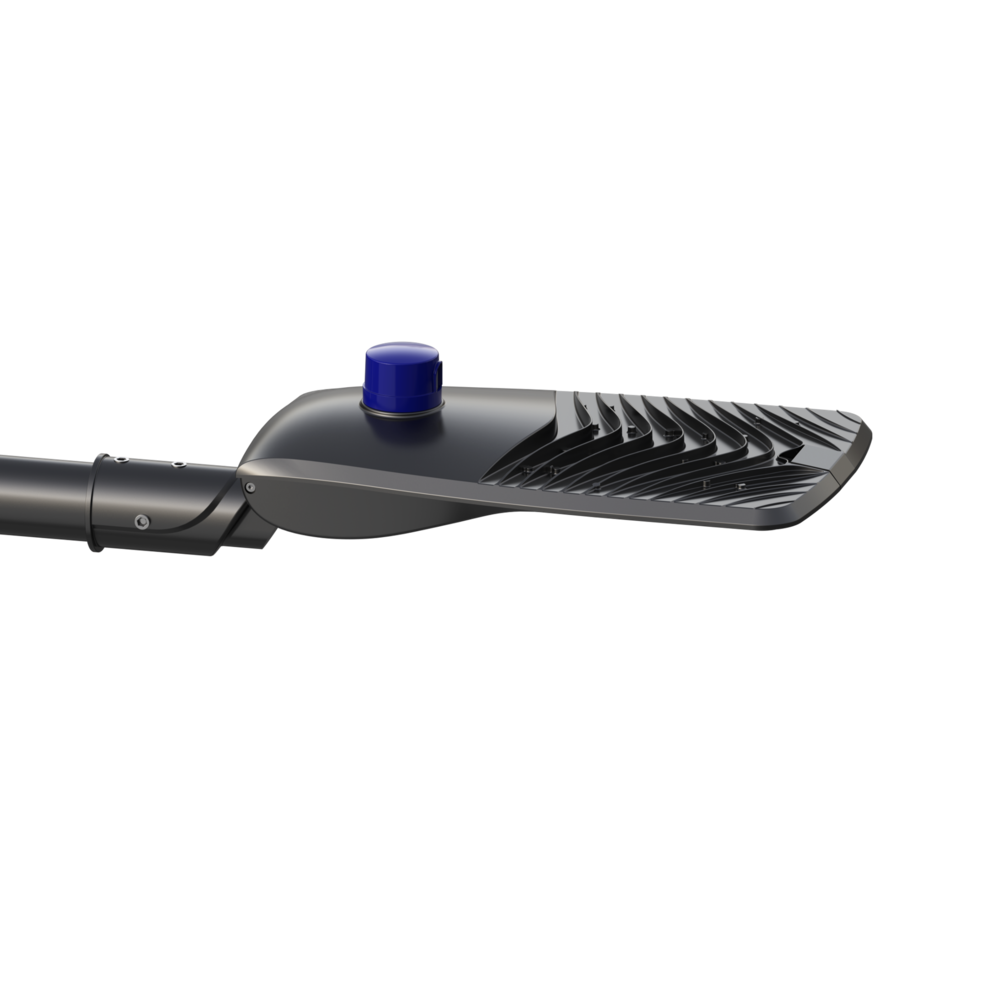

(RAL 9006) Grey Powdercoat - Minimum Order Quantity May Apply Integral DALI Dimmable LED Driver  Photocell NEMA 3 / 5 / 7 pin - Fitted in Factory Spigot Options -  34mm / 42mm / 76mm Mounting Bracket Options -  Wall / Corner / L-Adaptor / T-Adaptor Chicago-L-lighting-floodlighting-products-Chicago-L-chicago-l-main-imageexterior-led-lightingarchitectural-Chicago-L
