CLA HATHOR Exterior LED Surface Mounted Bollard Lights IP54

Product Features:

• Input voltage range: 100-240V AC 50/60Hz
• Inbuilt constant current driver included
• Driver output voltage range: 18-42V
• Driver input current: 0.065A
• Driver output current: 300mA
• Housing & heatsink: powder coated-aluminium
• Diffuser: PC
• HATHOR1 back plate: PC
• HATHOR2 & 3 surface mounting plate: die cast aluminium
• Power factor: >0.5
• Ambient Temp: -20 to 50°C
• Not suitable for dimming
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP54
• NOTE: HATHOR2-3 are not for use inground
• For bollard lights, to maintain the IP rating please use circular cable in junction
• For bollard lights, for parallel and single connection we recommend using an appropriate IP68 connector (CLA Connector:  CONN002)

Warranty

3 year replacement warranty

Part No.

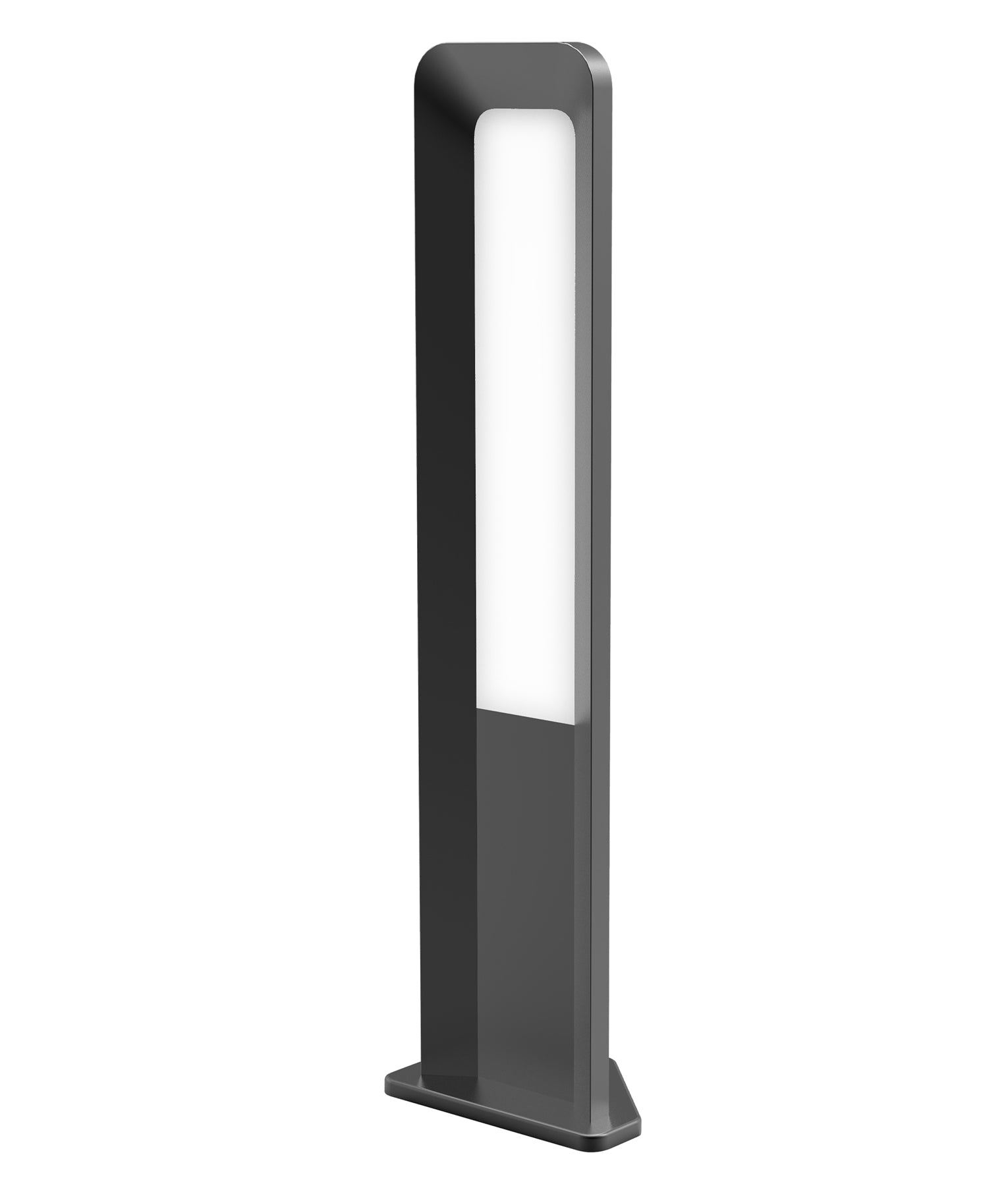

HATHOR2  BOLLARD LED DARK GREY  L500mm  W127mm

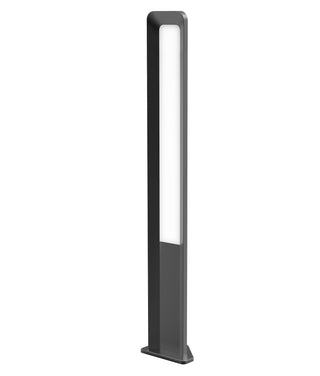

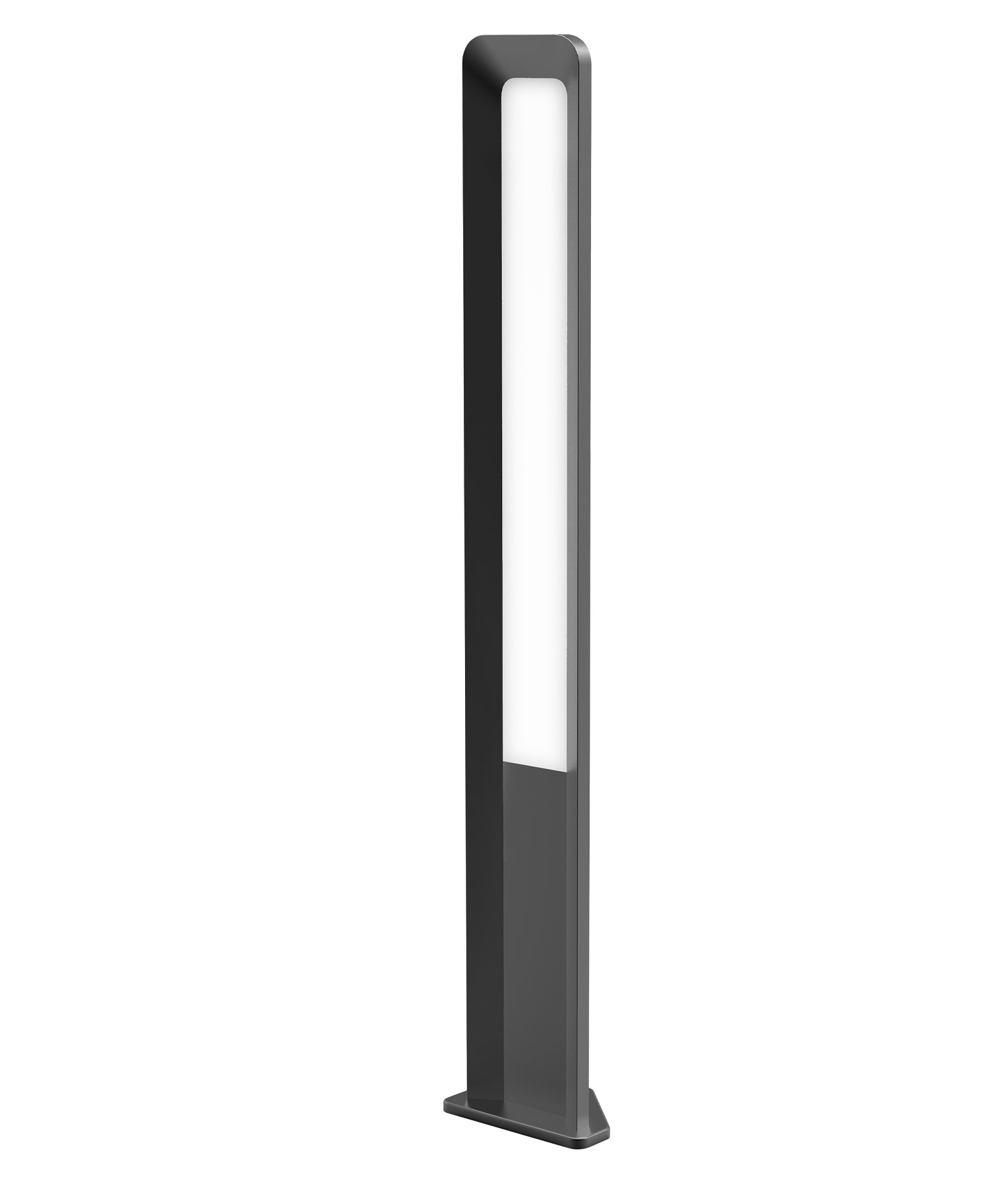

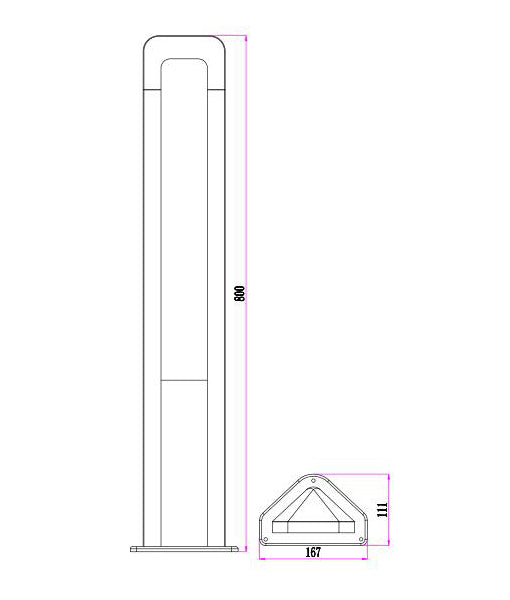

HATHOR3  BOLLARD LED DARK GREY  L800mm  W127mm
