CLA SENS Adjustable Infrared PIR Surface Mounted Sensors

Product Features

• Adjustable infrared PIR surface mounted sensors
• Mounting Type: surface Mounted
• Input voltage: 220-240V 50/60Hz
• Detection Range: 360°
• Detection Distance: 20m Max (<24°C)
• Motion Detection Speed: 0.6-1.5m/s
• Rated Load: 2000W HAL/ 1000W CFL/ 1000W LED
• Time Delay: Min.10sec±3sec; Max.30min±2min (restarts from last movement)
• Ambient Light: 3-2000Lux
• Ambient temperature: -20 to 40°C
• Working Humidity: <93%RH
• Power Consumption: approx. 0.5W
• Installation Height: 2.2-6m
• Housing Material: PC
• IP rating: IP65
• UV resistant
• 3 wire
• Day/Night recognition
• Manual override

warranty

5 year replacement warranty

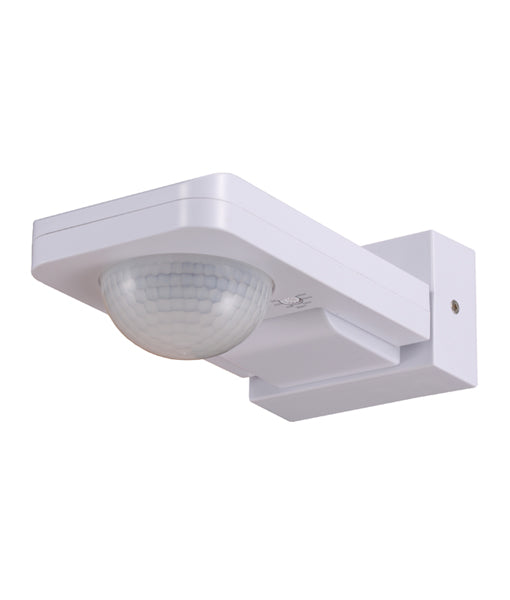

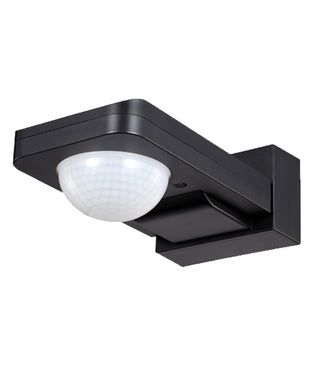

Model No.

SENS009, SENS010
