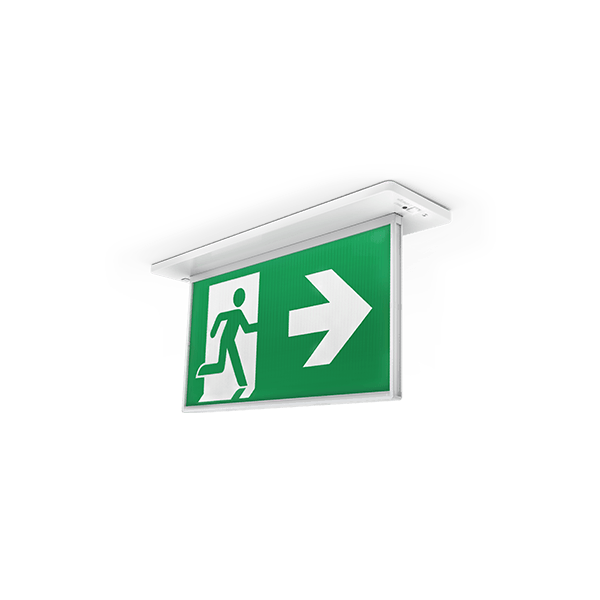

Ektor 2686 Ektor Razor Recessed Emergency edgelite Exit 24M Pro

by Ektor Lighting
SKU: EV-RAZOR-24M-PRO
$305.00
Ektor 2686 Ektor Razor Recessed Emergency edgelite Exit 24M Pro
Ektor 2686 Ektor Razor Recessed Emergency edgelite Exit 24M Pro
Ektor 2686 Ektor Razor Recessed Emergency edgelite Exit 24M Pro

Ektor 2686 Ektor Razor Recessed Emergency edgelite Exit 24M Pro

by Ektor Lighting
SKU: EV-RAZOR-24M-PRO
$305.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Features

  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • Available in low illumination area black model
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Chain and rod mounting with Surface and Rod Mount Kit
  • Long life electronics
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Self test (AS2293/IEC62034)
  • Fully compliant (AS/NZS 2293)

MECHANICAL

Body Material Polycarbonate
Diffuser Material PMMA
Fitting Colour White
Installation Type Recessed
IP Rating IP20

ELECTRICAL

Electrical Rating Class II
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power 1.7 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range 0 to 40 °C

LAMP

CCT Configuration Single
CRI >80
Lamp/LED Current 75 mA
Lamp/LED voltage 9 V

LED LIFETIME

LED Lifetime Rating >25Y/08M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.

COLOUR TEMPERATURE

CCT 6000K
LED Wattage 0.75 W



DRIVER

Dimmable No
Driver Included Yes
Integrated Driver No
Driver Type DALI DT1 Emergency
Flex & Plug or Lead Length 1200 mm
Wiring Type Re-wireable Flex & Plug (2 pin)

EMERGENCY (EM SUFFIX)

Replacement Battery Code 01302
Emergency Classification C0:C25, C90:C20
Emergency Control DALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size 300 x 150 mm
Emergency Duration 90 mins
Emergency Mode Maintained
Emergency Output Power 750 mW
Viewing Distance 24 m

COMPLIANCE

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

WARRANTY

Commercial Use Warranty 5 RTB (Total 5 Years)

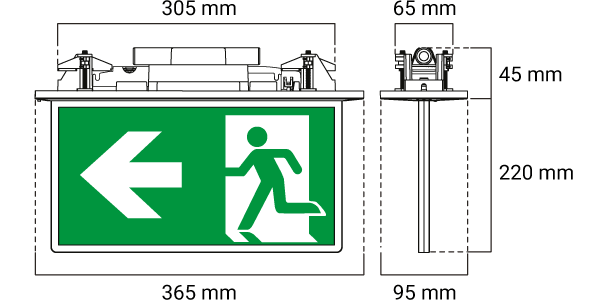

MINIMUM CEILING DEPTH 100 mm
CUTOUT 305 x 65 mm
PRODUCT HEIGHT 265 mm
PRODUCT LENGTH 365 mm
PRODUCT WIDTH 95 mm
