Ektor Boxit Core 15001 Wall Mounted Emergency Exit Sign

by Ektor Lighting
SKU: EV-BOXIT-WALL-24M
$148.00
Ektor Boxit Core 15001 Wall Mounted Emergency Exit Sign
Ektor Boxit Core 15001 Wall Mounted Emergency Exit Sign
Ektor Boxit Core 15001 Wall Mounted Emergency Exit Sign

Ektor Boxit Core 15001 Wall Mounted Emergency Exit Sign

by Ektor Lighting
SKU: EV-BOXIT-WALL-24M
$148.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Features

  • Single and double sided decals
  • Fully compliant (AS/NZS 2293)
  • Replaceable easy fit, quick-release decals
  • LED light source
  • Long life electronics
  • Low power consumption
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)

MECHANICAL

Body Material Polycarbonate
Diffuser Material PMMA
Installation Type Wall mount
IP Rating IP20

ELECTRICAL

Electrical Rating Class II
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 3.6 W
Standby Power 3.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range 0 to 40 °C

LAMP

CCT Configuration Single
CRI >80

COLOUR TEMPERATURE

CCT 6000K
CCT Colour Daylight
LED Wattage 0.95 W



DRIVER

Dimmable No
Driver Included Yes
Integrated Driver Yes
Driver Type Fixed output
Wiring Type Re-wireable terminal block (4 pin)

EMERGENCY (EM SUFFIX)

Replacement Battery Code 1307
Emergency Classification C0:E2, C90:E2, C180:C2

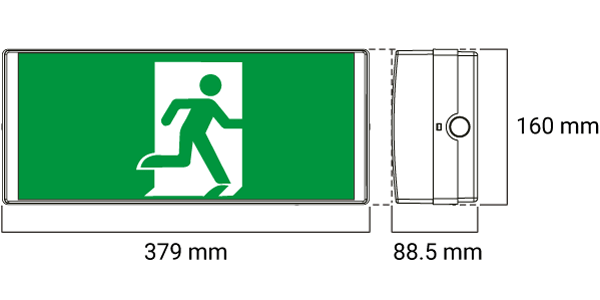

Decal Size 340 x 150 mm
Emergency Duration 90 mins
Emergency Mode Maintained
Emergency Output Power 950 mW
Viewing Distance 24 m

COMPLIANCE

Product Design Life 6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

WARRANTY

Commercial Use Warranty 2 RTB (Total 2 Years)
