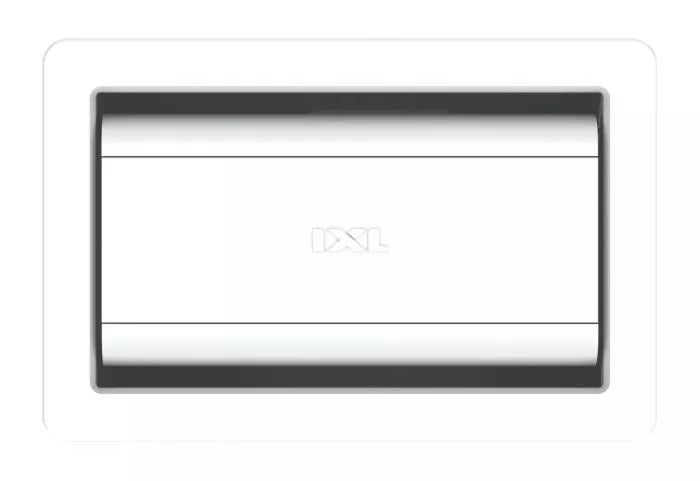

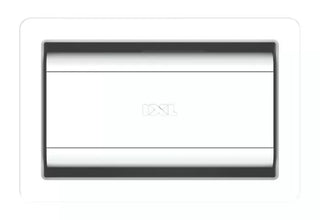

IXL Tastic Luminate Essential Vent Module Bathroom Exhaust Fan

Tastic Luminate Essential Vent module features a sleek and contemporary fascia design, with powerful airflow extraction, ideal for bathroom, laundry, toilet or powder room, remove moisture and banish odours effectively, to keep your rooms clean and fresh.

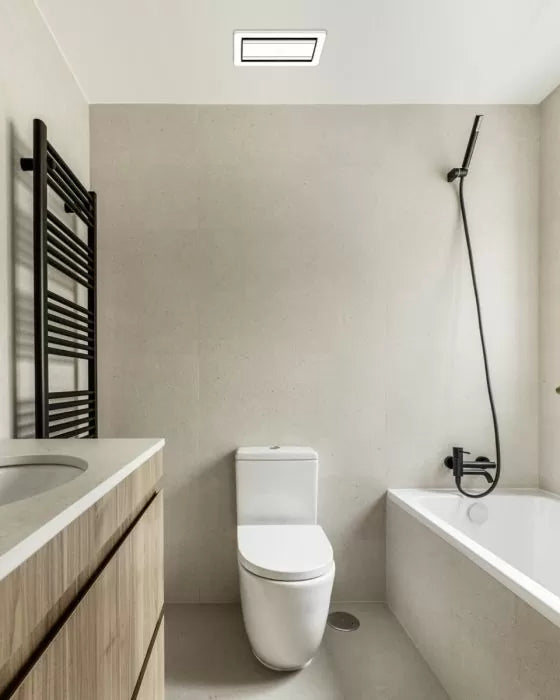

Tastic Luminate Essential Vent Module is suitable for above shower installation with an IPX4 rating. Position it over the shower to remove steam and moisture, and to banish odours effectively without the need for a bulky extraction fan.

Proudly designed and manufactured in Australia, Tastic Luminate Essential Vent Module is compliant with NCC in Australia, and G4 Building Codes and Healthy Home Standard for bathrooms and kitchens in New Zealand.

Tastic Luminate Essential Vent Module is a ventilation fan only. There is no heat or light.

Features:

• Powerful Extraction: 400m3/hr Airflow
• Suitable for above shower installation: IPX4 rating
• Exhaust Fan with 6m Duct and Exterior Outlet Vent
• Suitable for areas up to 8.3m2 with shower* and 20.8m2 without shower.
• Designed and manufactured in Australia

1. Airflow Extraction (m3/h)
   400
2. Ducted
   Yes
3. Back Draught Flaps
   Yes
4. Clearance Required above Unit (mm)
   30
5. Cutout Size (mm)
   214 x 332
6. Exhaust Capacity (l/s)
   111
7. Exhaust Capacity (m3/h)
   400
8. Fan Size (mm)
   170
9. Fascia Dimensions (mm)
   243W x 367D
10. Finish/Colours
    White
11. Inline Fan Ducted to Outside
    Yes (6m of ducted included)
12. IP Rating
    IPX4
13. Made in Australia
    Yes
14. Max. Height of Unit (mm)
    215
15. Model Number
    35601
16. Rated Voltage (V)
    220-240
17. Area Suitability in Room without Shower
    20.8m2
18. Area Suitability in Room with Shower
    8.3m2
19. Total Ceiling Cavity Required (mm)
    245
20. Watts (Fan in Brackets)
    0 (75)
21. Weight of Unit (kg)
    4.2
22. Wall Switch
    Yes
23. Power Cable Length (m)
    1.2
24. Unit Dimensions (mm)
    367W x 243L x 200D
