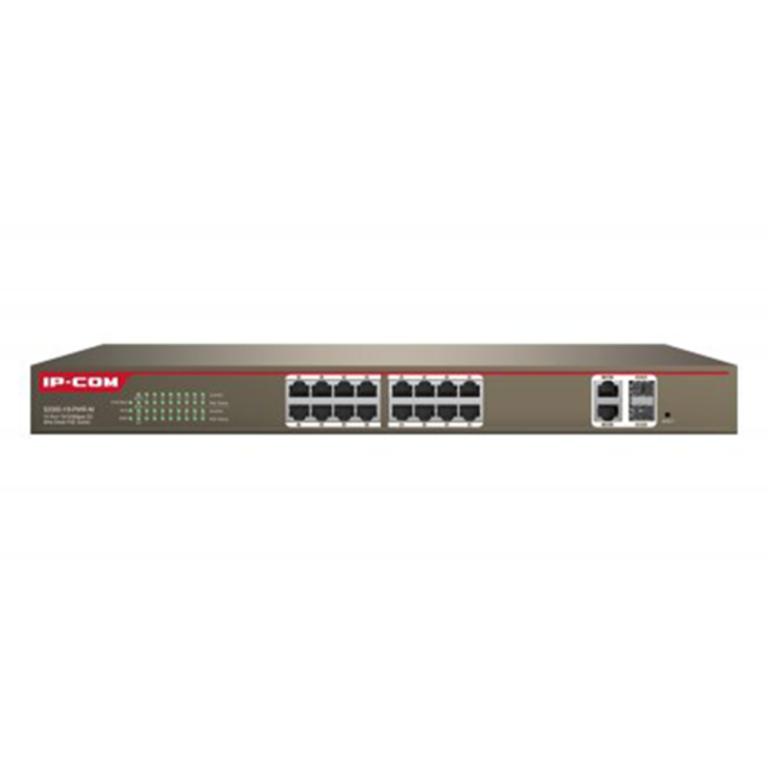

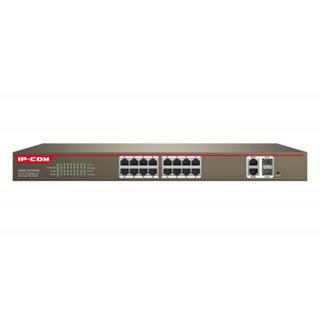

PSA IP-COM 16-Port 100M+2-Port Gigabit TP/SFP Combo Web Smart PoE Switch

by PSA
SKU: IPCS3300-18-PWR
$666.00 $521.00 22% off
PSA IP-COM 16-Port 100M+2-Port Gigabit TP/SFP Combo Web Smart PoE Switch
PSA IP-COM 16-Port 100M+2-Port Gigabit TP/SFP Combo Web Smart PoE Switch
PSA IP-COM 16-Port 100M+2-Port Gigabit TP/SFP Combo Web Smart PoE Switch
PSA IP-COM 16-Port 100M+2-Port Gigabit TP/SFP Combo Web Smart PoE Switch
New
Sale

PSA IP-COM 16-Port 100M+2-Port Gigabit TP/SFP Combo Web Smart PoE Switch

by PSA
SKU: IPCS3300-18-PWR
$666.00 $521.00 22% off
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

MODEL: IPCS3300-18-PWR

S3300-18-PWR-M is a 16-Port 10/100Mbps +2-Port Gigabit TP/SFP Combo Web Smart PoE Switch developed by IP-COM. It provides 16 10/100Base-TX RJ45 ports, 2 10/100/1000Base-T RJ45 ports and 2 1000Base-X SFP combos.Ports 1-16 support IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W) powering. The whole PoE output is 230W. By using Cat 5 twisted pair, the device can provide data and power for APs, IP cameras, IP phones, and other PoE devices. Moreover, by using Cat 5e Ethernet and enabling extend mode, the transmission distance of data and power can be as long as 250 meters. In addition, it supports QVLAN, link aggregation, QoS, MAC binding, etc, which saves the cost, time and energy of network deployment to a great extent.

  • 16 10/100Base-TX RJ45 ports, 2 10/100/1000Base-T RJ45 ports and 2 100/1000Base-X SFP combos
  • 16 10/100Base-TX RJ45 ports support PoE power supply. The total power output is up to 230W and the maximum output of a single port is 40W.
  • Powerful port management functions, including port mirroring, speed limit, trunk, etc.
  • Supports IEEE 802.3Q Tag VLAN
  • Supports Web, SNMP management and network diagnostics maintenance methods
Standard and protocol supported

IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at
MTBF

100,000hours
Indicator LEDs

Link/Act, PoE Status,System, Power,PoE Max
Fixed Ports

16 10/100Base-TX ports
2 10/100/1000Base-T ports
2 1000Base-X SFP ports Combo)
lightning protection

≥6KV
Store and forward

Yes
Exchange capacity

7.2 Gbit/s
MAC address entries

4K MAC
Power supply module

Providing 16 ports under IEEE 802.3af(15.4W) or 8 ports under IEEE 802.3at(30W)
PoE through pin

1 2 4 5 +，3 6 7 8 –
Voltage input range

AC：100－240V～ 50/60Hz
Dimension（L×W×H）

440mm*284mm*44mm
Weight

≤5kg
Total power consumption

<250W
PoE consumption up to 230W
perating temperature

0 ℃～40 ℃
Storage temperature

-40 ℃～70 ℃
Relative humidity(Operational)

10%～95%（noncondensing）
Relative humidity(Storage)

10%～95%（noncondensing）
PoE management

Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module
VLAN

Support VLAN(4K) based on ports
Support 802.1QVLAN
Mirroring

Support local mirror image
Link aggregation

Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS

Support message transmission for ports and limitation of speed
Support SP & WRR
Layer 2 ring network protocol

Support STP/RSTP and looped Network for devices
Certification

FCC/CE/RoHS
