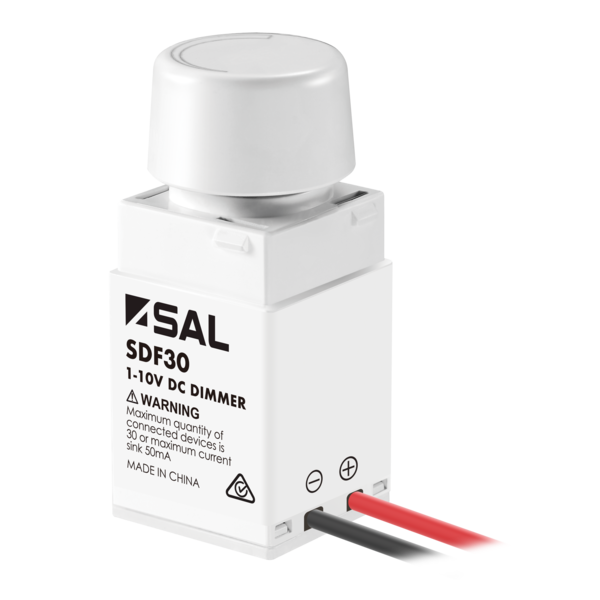

SAL 1-10V SDF30 Analogue Dimmer and Controller

$22.90
SKU SDF30

Application

Ideal for residential and commercial lighting control requirements

Design Specifications

  • 1-10V rotary analogue dimmer

  • Fit most popular switch plates

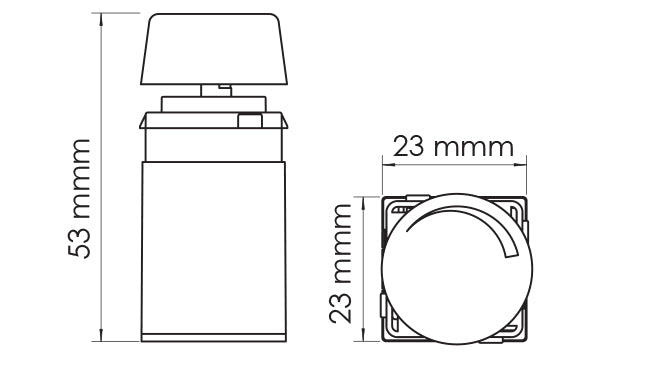

  • Dimensions (LWH mm): 53 x 23 x 23mm

  • Note: maximum quantity of connected devices is 30 or a maximum current sink of 50mA

  • Order code: SDF30

Performance

Dimmer Type - ANALOGUE
