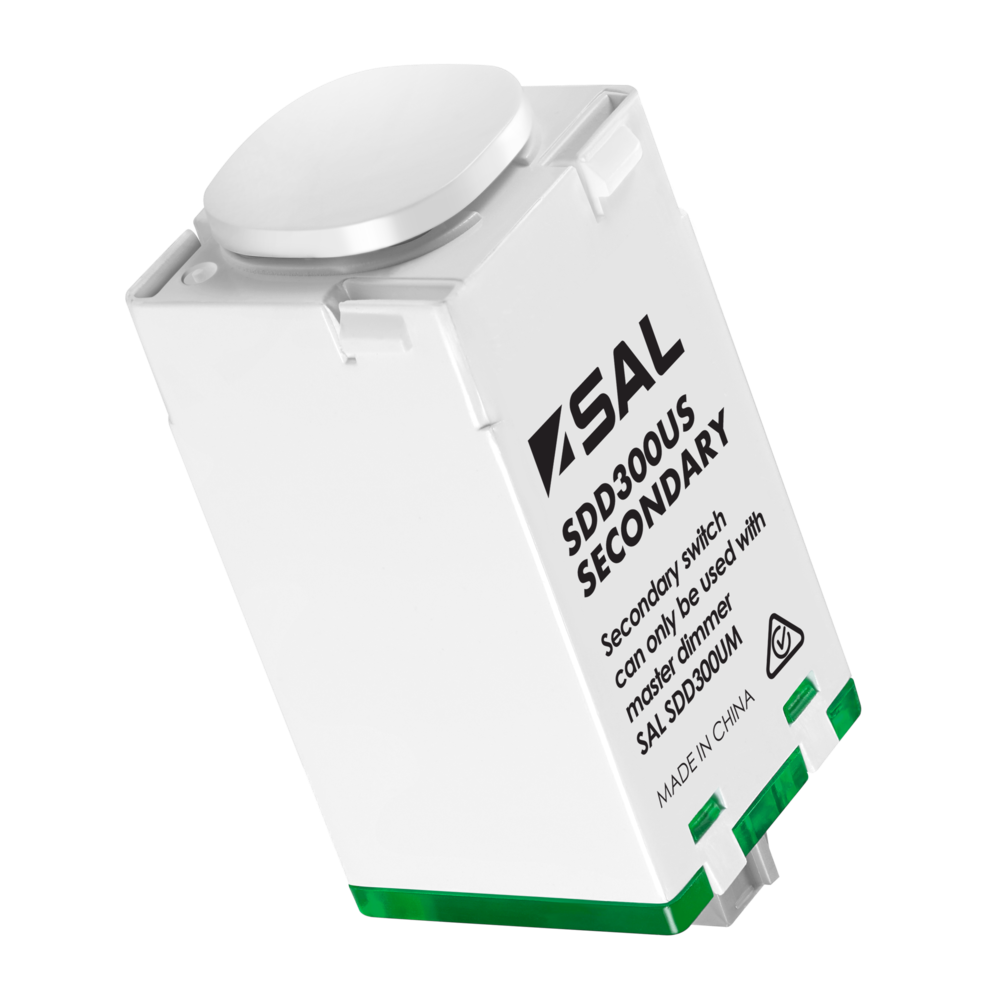

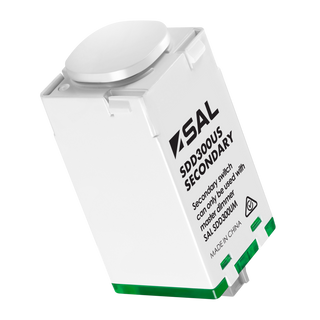

SAL DIGITAL DIMMER SECONDARY SDD300US

Application

Smart lighting controls for residential and commercial applications

Design Specifications

• Push button control trailing or leading edge digital dimming via the MASTER connection

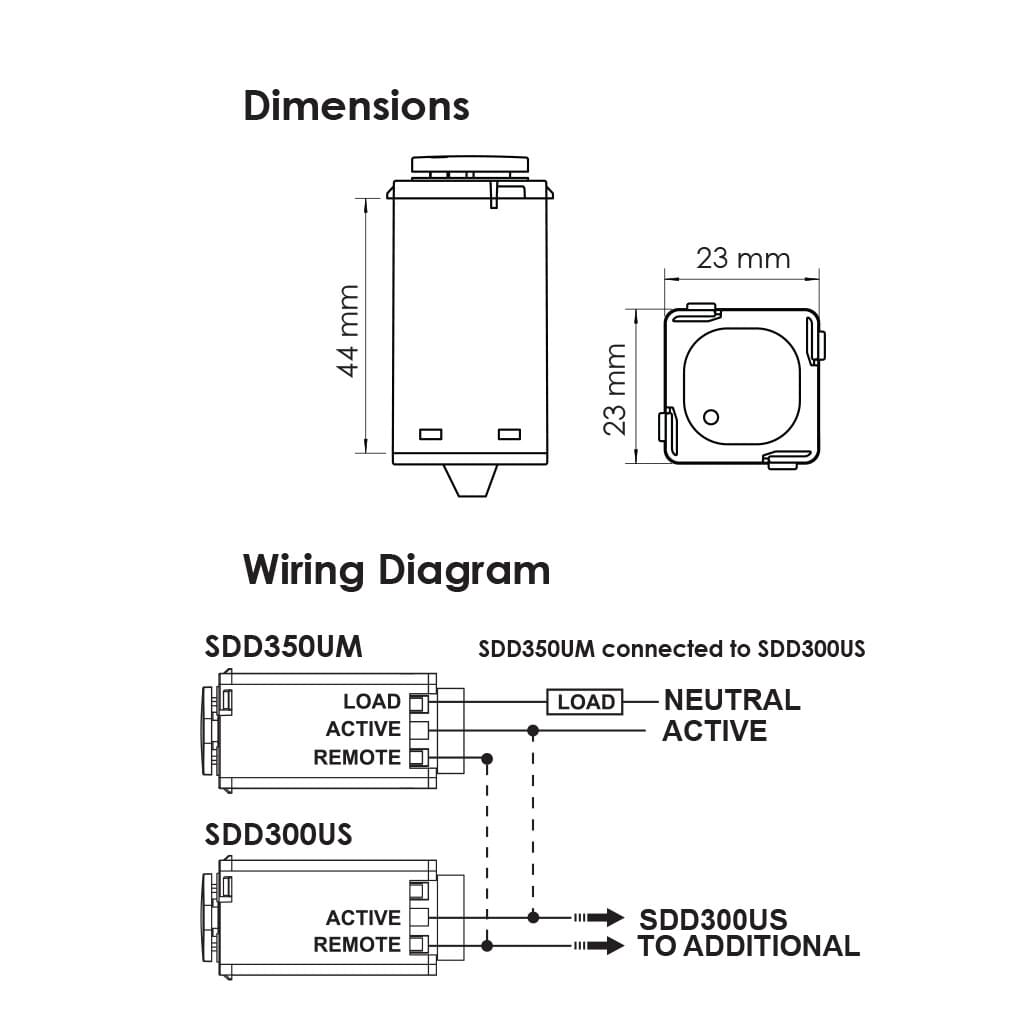

• Multiple-location dimming by connecting SDD350UM with any number of secondary dimmers SDD300US can be achieved.
  NOTE: the total length of the remote wire (>0.5mm²) used to interconnect all of the SDD300US should not exceed 50 metres.

• Fits most popular switch plates

• Overheating and over current protection, full short circuit protection

• Programmable minimum brightness level

• Compliant to AS/NZS60669.2.1

Performance

• Dimmable - YES
• Dimmer Type - Secondary switch dimming by SDD350UM only
