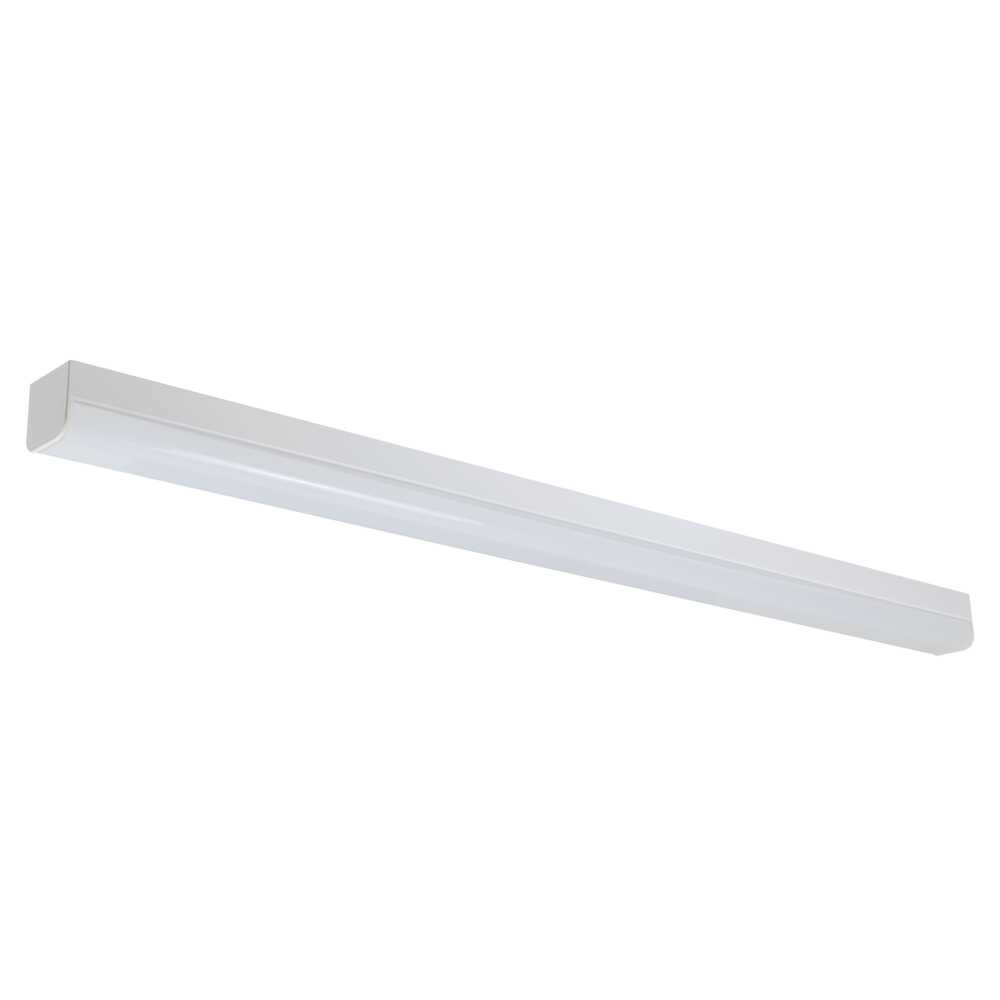

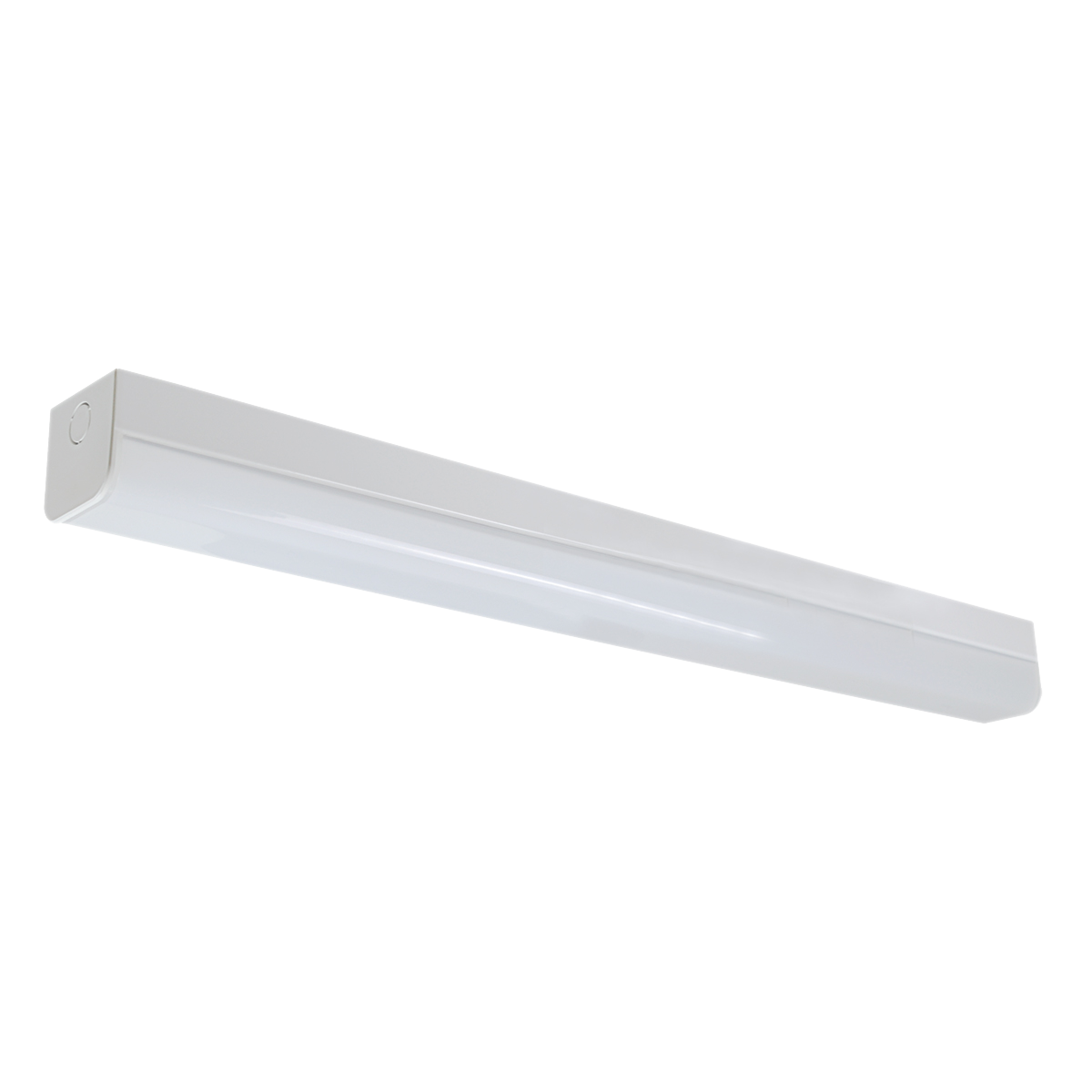

SAL Ecoline MKIII SL9732TC/DP3 10/50W LED Narrow Diffused Batten

Application

Conventional linear LED batten products for commercial service spaces

Design Specifications

• 65 mm narrow steel body

• Quality white powder coat finish with robust polycarbonate diffuser

• Large terminal block, easy installation

• Easy selectable colour temperature with an inbuilt DIP switch 3000K/4000K/5700K

• High efficiency (>125lm/W at 4000K) SMD LED, CRI >80, 120° beam distribution

• Integral constant current non-dimmable LED driver with selectable power,

• Lumens: 10/20W (2370/2600/2460), 20/40W (4600/5100/4860), 25/50W (6100/6700/6300)

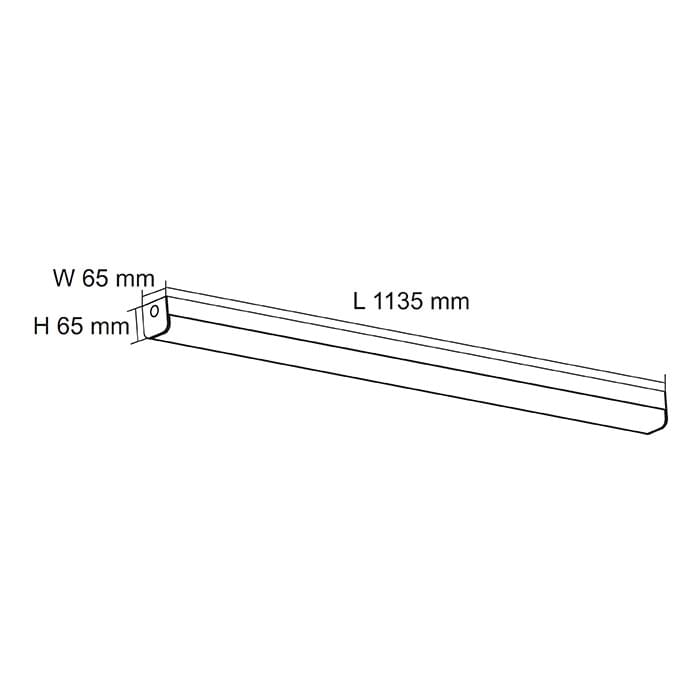

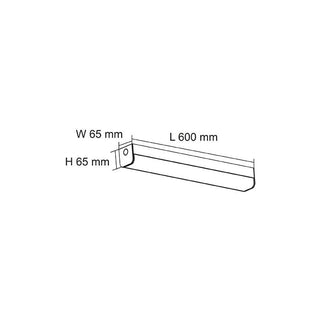

• Size: 10/20W 600(L) x 65(W) x 65(H), 20/40W 1135(L) x 65(W) x 65(H), 25/50W 1455(L) x 65(W) x 65(H)
• Optional Sensor - MICROWAVE
