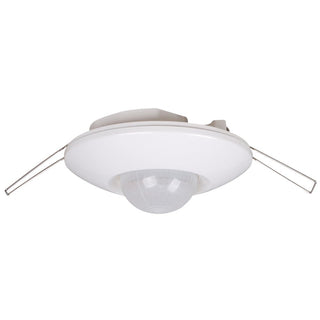

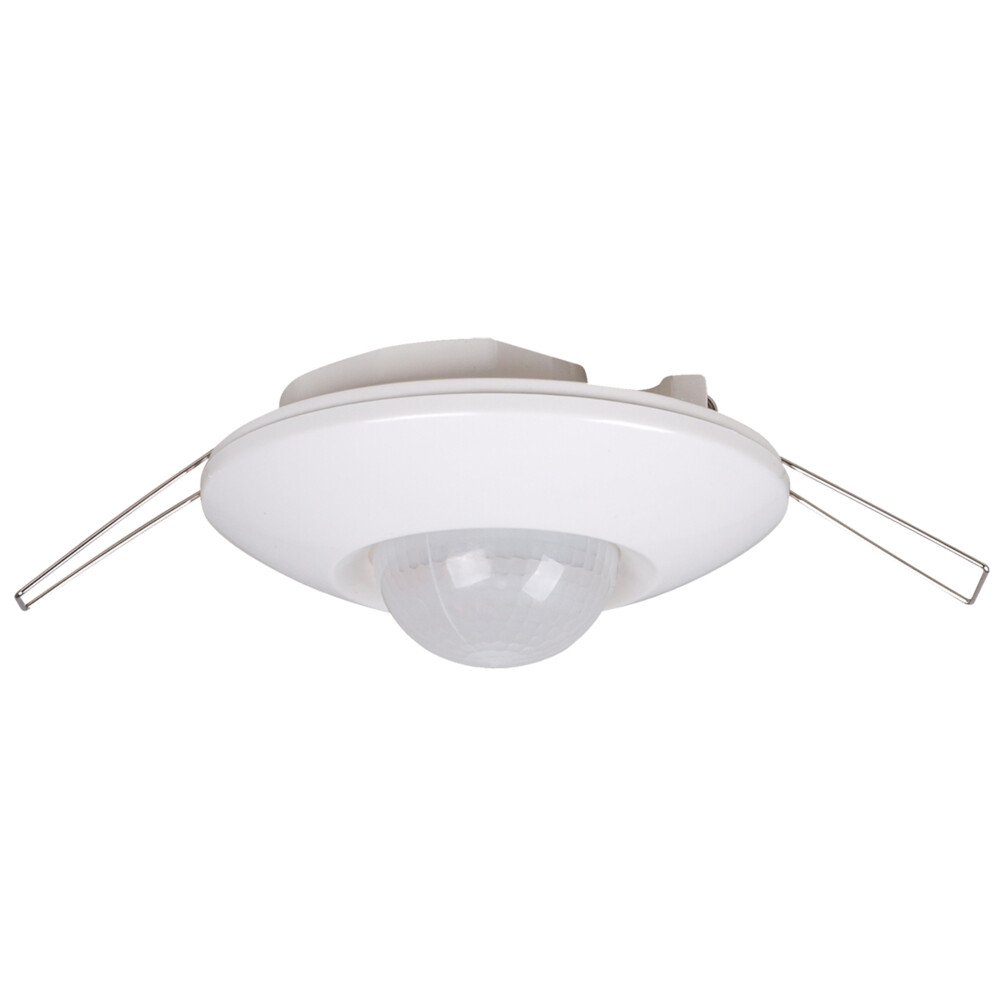

SAL IR SENSOR SMS803CD Infrared Sensor

Application

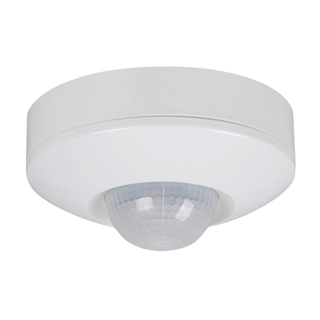

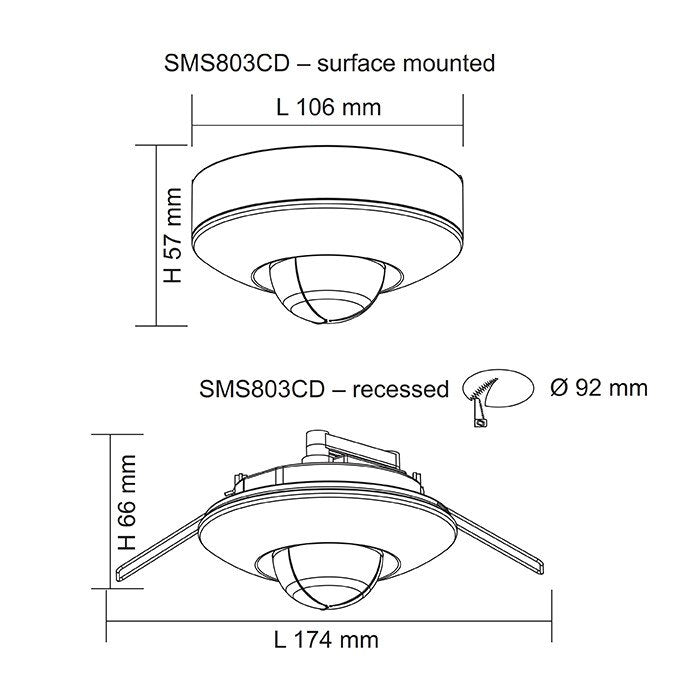

Recessed or surface mount infrared interior sensor

Design Specifications

• Switched power 2000W incandescent, 600W, Fluorescent, 300W LED
• Standby power <1W

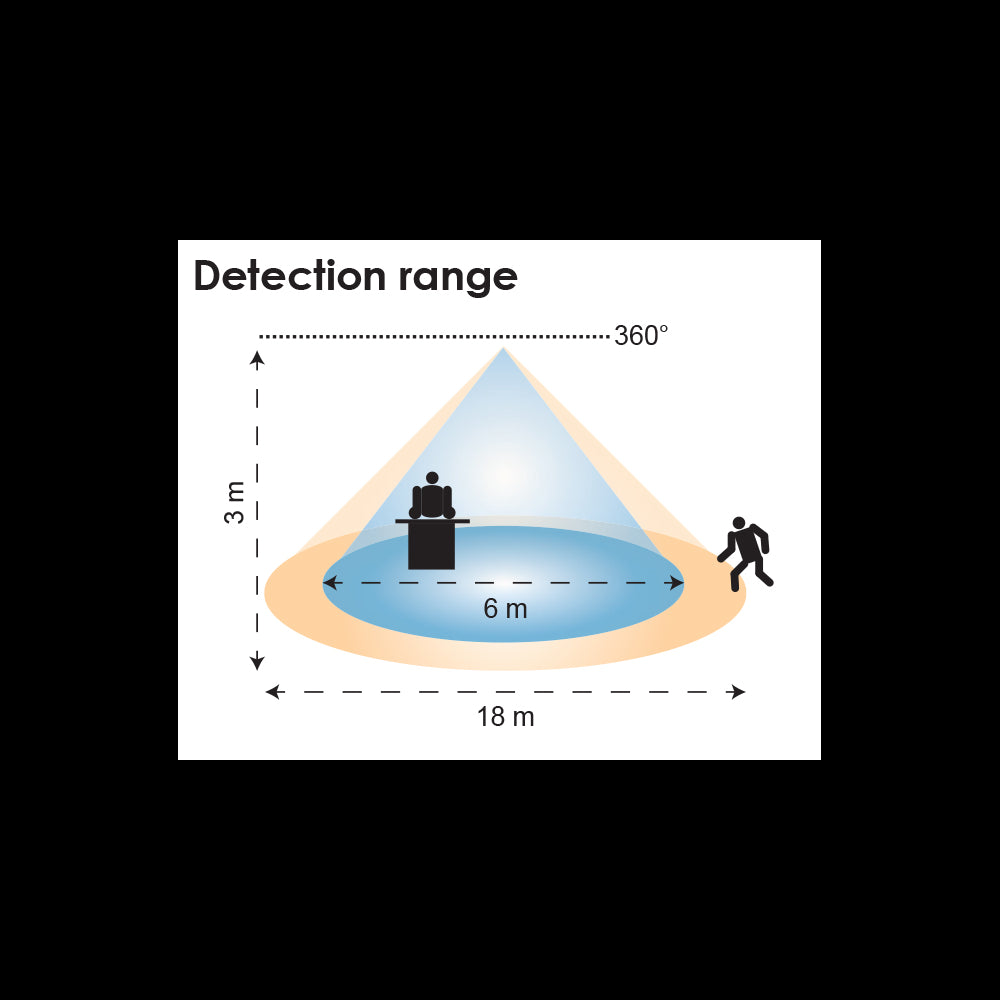

• Detection distance Max. 18 m in diameter

• Detection angle 360° , Duration Time / 10sec / 40min adjustable

• Dawn to dusk adjustable, mounting height Max. 3m

• Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode.

Performance
