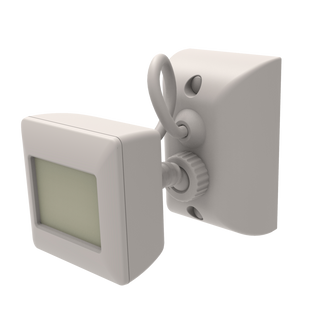

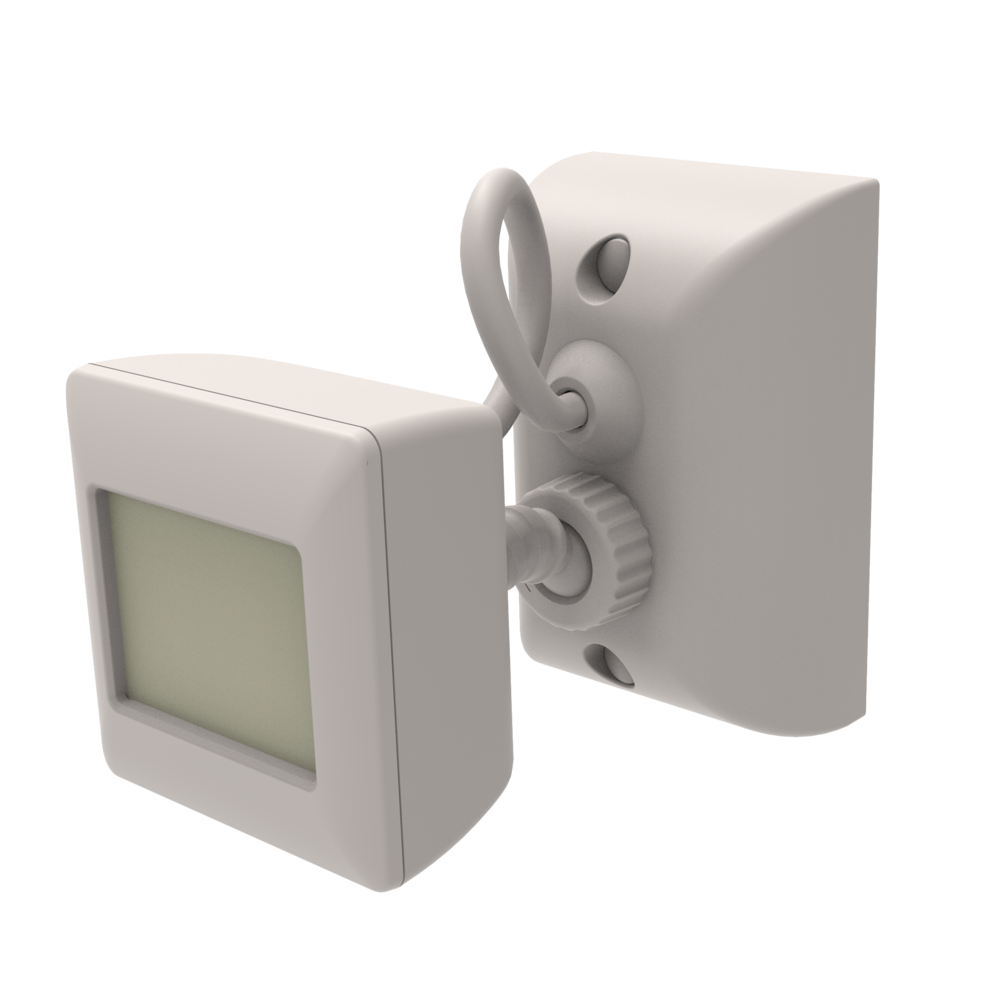

SAL Mantis Multifunction PIR Sensor SMS806WF

Application

Versatile residential and commercial sensor applications

Design Specifications

• Selectable dusk to dawn or motion sensor control

• Manual override function

• Sensitivity, time and light level adjustments, maximum loads (LED) 500W, (CFL) 1000W, (Halogen) 2000W

• Detection angle 110° up to 18 metres at a height of 1.8 - 2.5hm (Black model detection range 15 metres).

• PE cell function can be controlled manually or via the optional remote controller. The controller contains batteries and is designed for trade use only.

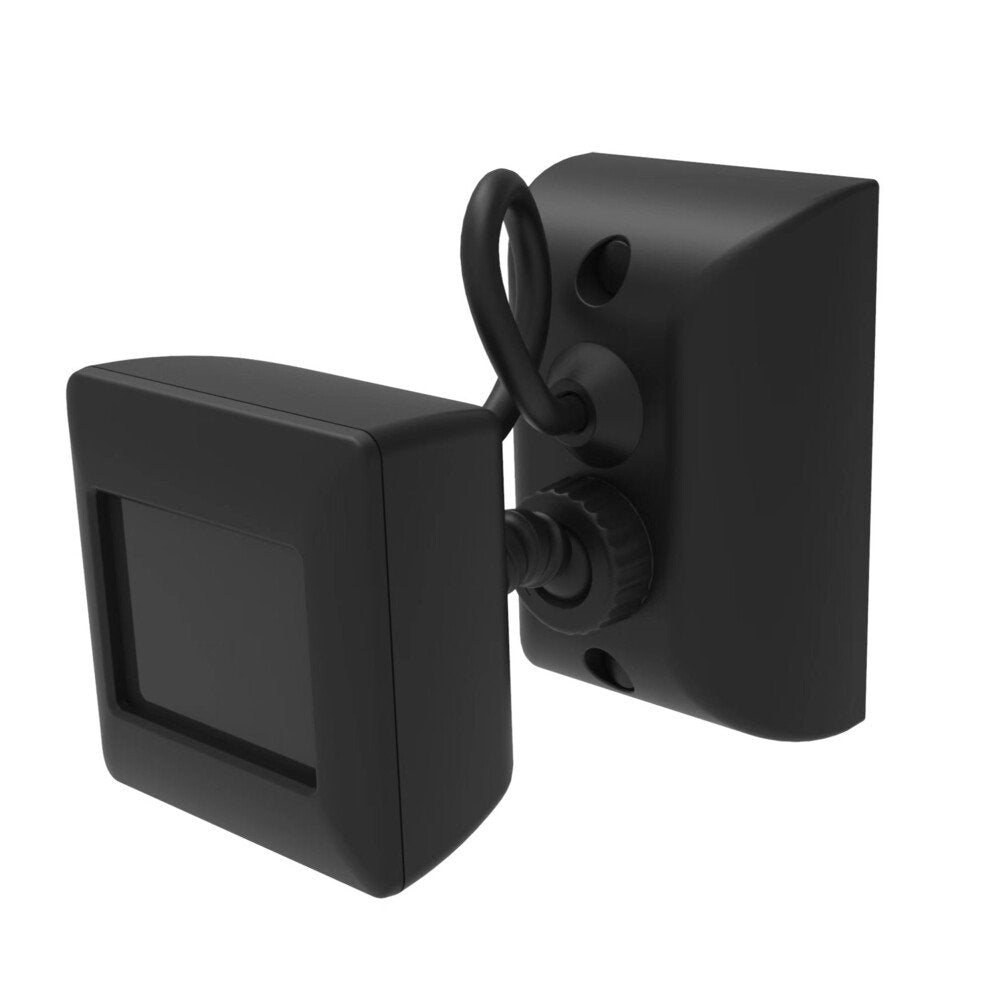

• 3 wire design for interior or exterior use in a choice of GREY or BLACK

Performance
