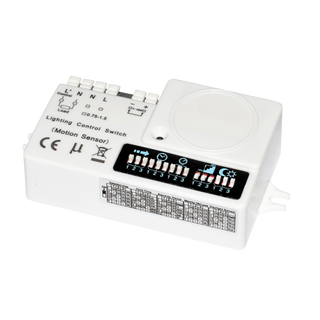

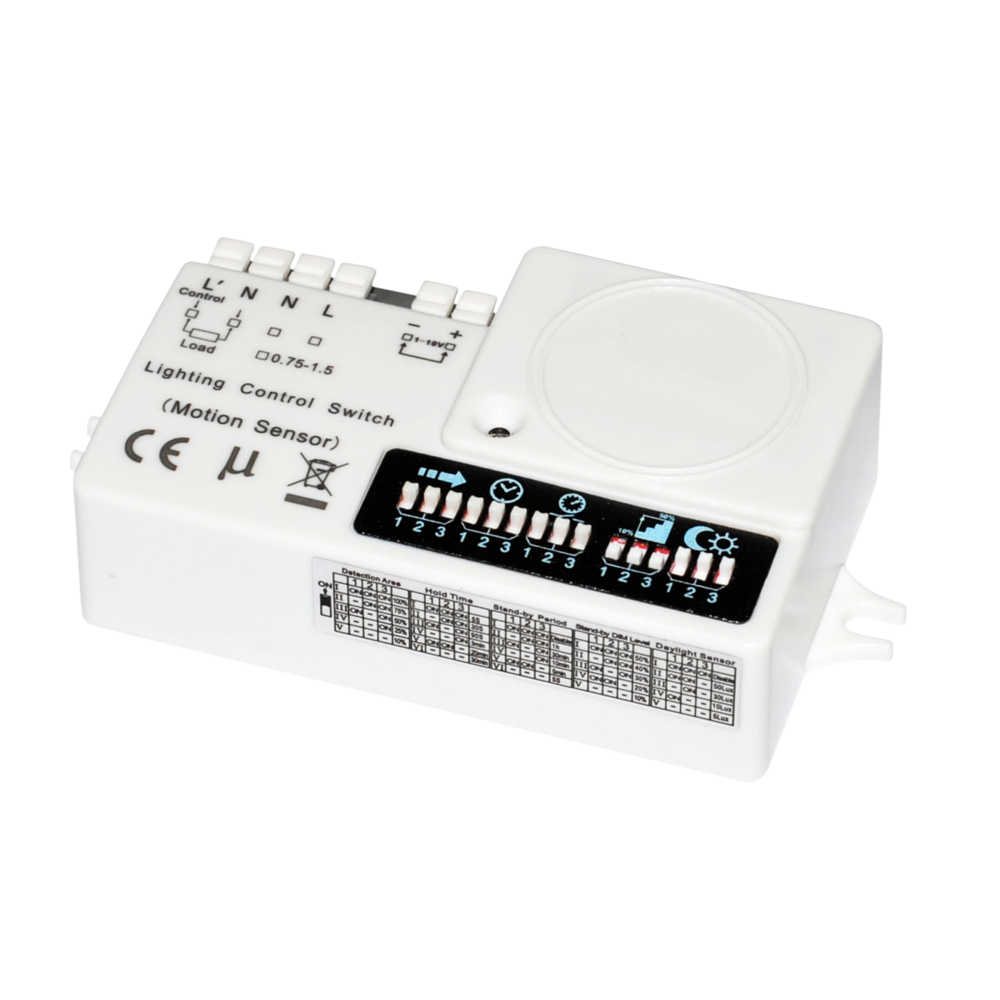

SAL MV Sensor SMS733

Application

Versatile residential and commercial sensor. SAL factory fitted sensor option for approved products only, not for individual sale

Design Specifications

• Operating voltage: 220~240Vac, 50/60Hz, rated load: 800W

• HF system: 5.8GHz ± 75MHz, ISM wave band, transmitting power: <0.5mW, power consumption: ≤1.0W (standby)

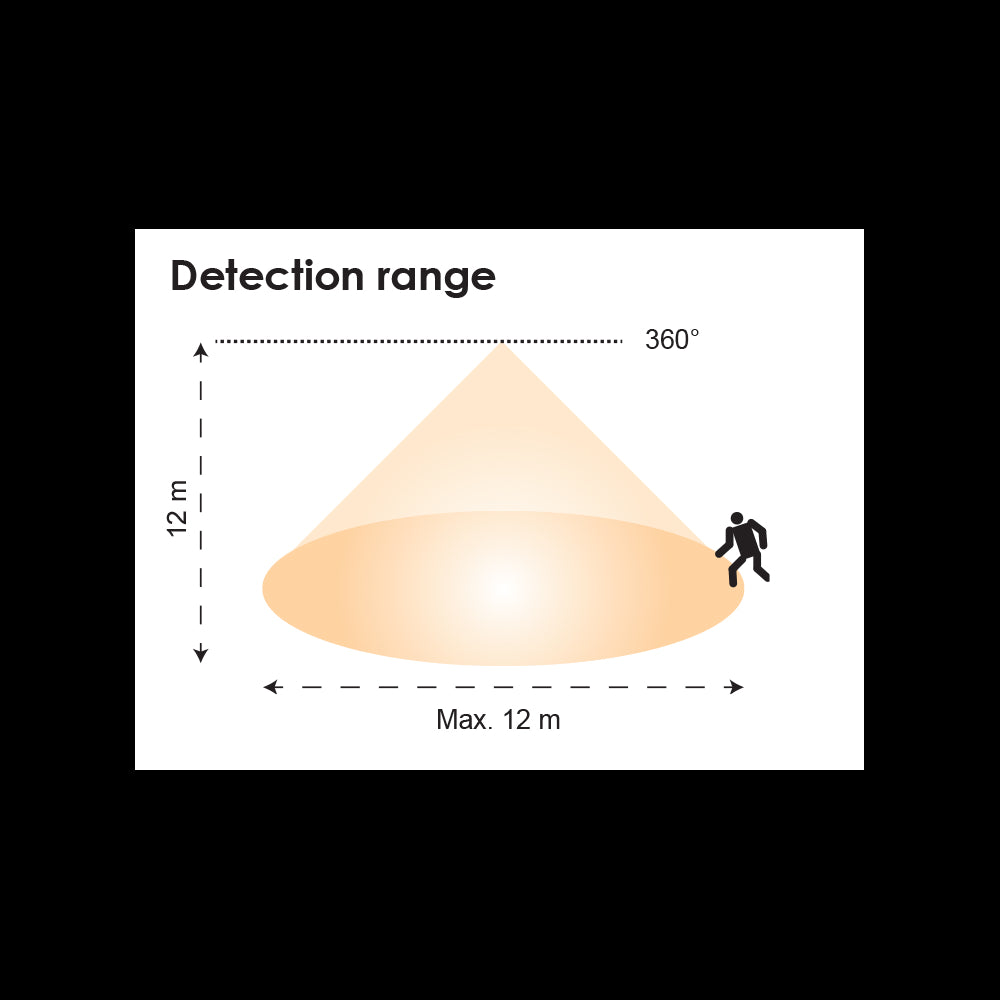

• Detection zone: Max.(D x H): 12m x 12m, detection sensitivity: 10%/25%/50%/75%/100%

• Hold time: 5s/30s/90s/3min/20mimn/30min, daylight sensor: 5lux/10lux/30lux/50lux/Disable

• Stand-by period: 5s/5min/10min/30min/1h/Disable, stand-by dimming level: 10%/20%/30%/40%/50%

• Mounting height: Max.12m, motion detection: 0.5~3m/s, detection angle: 150° (wall installation), 360° (ceiling installation)

Performance

• Dimmable - YES
• Dimmer Type - Step dimming
• In Built Sensor - YES
• Sensor Type - MICROWAVE
