SAL Panel S9784U TC/DP2 LED High Performance Panel

Application

Designed for commercial and office space lighting tasks.

Design Specifications

• UGR<19 performance

• Extruded aluminium profile with high efficiency opal diffuser, suitable for a range of installation types

• White powder coat finish

• High efficiency LED optics, CRI >90

• FlickerCONTROLLED, remote constant current non-dimmable LED driver, complete with flex and plug

• Selectable CCT 3000K/4000K/5700K

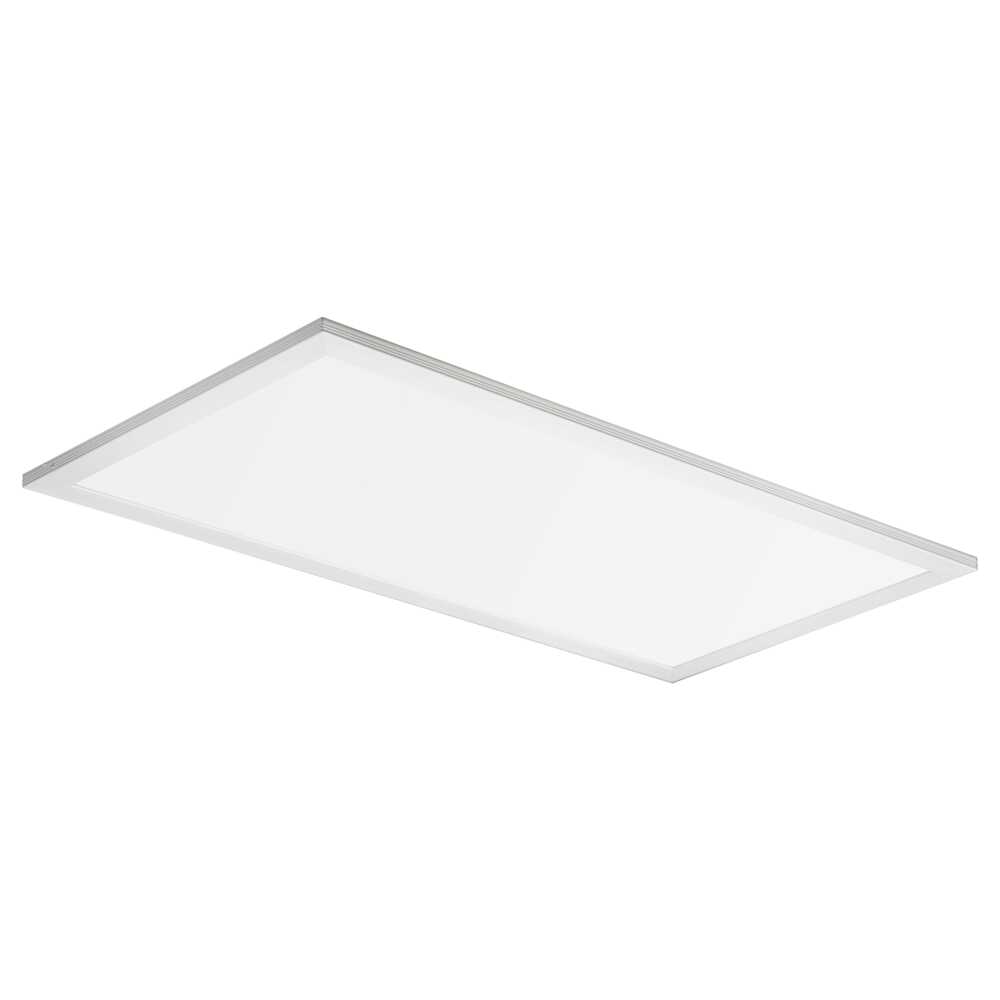

• S9784U306TC/DP2 12/24W. Lumens 2250/2500/2400. 595(L) x 295(W) x 32(H). 0.98Kg.

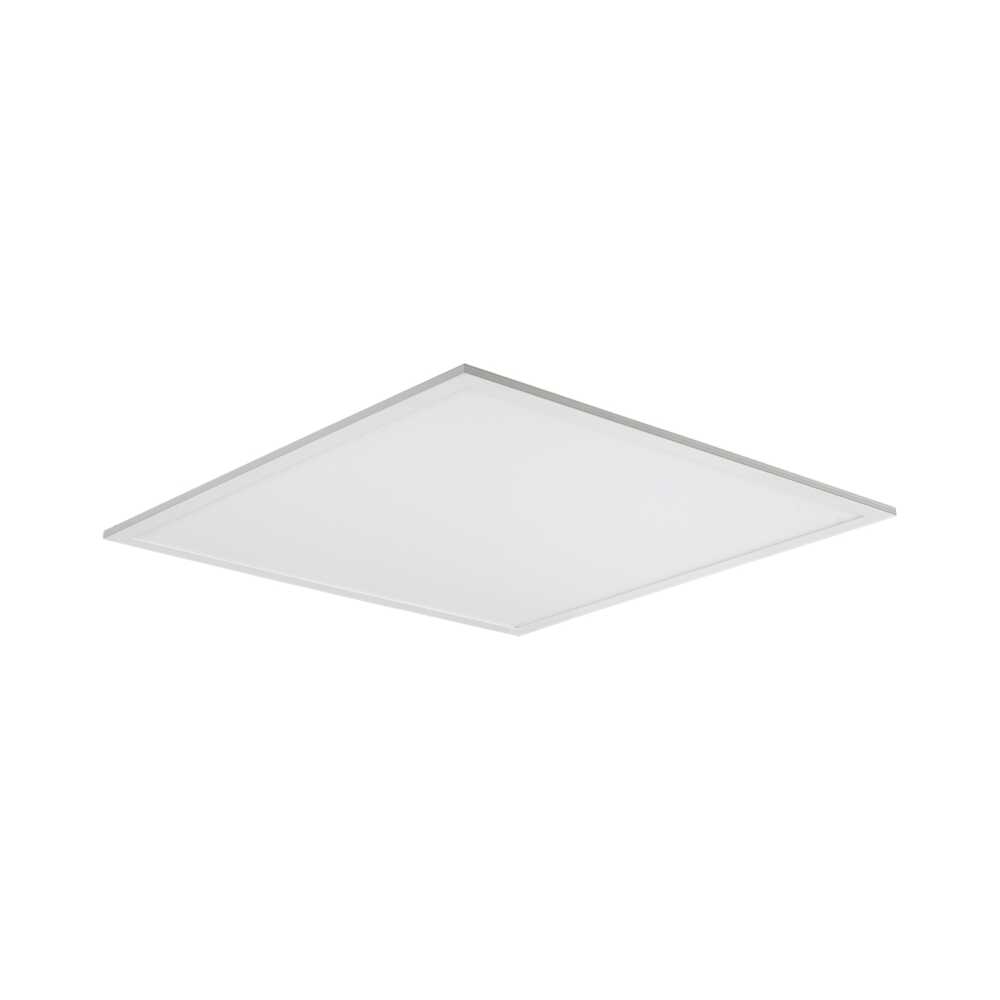

• S9784U606TC/DP2 23/36W. Lumens 3400/3700/3600. 595(L) x 595(W) x 32(H). 1.78Kg.

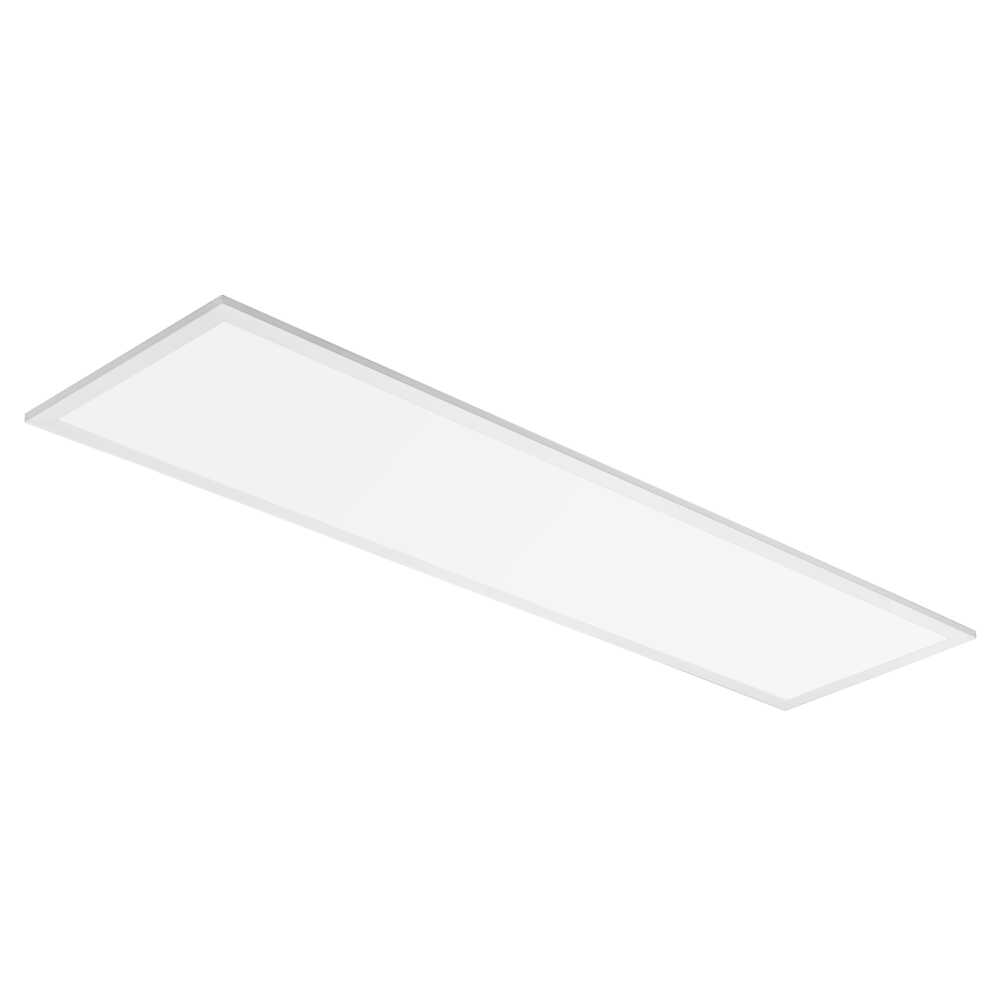

• S9784U312TC/DP2 23/36W. Lumens 3400/3700/3600. 1195(L) x 295(W) x 32(H). 1.78Kg.

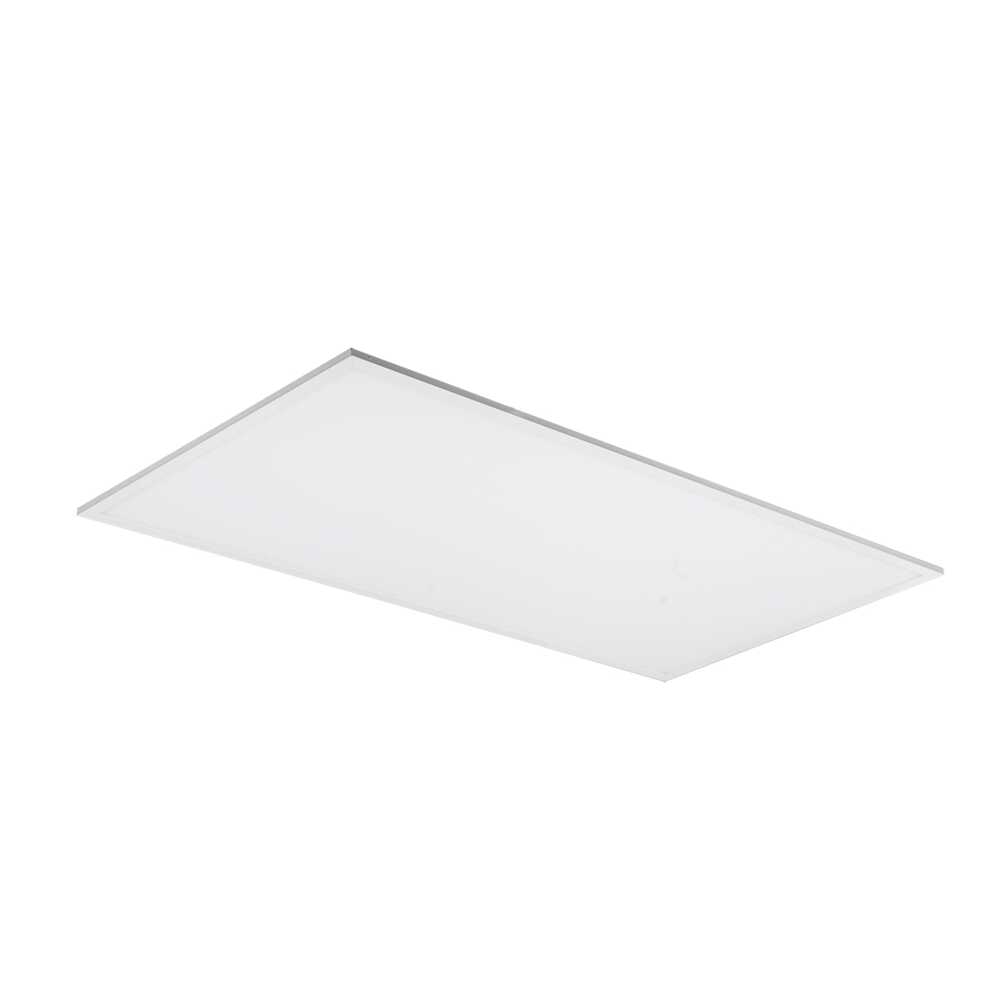

• S9784U612TC/DP2 30/50W. Lumens 4750/5250/5000. 1195(L) x 595(W) x 32(H). 3.7Kg.

Performance

• Dimmable - OPTIONAL
