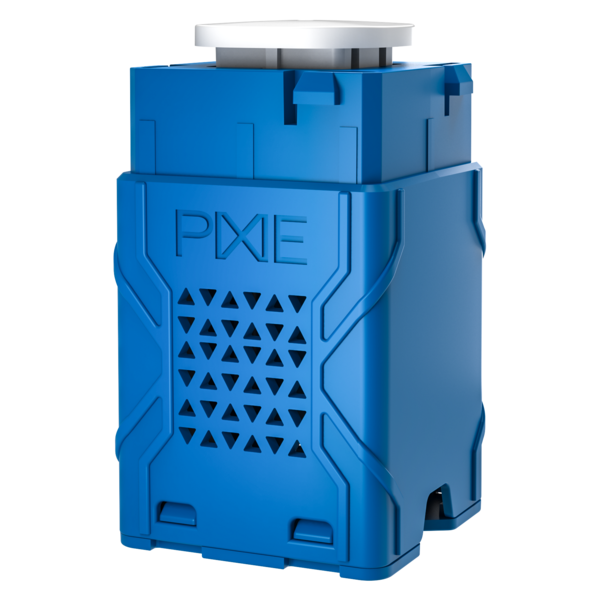

SAL PIXIE SMART DIMMER SDD300BTAM G3

Application

Smart digital lighting control for residential and commercial spaces, with soft ON/OFF control.

Design Specifications

• Digital push button control, with three (3) complimentary key caps provided to suit most switch plates

• When used as a digital device, push on/off, hold to dim up or down, memory function, selectable minimum dim level

• When used with the SAL PIXIE or PIXIE PLUS app, set a scene, group devices, set a schedule, dim, switch, set a timer

• With the inclusion of the SAL PIXIE Gateway and the internet, you can control your PIXIE devices from anywhere in the world

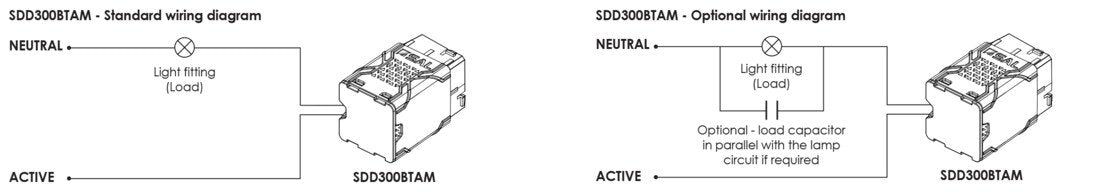

• Overheating, overload and full short circuit protection, maximum load 300 watt (resistive), 250VA (capacitive LED), minimum load 2 watt* . See installation sheet for multi-gang de-rating values.

• SMART LED indicator, Trailing edge phase cutting dimming, Fits most branded switch plates. 1 to 6 gang, complies to AS/NZS 60669.2.1, typical wireless range 15 metres
