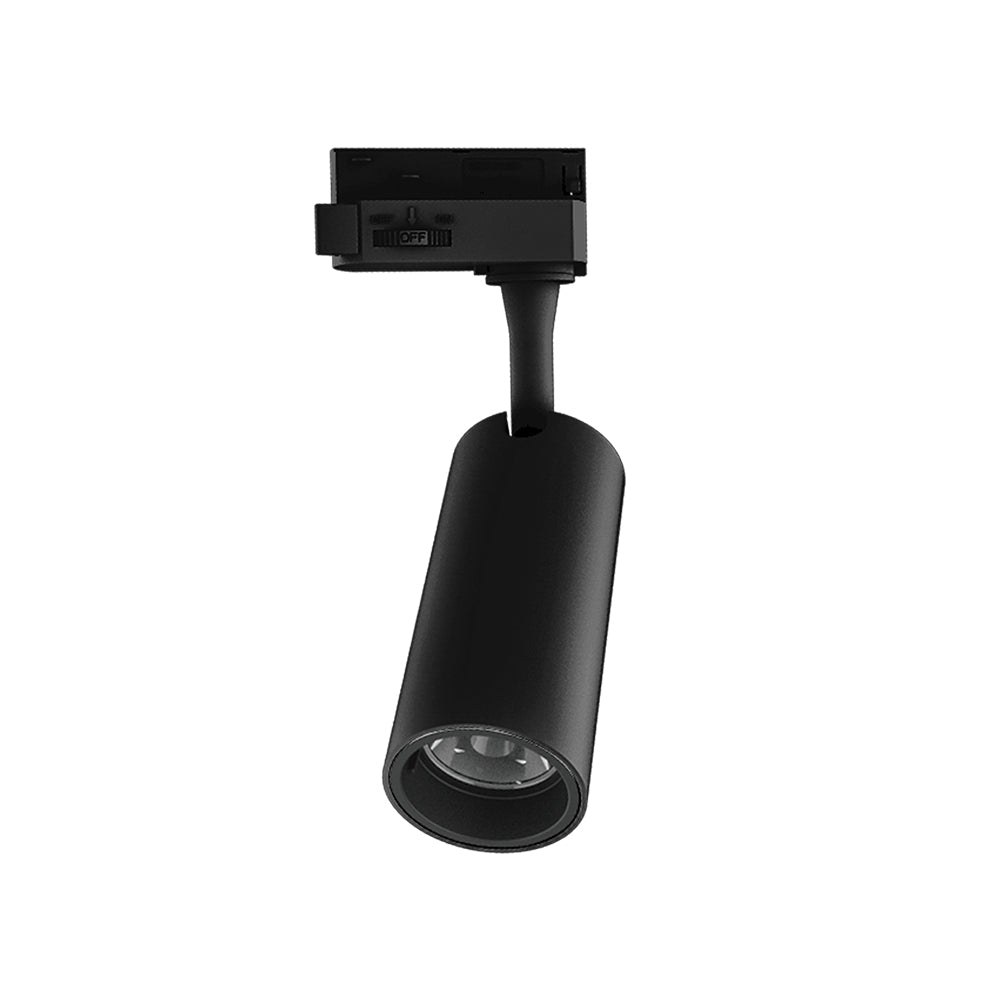

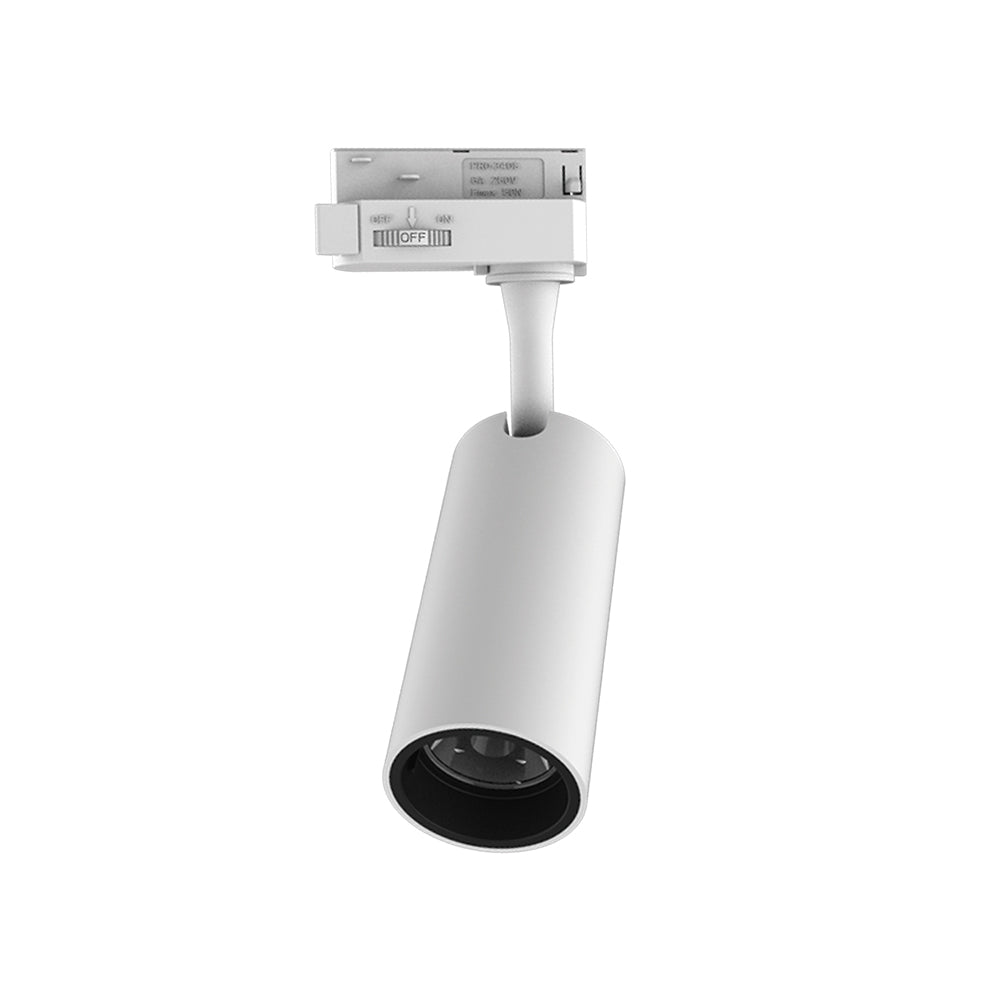

Step Lighting AT1108 LED track mounted adjustable spotlights
- Unit price
- / per
Step Lighting AT1108 LED track mounted adjustable spotlights
- Unit price
- / per
Description
Specifications
Mechanical
Adjustability | Fixed |
---|---|
Body Material | Aluminium |
Diffuser Material | Glass |
Product Finish | Powdercoated |
Fitting Colour | Black |
Installation Type | Surface mount |
IP Rating | IP20 |
Electrical
Electrical Rating | Class I |
---|---|
Input Frequency | 50 Hz |
Input voltage | 230Vac |
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Switch Type | Inline |
System Max Wattage | 12 W |
Working Temp Range | -20 to 40 °C |
Lamp
Macadam Steps (SDCM) | 3-step MacAdam Ellipse |
---|---|
Beam Angle | 50 ° |
CCT Configuration | Single |
Colour Rendering Index (CRI) | >90 |
LED Type | Diffused |
Number of Lamps | 1 |
LED Lifetime
LED Lifetime | 35000 hrs |
---|---|
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. |
Colour temperature
CCT | 4000 K |
---|---|
CCT Colour | Cool White |
Luminaire Lumens | 725 lm |
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. |
Driver
Dimmable | No |
---|---|
Driver Included | Yes |
Integrated Driver | Yes |
Driver Type | Fixed output |
Compliance
Standards |
|
---|
Warranty
Domestic Use Warranty | 3 RTB (Total 3 Years) |
---|---|
VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. |
