Trend Candela 7W Surface Mounted Tri-colour Downlight

• Surface mounted COB LED fixed downlight designed with a compact body and wide collimating lens
• Manufactured with an aluminium body and finished with corrosion resistant powder coating
• An ideal lighting solution for residential and commercial applications
• Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
• Supplied with an integral flicker free Leading & Trailing Edge driver

Physical Characteristics

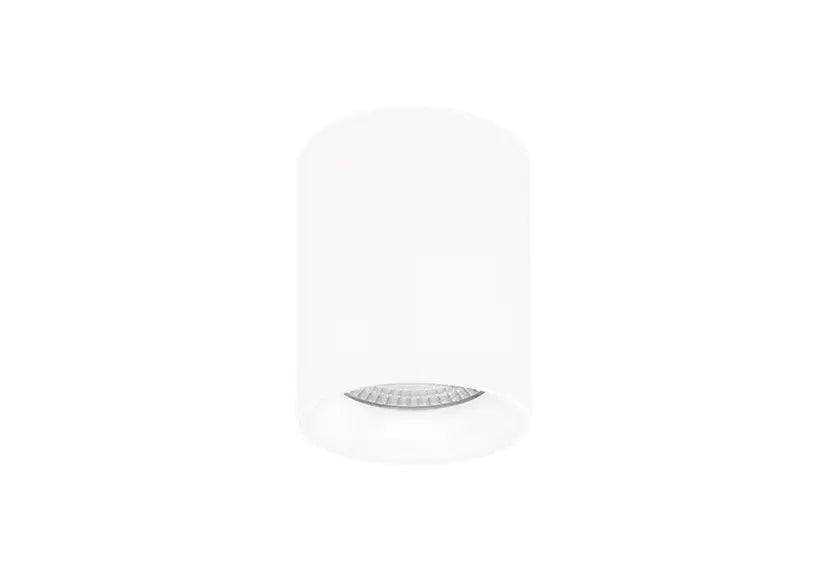

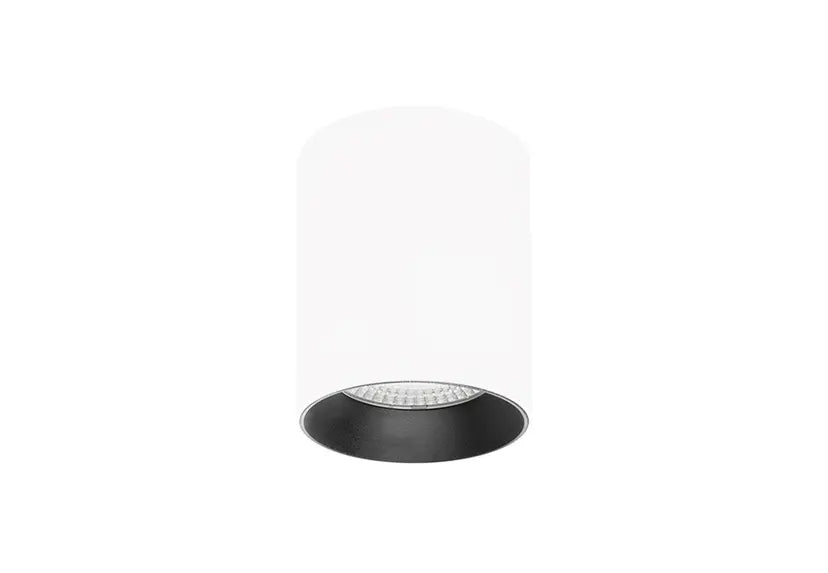

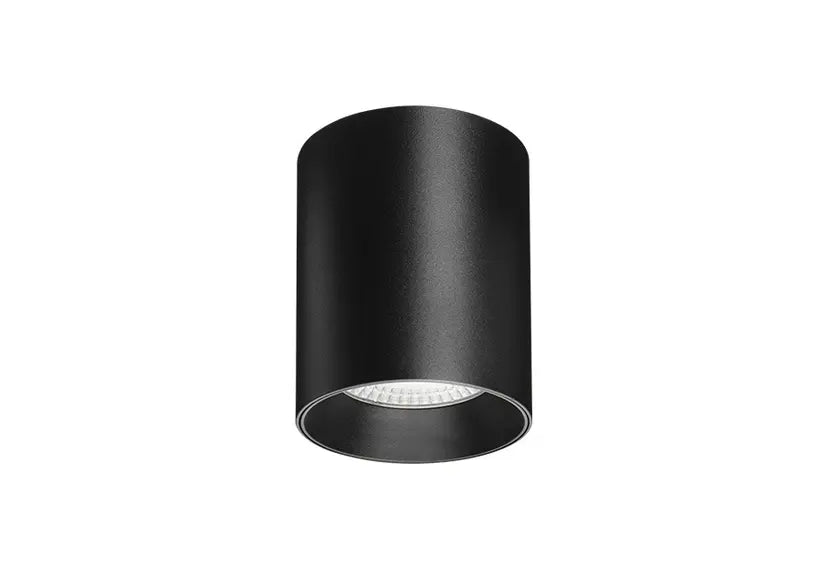

Trim Colour
Black|White
Insert Colour
Black|White
Dimensions
⌀95 X 110 (H) mm
Weight
583 g

General Characteristics
Family
Trend For Trade,Candela
Surface
Ceiling
Mounting
Surface Mounted
Ingress Protection
IP54
Warranty
3 Years

Technical Characteristics
LED Power
7W
LED Type
COB
LED Lumen Output*
830 lm
Efficacy*
Up to 94 lm/W
CCT Technology
Tri-colour Selectable
Colour Temperature
3000K, 4000K, 5700K
Colour Technology
CRI 90+ Standard
Colour Deviation
SDCM ≤ 3
Lifetime
50,000 hours (L70)
Beam Angle
Wide
System Power
8.3W Typical
Driver Model
Trend 150005-200 (L&T)
Input
200-240V AC 50 Hz
Output
30-42V DC 200mA
Power Factor
>0.95
Protection
OVP,OTP,OCP,SCP,OPP
Driver
Leading & Trailing Edge
