Trend MAXILED XRD10 10W Recessed LED Downlight

• Recessed adjustable LED downlight with pull-out gimble design in compact size
• Featured with 355° rotation and 90° tilting capabilities, allowing for directional adjustment in a variety of lighting applications
• Configurable with optional coloured inserts, enabling seamless integration with any design aesthetic
• CRI 90+ available in 3000K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

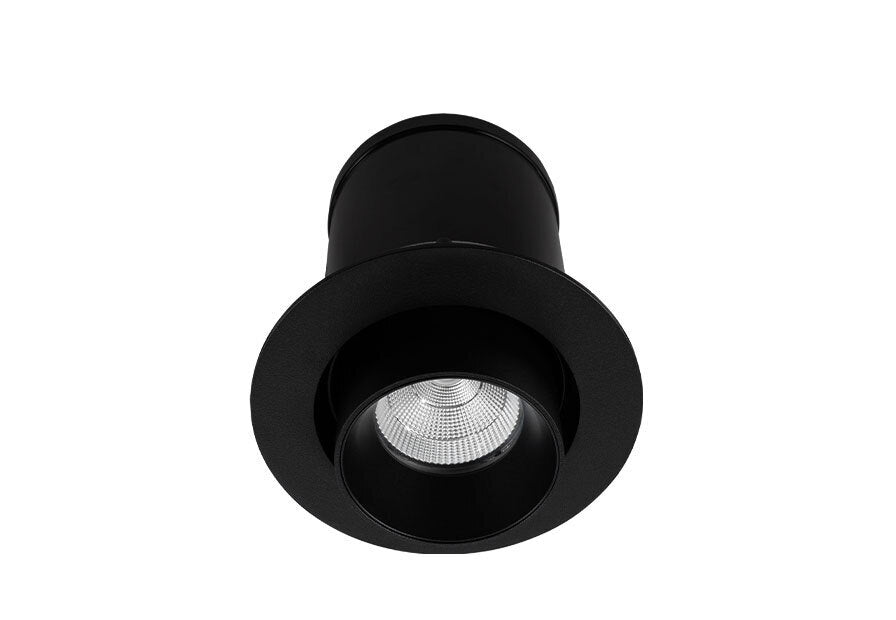

Trim Colour：White | Black

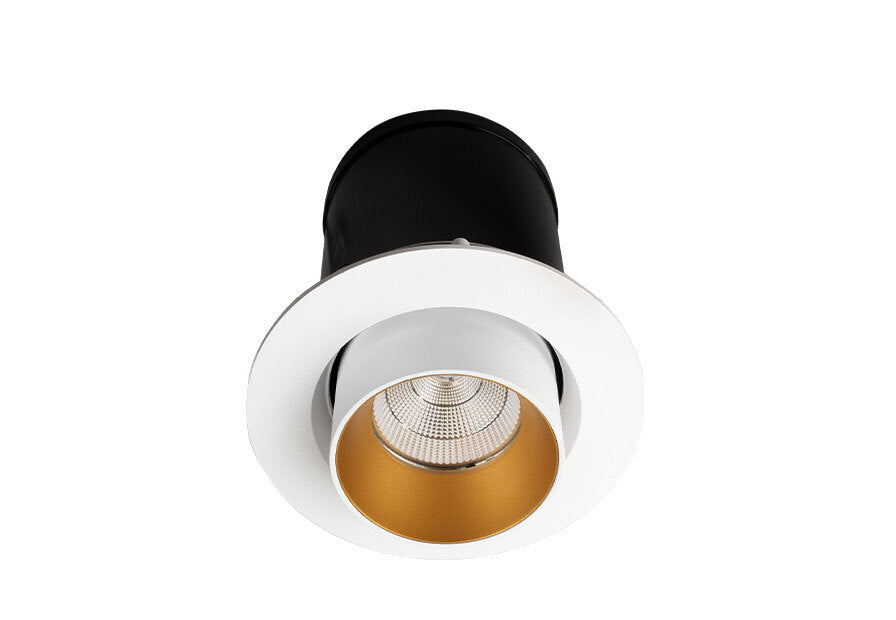

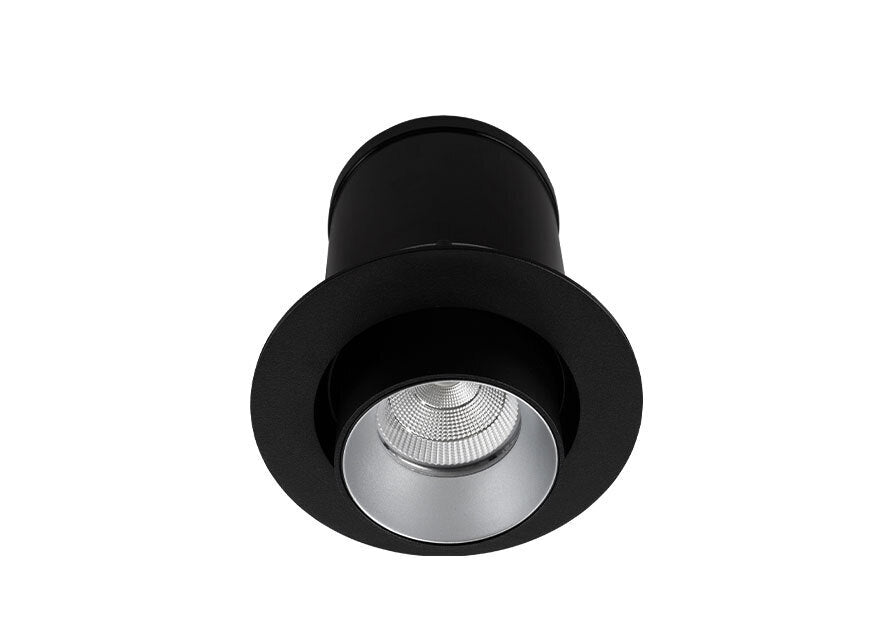

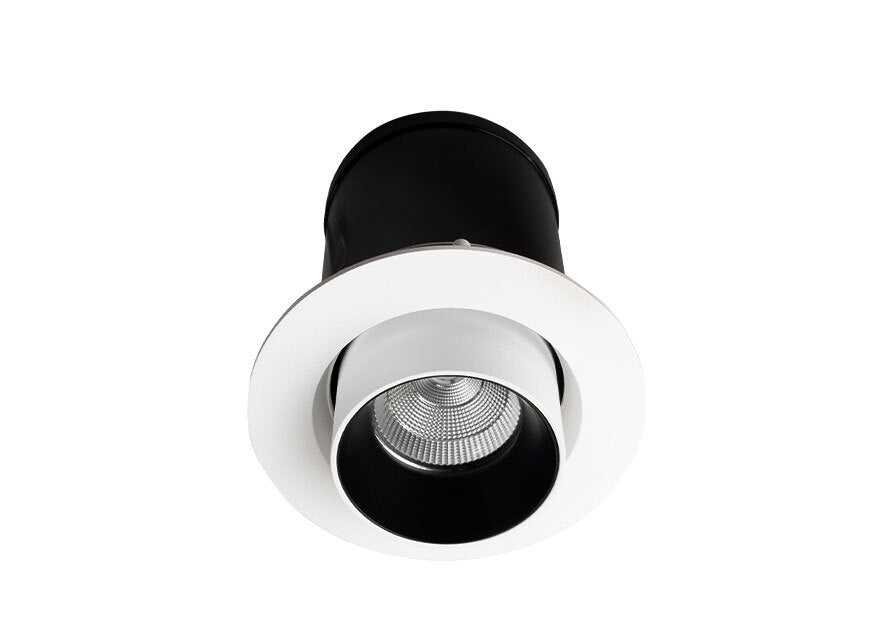

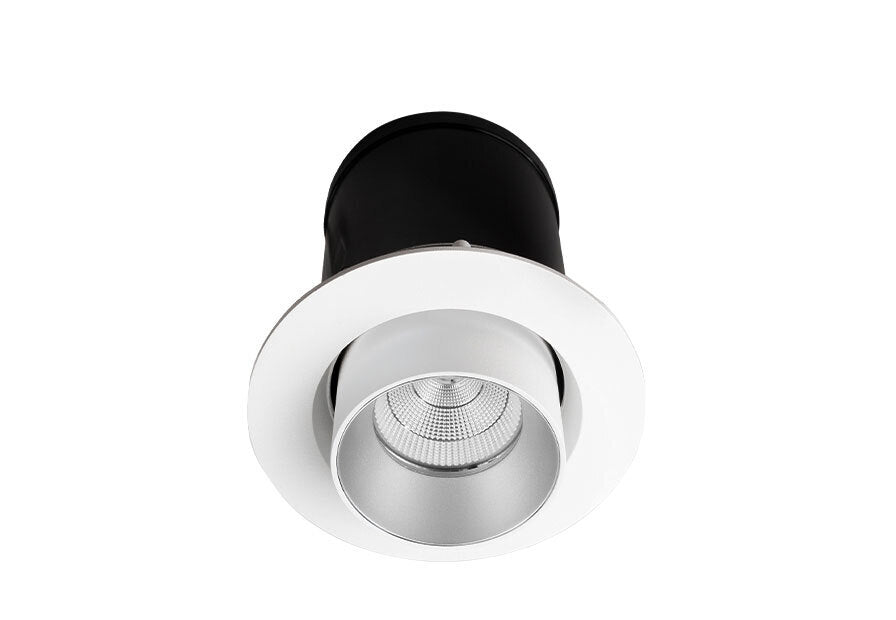

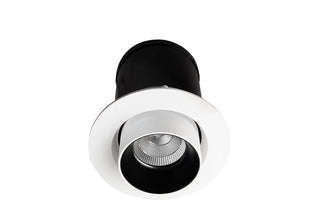

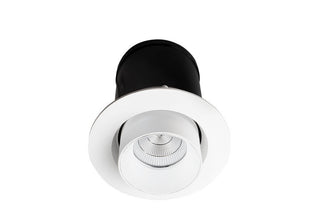

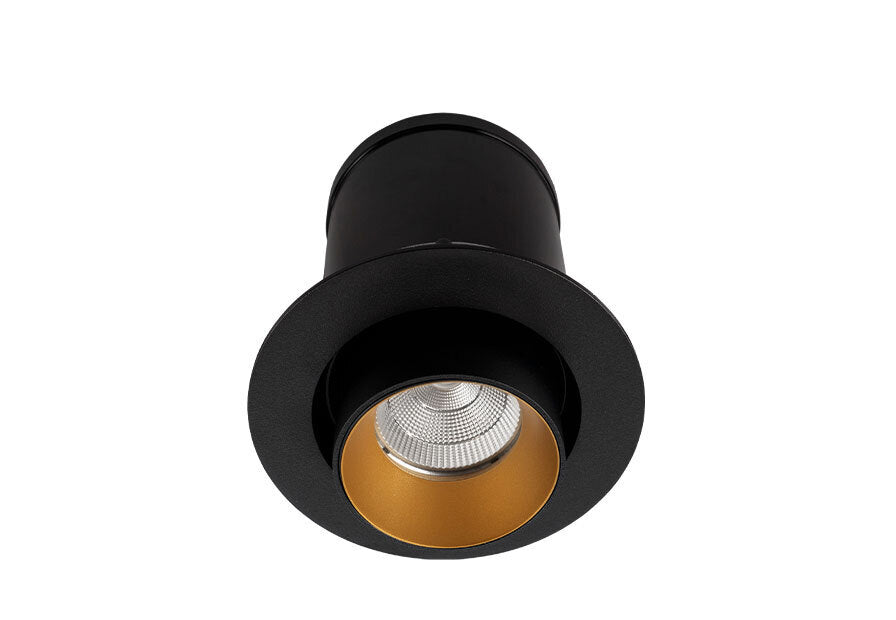

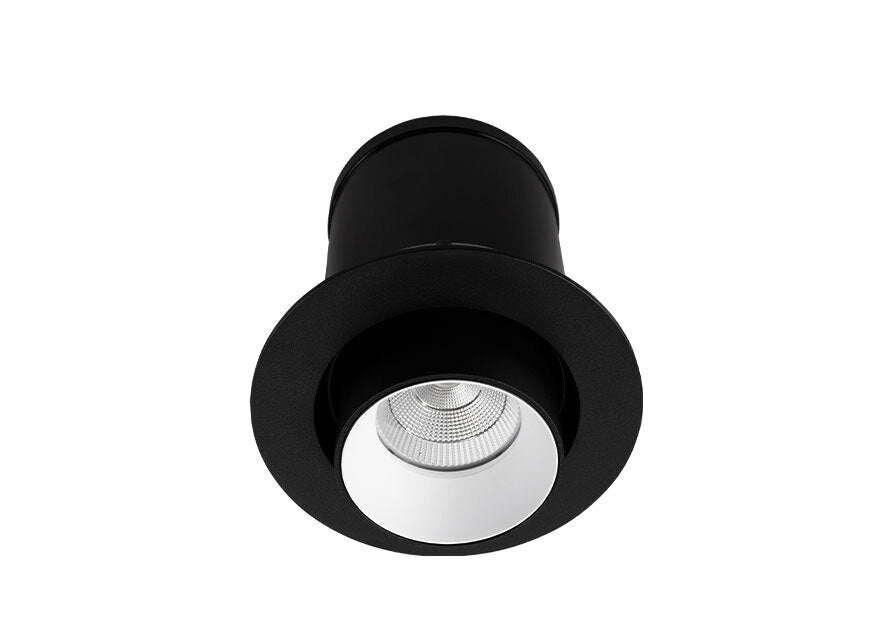

Insert Colour：White | Black | Silver | Gold
Dimensions：⌀107 X 117 (H) mm
Weight：550 g
Tilt Angle：90°
Rotation：355°
Cutout：Circle - 89 mm
Spring Height：42 mm

General Characteristics

Family：Midiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP20

Technical Characteristics*

LED Power：10W
LED Type：COB
LED Lumen Output*：1778 lm
Luminous Flux*：768 lm
Efficacy*：65.08 lm/W
Colour Temperature：3000K | 4000K
Colour Technology：CRI 90+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L80)
Beam Ange：Medium
System Power：11.8W Typical
Driver Model：Trend 150015-500 (L&T)
Input：180-265V AC 50/60 Hz
Output：16-20V DC 500mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Leading & Trailing Edge|DALI
