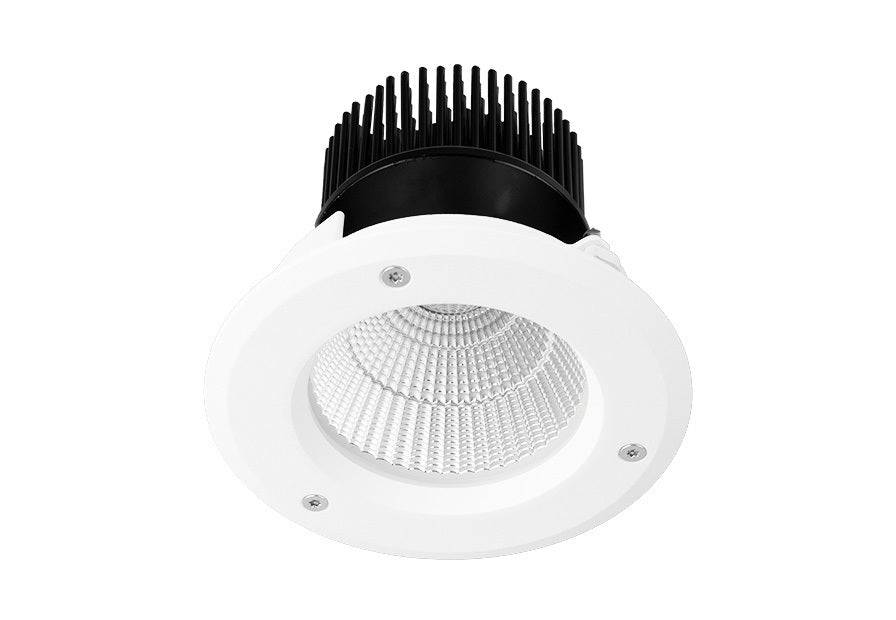

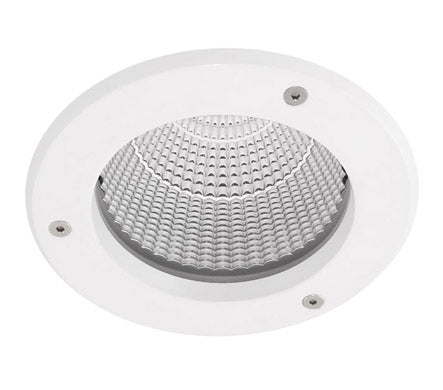

Trend MINILED XAL25 25W LED Downlight

by Trend lighting
SKU: XAL253-WB-W
$404.00
Trend MINILED XAL25 25W LED Downlight
Trend MINILED XAL25 25W LED Downlight
Trend MINILED XAL25 25W LED Downlight

Trend MINILED XAL25 25W LED Downlight

by Trend lighting
SKU: XAL253-WB-W
$404.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

Description

  • Recessed LED downlight with 6 mm polycarbonate front lens and recessed security screws for tamper proof anti-ligature finish
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver

Physical Characteristics

Trim Colour：White
Dimensions：⌀150 X 125 (H) mm
Weight：505 g
Cutout：Circle - 130 mm
Spring Height：20 mm

General Characteristics

Family：Midiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP65
Impact Resistance：IK10

Technical Characteristics*

LED Power：25W
LED Type：COB
LED Lumen Output*：2955 lm
Luminous Flux*：2441 lm
Efficacy*：91.08 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation：SDCM ≤ 2
Lifetime：50,000 hours (L80)
Beam Angle：Wide|Narrow|Medium
System Power：26.8W Typical
Driver Model：Trend 150020-700 (L&T)
Input：180-265V AC 50/60 Hz
Output：30-40V DC 700mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Leading & Trailing Edge|DALI
